21

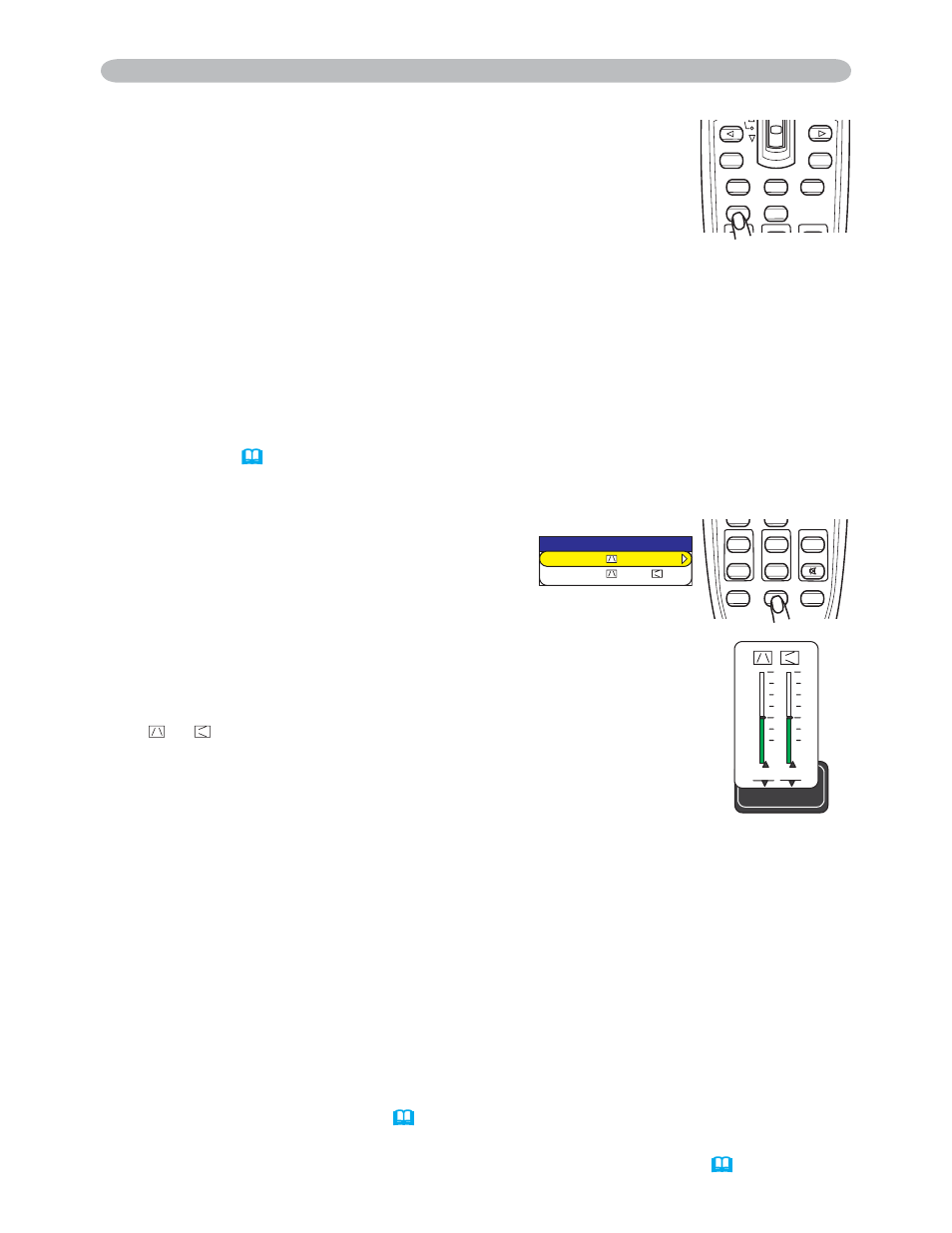

Adjusting the position
1. Press the POSITION button on the remote control.
The “POSITION” indication will appear on the screen.
2. 8VHWKHFXUVRUEXWWRQVŸźŻŹWRDGMXVWWKHSLFWXUH
position.
When you want to reset the operation, press the RESET button on the remote
control during the operation.
To complete this operation, press the POSITION button again. Even if you do
not do anything, the dialog will automatically disappear after a few seconds.
ƔWhen this function is performed on a video signal, s-video signal or component video
signal, some image such as an extra-line may appear at outside of the picture.
ƔWhen this function is performed on a video signal, s-video signal, or component video signal
of 525i (480i) or 625i (576i), the range of this adjustment depends on the OVER SCAN in
IMAGE menu
(
30)
setting. It is not possible to adjust when the OVER SCAN is set to 10.
ESC MENU RESET
POSITION AUTO
MAGNIFY MY BUTTON VOLUME
PUSH ENTER
PAGE UP PAGE DOWN
Operating
Correcting the keystone distortions
1. Press the KEYSTONE button on the
remote control. A dialog will appear on the
screen to aid you in correcting the distortion.
2. Use the cursor buttons Ÿ/ź to select AUTO or
MANUAL operation, and press the button Ź to perform the following.
1) AUTO executes automatic vertical keystone correction.
2) Manual displays a dialog for keystone correction.
8VHWKHFXUVRUEXWWRQVŻŹWRVHOHFWWKHGLUHFWLRQWRFRUUHFW
( or ) then use the buttons
ŸźIRUDGMXVWPHQW
To close the dialog and complete this operation, press the
KEYSTONE button again. Even if you don’t do anything,
the dialog will automatically disappear after a few seconds.
Ɣ7KHDGMXVWDEOHUDQJHRIWKLVIXQFWLRQZLOOYDU\DPRQJLQSXWV)RUVRPHLQSXW
this function may not work well.
Ɣ:KHQ9,19(57RU+ 9,19(57LVVHOHFWHGWRWKH0,5525LWHPLQWKH
SETUP menu, if the projector screen is inclined or angled downward, this
function may not work correctly.
Ɣ:KHQWKH]RRPDGMXVWPHQWLVVHWWRWKH7(/(WHOHSKRWRIRFXVWKLVIXQFWLRQ
may be excessive. This function should be used when the zoom adjustment is
set to the full WIDE (wide-angle focus) whenever possible.
ƔWhen the projector is placed on the level (about ±3°), this function may not work.
ƔWhen the projector is inclined to near ±30 degree or over, this function may not
work well.
ƔWhen the vertical lens shift is not set fully upward (not set fully downward for the
optional lens type FL-601 only (
46)
), this function may not work well.
ƔWhen the horizontal lens shift is not set to the center, this function may not work well.
ƔThis function will be unavailable when Transition Detector is on
(
52).
MAGNIFY MY BUTTON VOLUME
ON 1
MUTE
OFF 2
FREEZE KEYSTONE SEARCH
-';5610'
#761':'%76'
/#07#.
-';5610'
