Figure 10-4. D-sub 15 pin Connector
A–3
t 3M 1997
3M Multimedia Projector MP8660
A–4. Physical Dimensions
The MP8660 projector has the following physical dimensions:
28.1 cm
(11.06 in.)
35.8 cm
(14.1 in.)
49.1 cm
(19.33 in.)
25.6 cm
(10.08 in.) 4.95 cm
(1.95 in.)
11 cm
(4.33 in.)
13.2 cm
(5.2 in.)
5.45 cm
(2.15 in.)
6.55 cm
(2.58 in.)

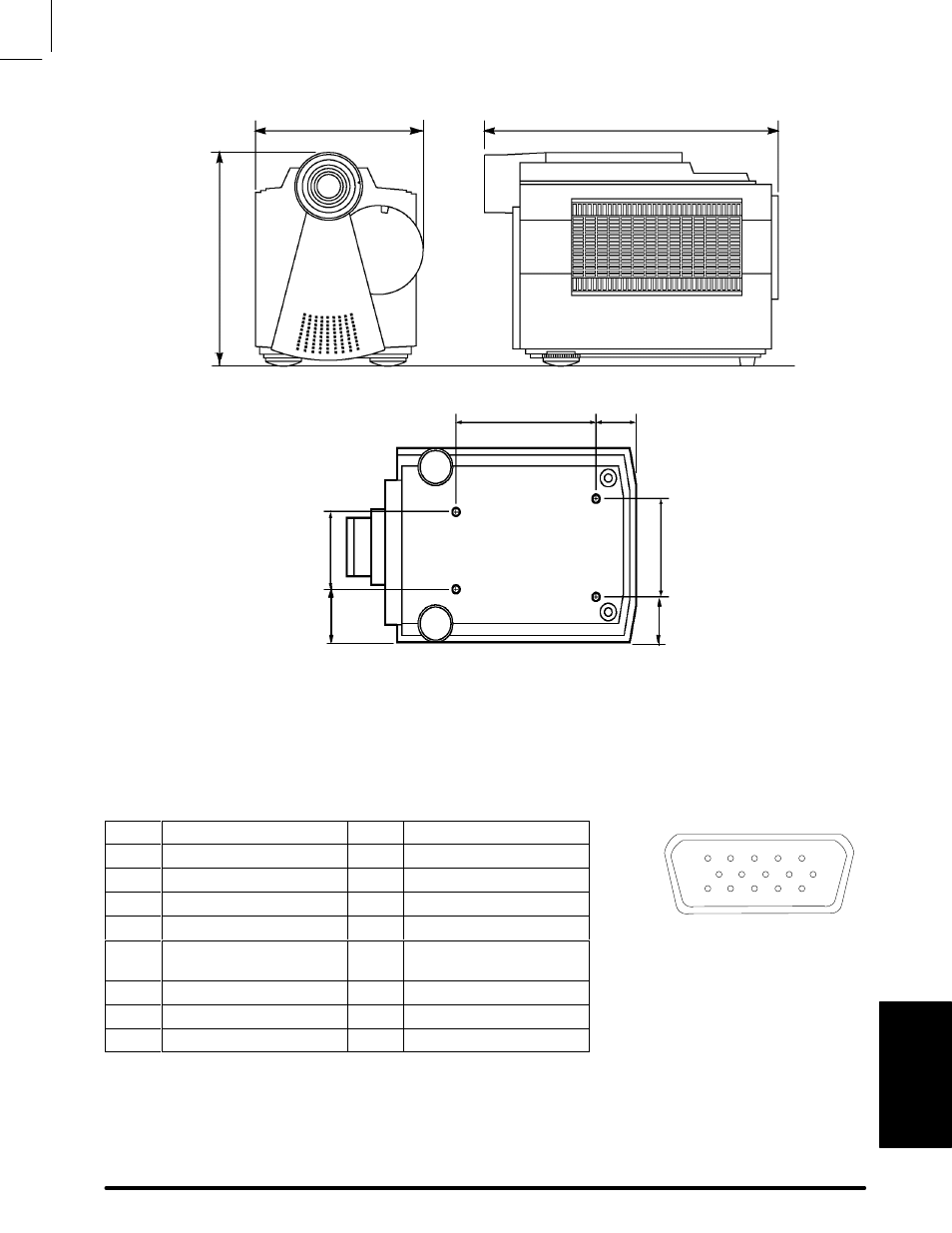

Figure 10-3. Physical Dimensions
A–5. Computer Video (RGB) Input Terminal
The following illustration (Figure 10-4) shows the terminal connections for the D-sub 15 pin HD connector.
Refer to the table below for a description of the wire to pin connections.
Pin # Description Pin # Description
1 Image Input (red) 9 Not connected
2 Image Input (green) 10 Ground
3 Image Input (blue) 11 Not connected
4 Not connected 12 Not connected
5 Ground (for sync.) 13 Composite/horizontal sync
signal
6 Ground (red) 14 Vertical sync signal
7 Ground (green) 15 Not connected
8 Ground (blue)
