2 part identification list, English – 3M MP8780 User Manual
Page 9
3M
™
Multimedia Projector MP8780
© 3M 1999
ENGLISH
8
8
9
2
7
STANDBY/ON
MUTE
MENU
BACK
LIGHT
SELECT
RESET
VOLUME
FOCUS
VIDEO
RGB
ZOOM
L
R
DRAG
BLANK
1
13
O I
12
11
10
2
3
4
5
6
EPS-59A
2.2 Part Identification List

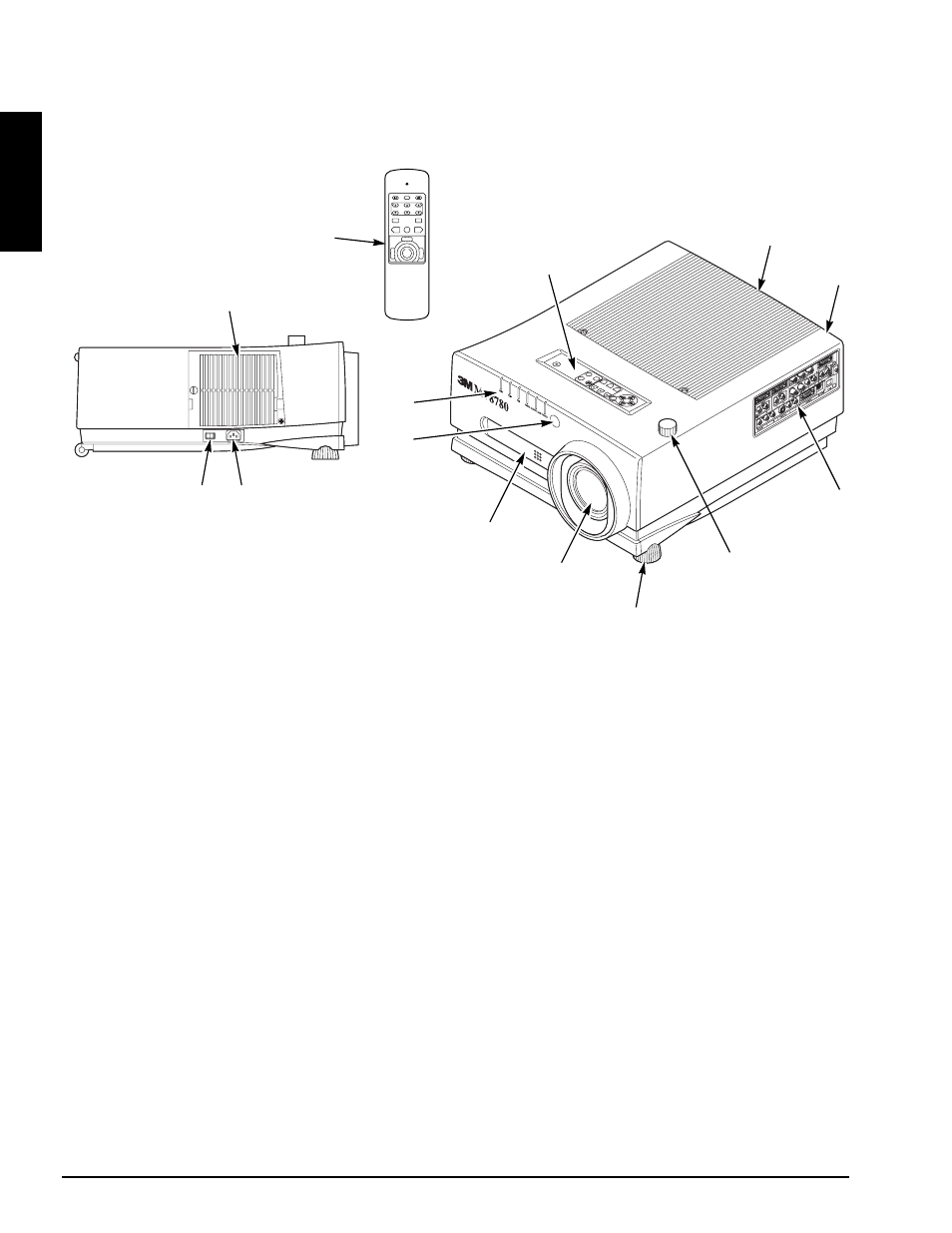

Figure 2.2 Identifying MP8780 Parts
1.
Operation Panel
a)
STANDBY/ON button
b)
Input Source: RGB/Video
c)
Mute, Blank, Volume, Zoom, Focus
d)
Display Menu (On/Off)
e)
Select button (select displayed value)
f)
Arrow Direction buttons (left/right or up/down)
2.
Remote Control Sensors (front/back)
3.
Stereo Speakers
4.
Terminal Connection Panels
a)
S-Video, Video, Audio inputs
b)
RGB1, RGB2 and RGB3 inputs
c)
RGB output
d)
Audio L/R input, Audio output
(RCA jack)
e)
RS-232 Control
f)
UBS Port
g)
Mouse control port (serial/PS/2/ADB)
h)
RGB3 or component video (BNC)
5.
Image Shift Control
6.
Height Adjustment Feet
7.
Projection lens
8.
Carry Handle
9.
LED Indicators
a)
Lamp
b)
Temperature
c)
Fan
d)
Cover open
e)
Change lamp
f)
Power On
10.
AC Power Cord Input
11.
Main Power Switch (On/Off)
12.
Lamp Access Door
13.
Remote Control Transmitter
