Prestige 304 Broadband Sharing Gateway with 4-Port Switch
3

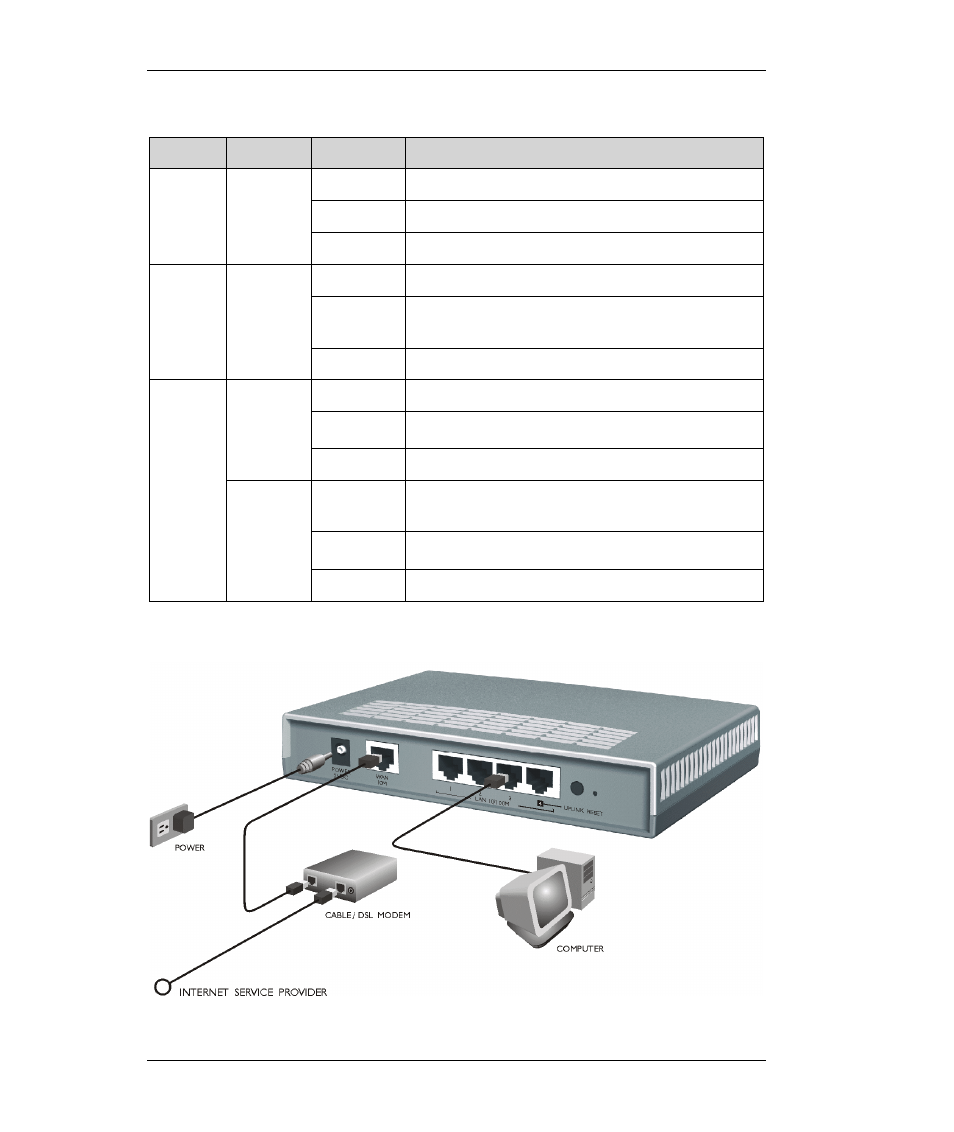

Description of LEDs
LED COLOR STATUS DESCRIPTION
On The Prestige is receiving power.
Flashing The Prestige is performing a self-test. SYS Green
Off The Prestige is not receiving power.
On The WAN link is connected.
Flashing The 10M WAN link is sending/receiving
packets. WAN Green
Off The WAN link is not ready or has failed.
On The Prestige is connected to a 10M LAN.
Flashing The 10M LAN is sending/receiving packets. Green
Off The 10M LAN is not connected.
On The Prestige is connected to a 100Mbps
LAN.
Flashing The 100M LAN is sending/receiving packets
LAN
1,2,3,4
Orange
Off The 100M LAN is not connected.
Rear Panel and Connections
