Installation 21
Installation
This chapter outlines how to connect your Prestige to the LAN and
ISDN line. Refer to the diagram below to identify all of the ports
on your device when you attempt to make the various connections.

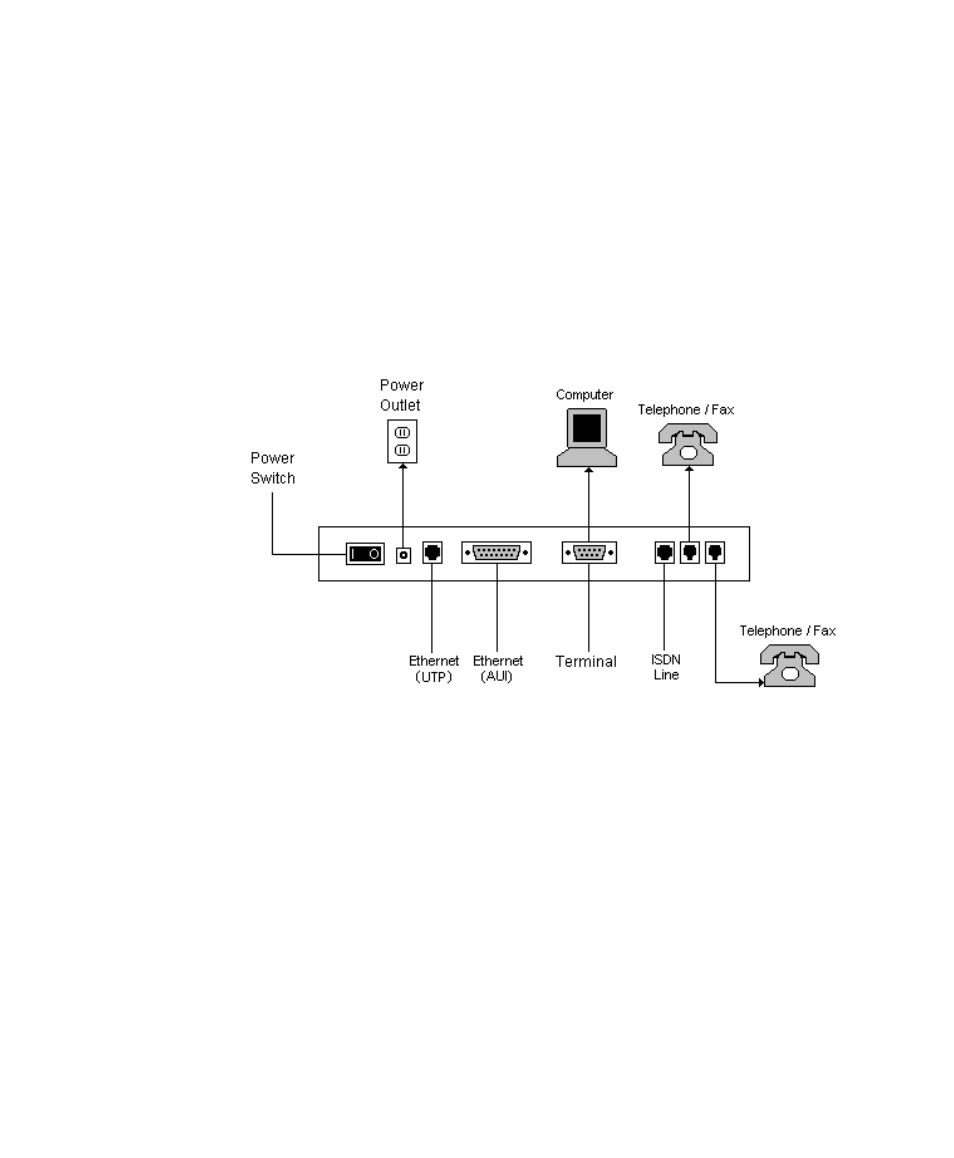

Figure 3-1 Rear Panel Diagram
A Warning On Connection Cables
The RS-232, ISDN line, and Ethernet cable, are very similar to
each other. It is important that you use the correct cable for each
connection; otherwise, your Prestige could be damaged.
Connecting Your Computer and Your Prestige
For the initial setup of your Prestige, you must use RS-232 and
communications software to configure the Prestige.
