1 Hardware Connections

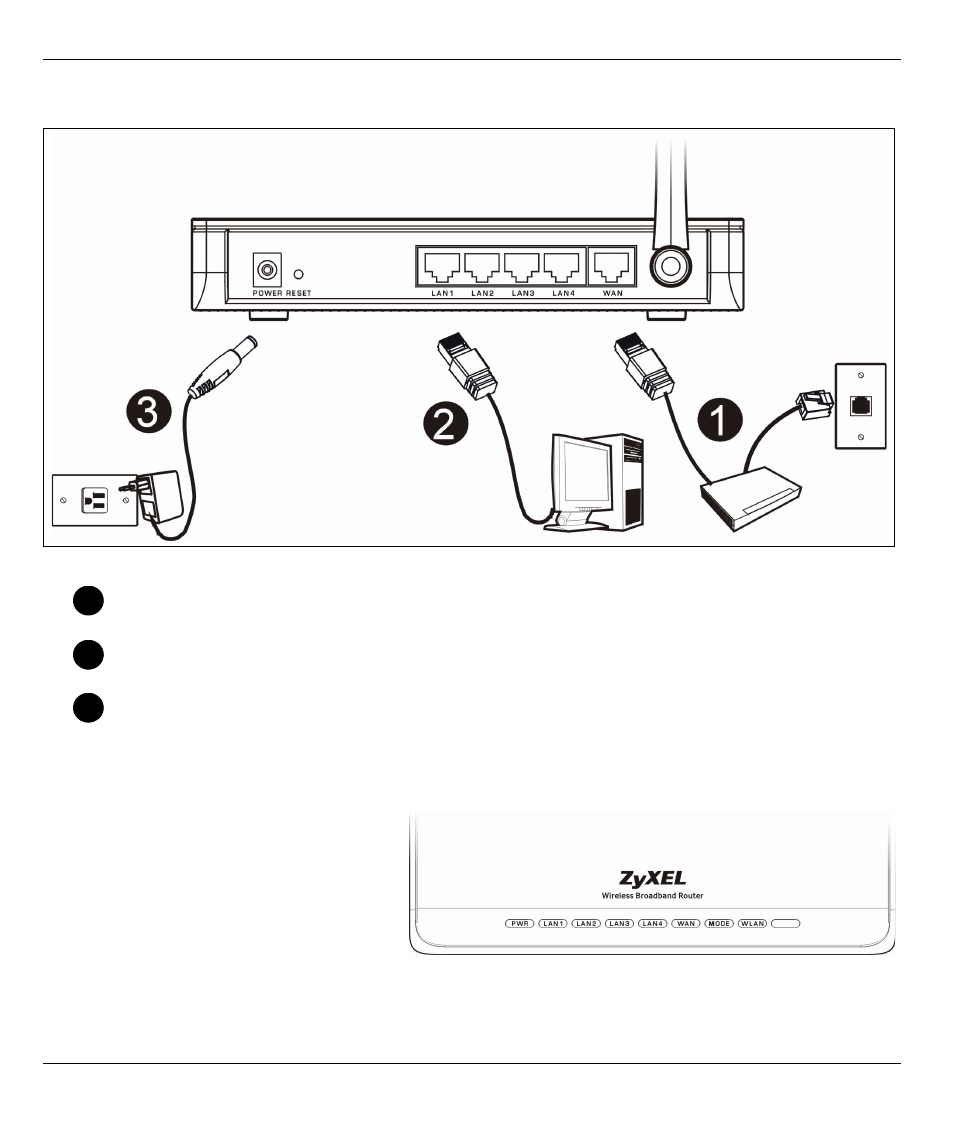

Do the following to make hardware connections for initial setup.
WAN Connection
Connect your modem to the WAN port using the cable that came with your modem.
LAN Connection
Connect your computer to a LAN port using the included Ethernet cable.
POWER Connection
Use the included power adaptor to connect the POWER socket to an appropriate power source.
The LEDs
Look at the top panel LEDs. When you
connect the power, the PWR LED blinks and
stays on once the device is ready.
The LAN, WAN and WLAN LEDs turn on if
the corresponding connections are properly
made.
1
2
3
