17
En
Eng
lish
CONNECTIONS
2

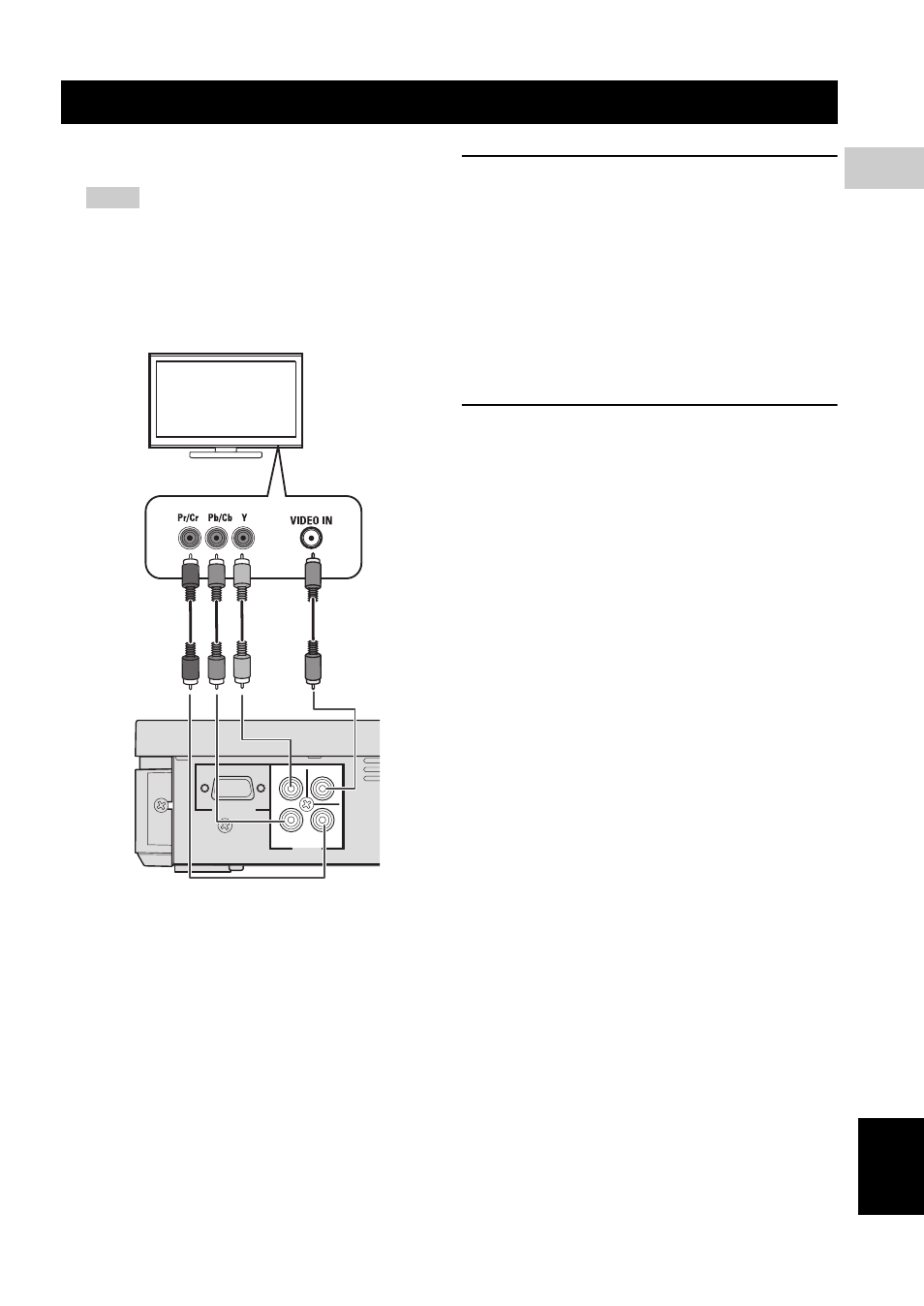

■ Connecting a TV
Notes
– You only need to make one video connection from
the following options (A or B), depending on the
capabilities of your TV.
– Do not connect the power cables until all cable
connections are completed.
COMPONENT VIDEO OUTPUT jacks
Use the component video cables (Green/Blue/Red, not
supplied) to connect the DVD controller’s Y P
B P R jacks
to the corresponding component video input jacks (or the
Y P
B /C B P R /C R YUV jacks) on your TV.
Progressive scan video quality is only available when
using Y P
B P R in conjunction with a progressive scan TV.
To activate the progressive scan function, refer to
“Selecting the output type for COMPONENT VIDEO
OUTPUT jacks” on page 24.
VIDEO OUTPUT jack
Use the Video pin cable (yellow-supplied) to connect the
DVD controller’s VIDEO OUTPUT jack to the video
input jack (or A/V In/Video In/Composite/Baseband jack)
on your TV.
OTHER CONNECTIONS
SYSTEM
CONNECTOR
NS-PSW700 VIDEO
COMPONENT
P R
VIDEO
OUTPUT
Y
P B
TV
DVD controller
