CONNECTIONS

12

En

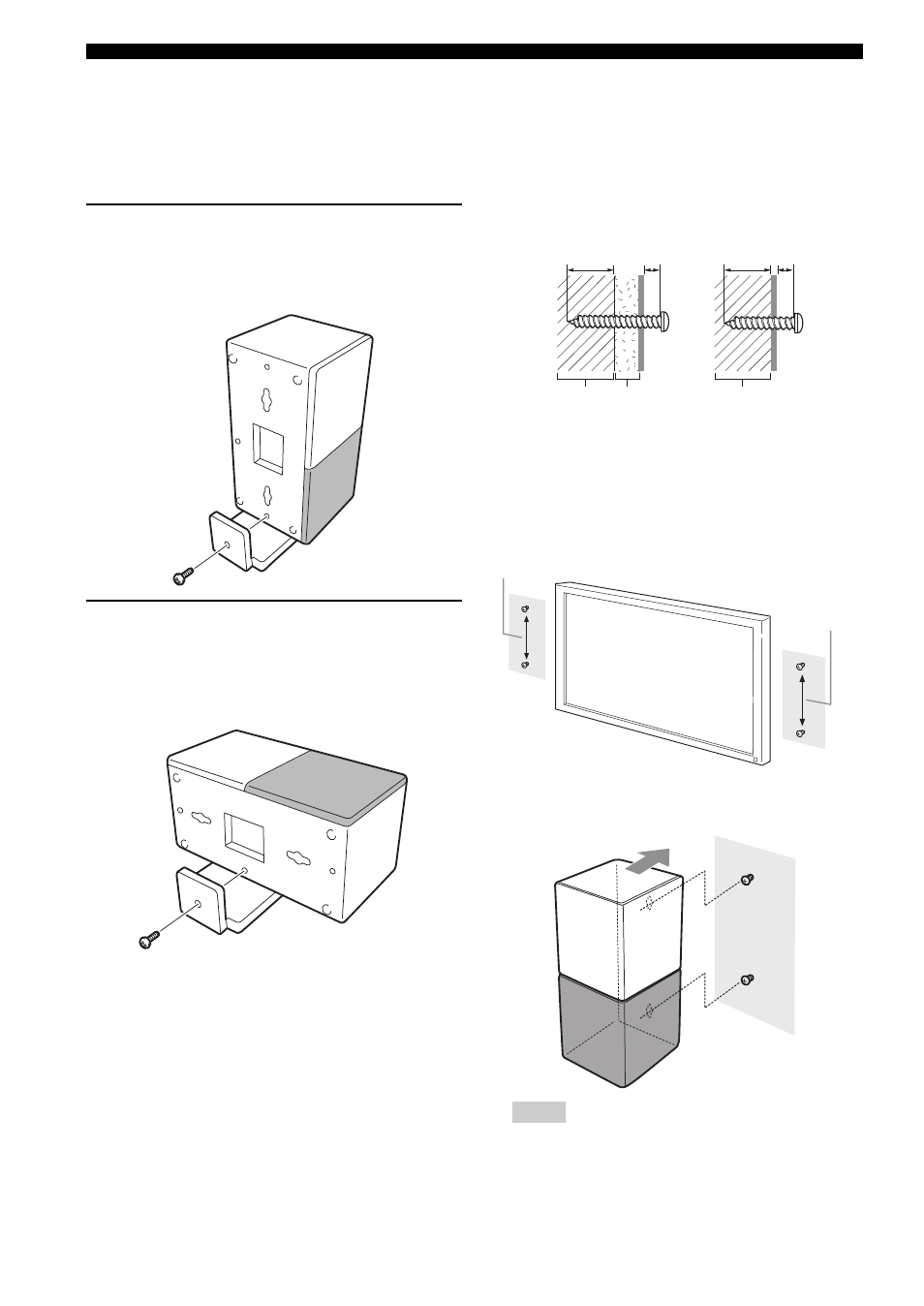

Placing the speakers using the

stands

You can place the speakers in an upright position or a
horizontal position. Put the speakers on the stands and
secure them with the screws.

When placing the speaker in an
upright position

Place the speaker on the stand vertically, and then secure it
with the screw as shown in the illustration.

When placing the speakers in a
horizontal position

Put the speaker on the stand so that the black side of the
speaker becomes outside, and then secure it with the screw
as shown in the illustration.

Placing the speakers on a wall

Put the speakers on a wall using commercially available
screws. Refer to the illustration below for the screw size.

1 When placing the speakers on a wall, remove the

stands.

2 Install screws on a wall as shown in the illustration.

The distance between the screws: 126 mm for both
sides

3 Insert the screws into the holes on the back of the

speaker.

Notes

– To attach the speaker to a wall with screws, the

wall must be firm. If not you may cause the speaker
to fall.

Tapping screw (Available at the hardware store)
Dia.4 mm (1/8")

Installing on a plaster wall.

Installing on a firm wall.

Min 20 mm

(3/4")

5 mm

(1/4")

Min 20 mm

(3/4")

5 mm

(1/4")

Plaster

Pillar

or lumber

Pillar

or lumber

126 mm (5")

126 mm (5")
