Yamaha GX-90VCD - Manual (Page 9)

ANTENNA
FRONT SPEAKERS
DO NOT CONNECT THIS UNIT TO SPEAKERS OTHER
THAN NX-C70 (CENTER) OR NX-E70 (REAR).
R L
R L
R L
SINCE THIS UNIT HAS AN ACTIVE SERVO CIRCUIT BUILT–IN. DO NOT CONNECT IT TO SPEAKERS OTHER THAN NX–GX70.
75 Ω UNBAL.
REAR CENTER REAR
FM GND AM
SPEAKERS CENTER/REAR
OUT
IN
VCR
LD/TV
OUT
MD/AUX
IN
AUDIO SIGNAL
OUT
SUBWOOFER VIDEO SIGNAL
MONITOR OUT
R L
OUT
IN
VCR
LD/TV
OUT
MD/AUX
IN
AUDIO SIGNAL
OUT
SUBWOOFER VIDEO SIGNAL
MONITOR
OUT
VIDEO IN
VIDEO IN
AUDIO IN
VIDEO OUT
AUDIO OUT
LINE OUT LINE IN
AUDIO OUT VIDEO OUT
CENTER MODE
NORMAL
PHANTOM
TV MODE PAL
NTSC AUTO
9 9
9

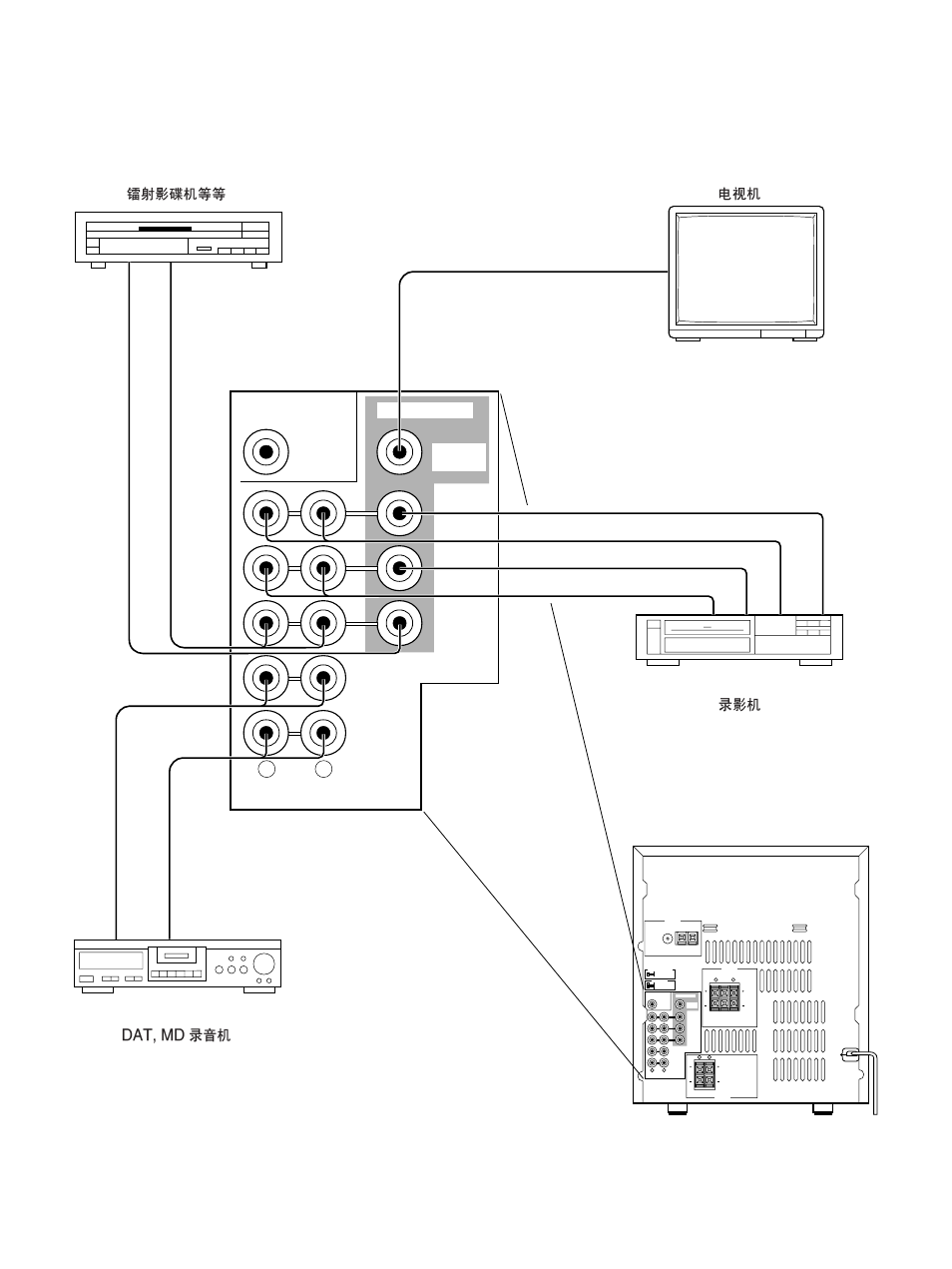

LD player etc. Monitor TV
DAT, MD recorder, etc.
Video cassette recorder
