FRONT
SPEAKERS
DO NOT CONNECT THIS UNIT TO SPEAKERS OTHER
THAN NX-C70 (CENTER) OR NX-E70 (REAR).
R L
R L
R L
SINCE THIS UNIT
HAS AN ACTIVE
SERVO CIRCUIT
BUILT–IN.
DO NOT CONNECT
IT TO SPEAKERS
OTHER THAN
NX–GX70.
REAR CENTER REAR
SPEAKERS
CENTER/REAR
OUT
IN
VCR
LD/TV
OUT
MD/AUX
IN
AUDIO SIGNAL
OUT
SUBWOOFER VIDEO SIGNAL
MONITOR
OUT
L R
R L
POWER HIGH CUT VOLUME
140 Hz 0 10 40 Hz
8 8
8

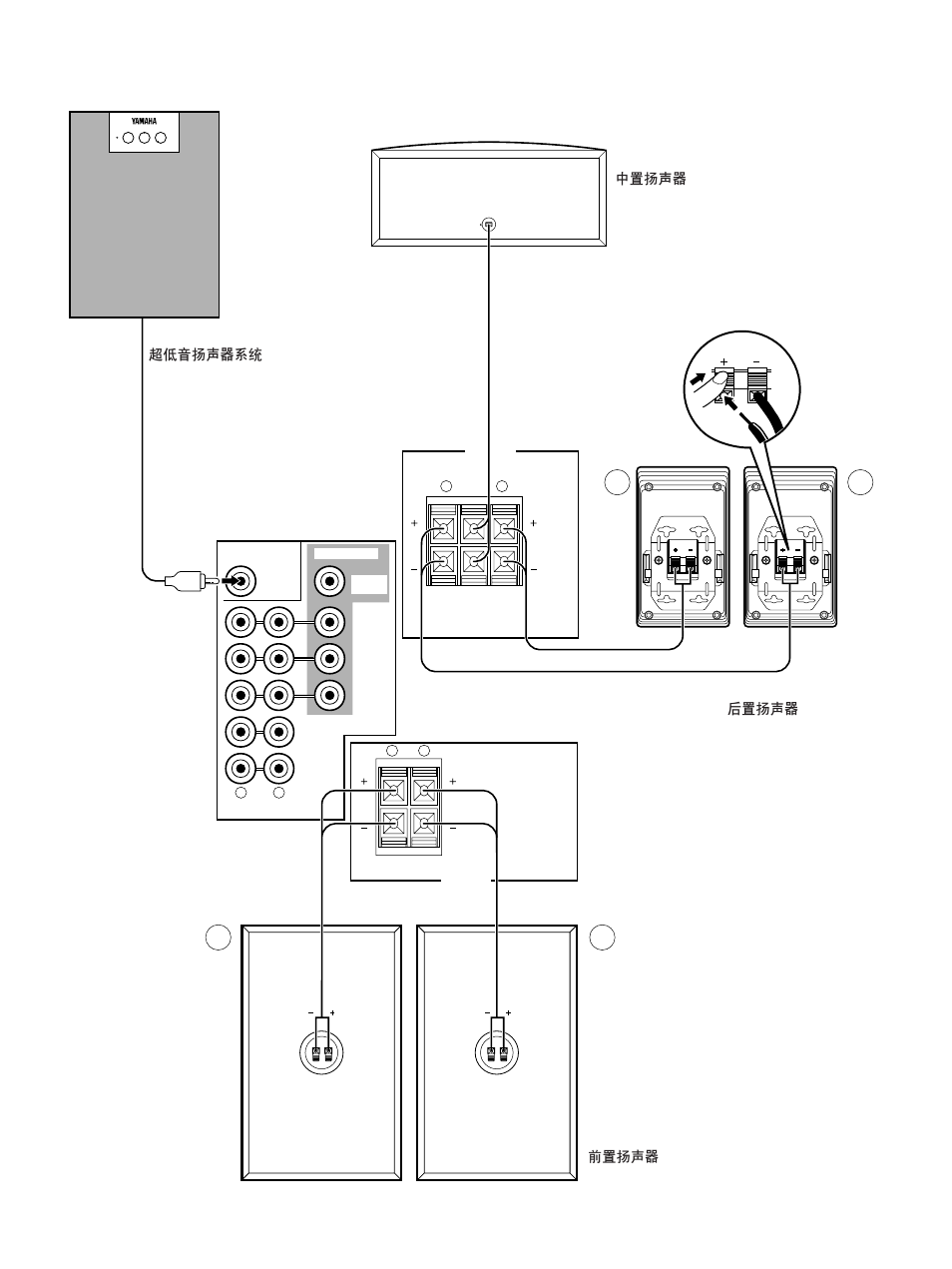

Rear speakers
Center speaker
Subwoofer system
Front speakers
