Various sound control
100 350 1K 3.5K 10K
MUSIC
ROCK POPS
JAZZ VOLUME
BASS BOOST
CD
PROGRAM
PRO LOGIC HALL
3 STEREO YMERSION
3 1 2
5 4
1

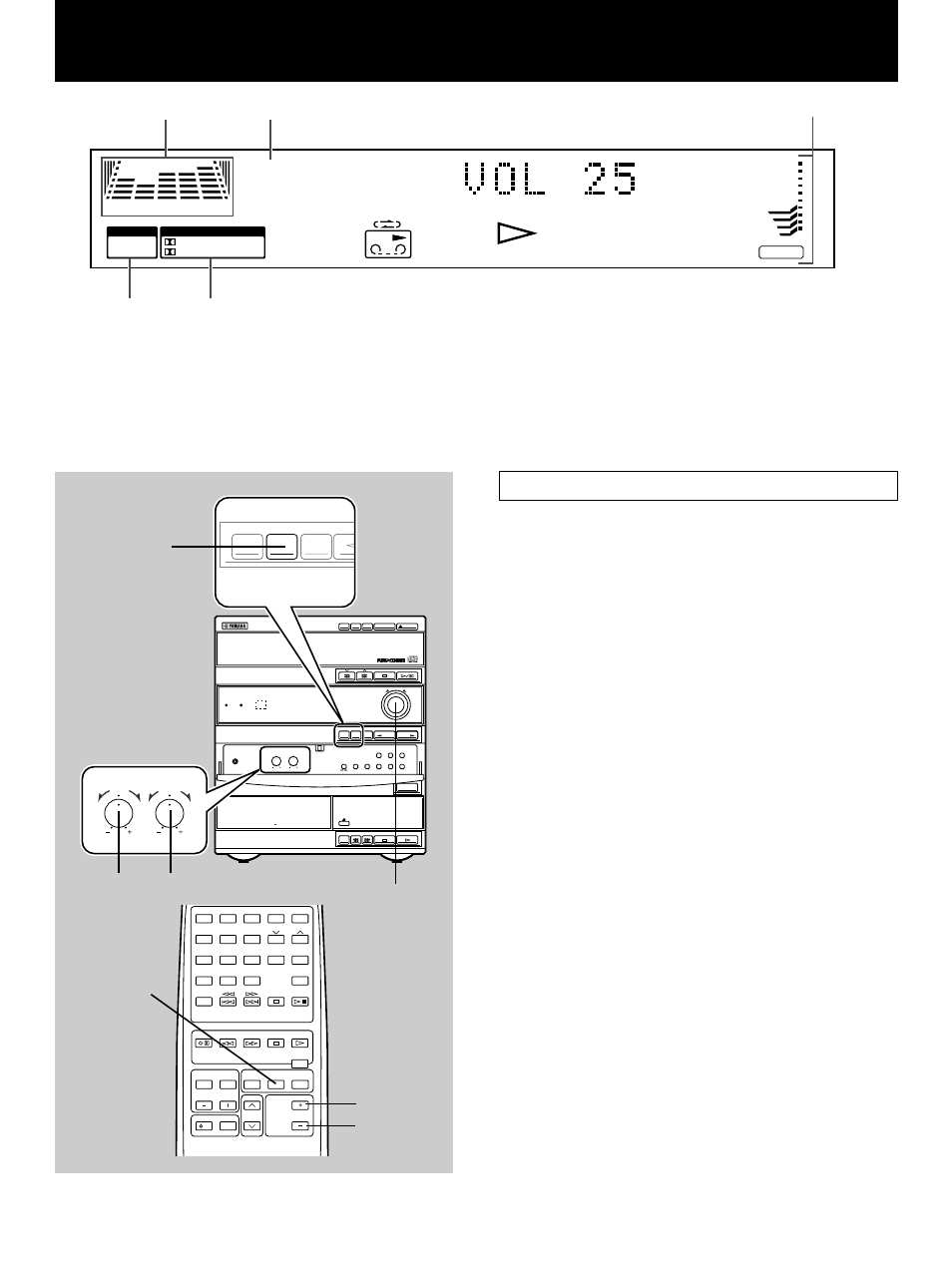

Spectrum analyzer
The spectrum of the input source which is divided in five
bands will be indicated in real time.
2
BASS BOOST
3
VOLUME (volume level meter)
4
MUSIC (preset equalizer mode indicator)
5
PROGRAM (sound field program indicator)
General sound control
Ⅵ
VOLUME control
Front panel operation
Rotate VOLUME in the “UP” direction to increase the volume,
and the “DOWN” direction to decrease the volume.
Remote control operation
Press VOLUME + to increase the volume and VOLUME – to
decrease the volume.
* Adjusted volume level is shown by the volume level meter
(
3
) and in figures on the display.
Ⅵ
B. (BASS) BOOST button
Press this button so that “BASS BOOST” (
2
) is illuminated
on the display to boost the bass frequency response of this
system while maintaining overall tonal balance. This function is
effective for reinforcing the bass frequencies when a
subwoofer is not used.
Ⅵ
BASS and TREBLE controls
BASS : Turn this knob clockwise to increase (or
counterclockwise to decrease) the low
frequency response.
TREBLE : Turn this knob clockwise to increase (or
counterclockwise to decrease) the high
frequency response.
PROGRAM
BASS
BOOST MUSIC
CENTER/
REAR/DELAY TEST
LEVEL
VOLUME POWER SLEEP
