Input Channels
9
Studio Manager for DM1000—Owner’s Manual
Input Channels

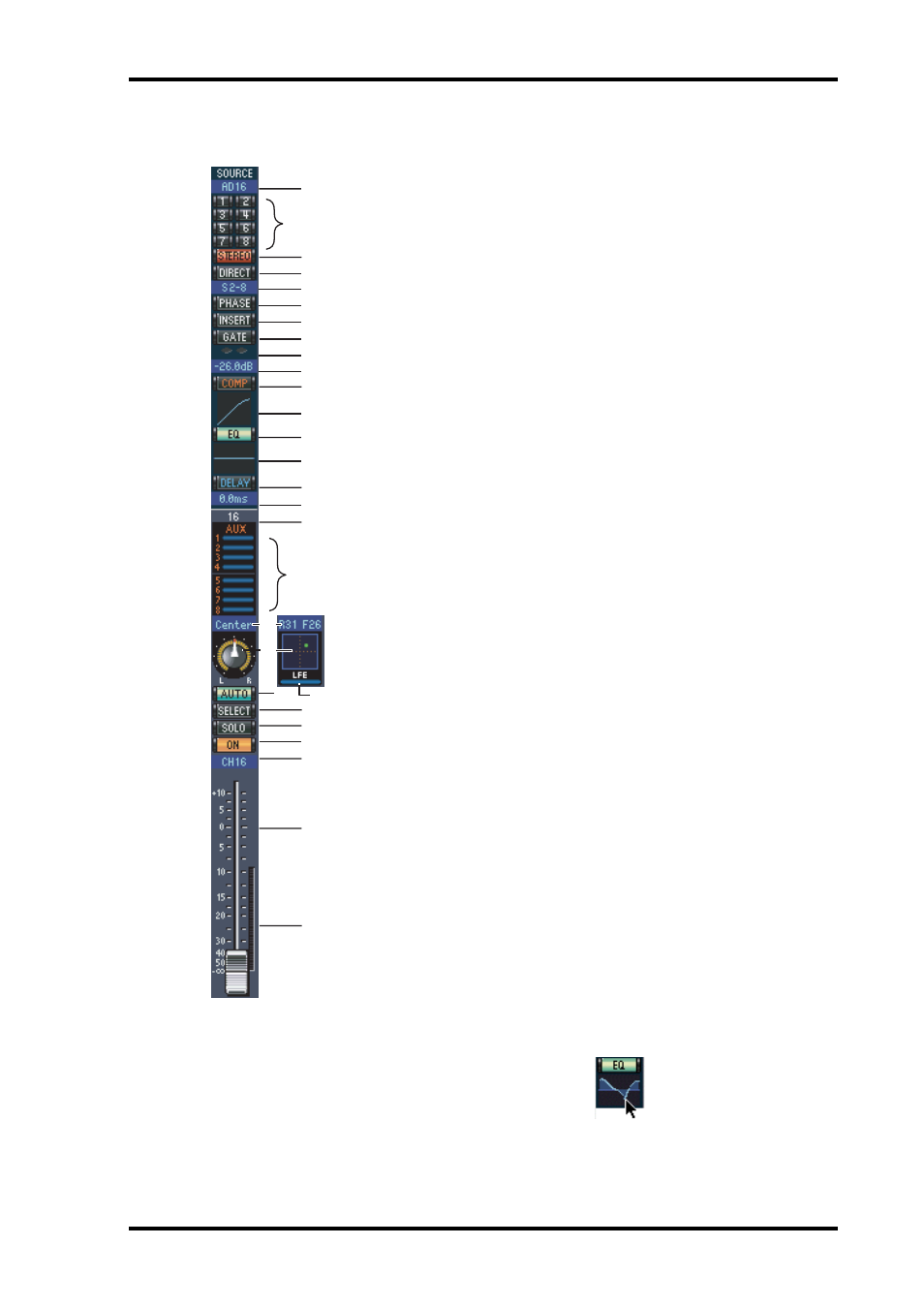

A SOURCE parameter
This parameter is used to select an Input source. To select an
Input source, click the parameter and choose from the list that
appears.
B Routing buttons
These buttons are used to route the Input Channel to the Bus
Outs.
C STEREO button
This button is used to route the Input Channel’s signal to the
Stereo Out.
D DIRECT button
This button turns on and off the Input Channel’s routing to its
Direct Out.
E Direct Out parameter
This parameter is used to select the Direct Out destination. To
select a destination, click the parameter and choose from the list
that appears.
F PHASE button
This button is used to reverse the signal phase of the channel.
G INSERT button
This button is used to turn on and off the Input Channel’s
Insert.
H GATE button
This button is used to turn on and off the Input Channel’s Gate.
I Gate open/close indicators
These indicators display whether the Gate is open (green) or
closed (red).
J Gate threshold
This displays the Gate Threshold, which can be set by dragging.
K COMP button
This button is used to turn on and off the Input Channel’s Com-
pressor.
L Compressor curve
This display shows the Compressor’s curve.
M EQ button
This button is used to turn on and off the Input Channel’s EQ.
N EQ curve
This display shows the Equalizer’s curve, which can be set by
dragging.
O DELAY button
This button is used to turn on and off the Input Channel’s Delay
function.
