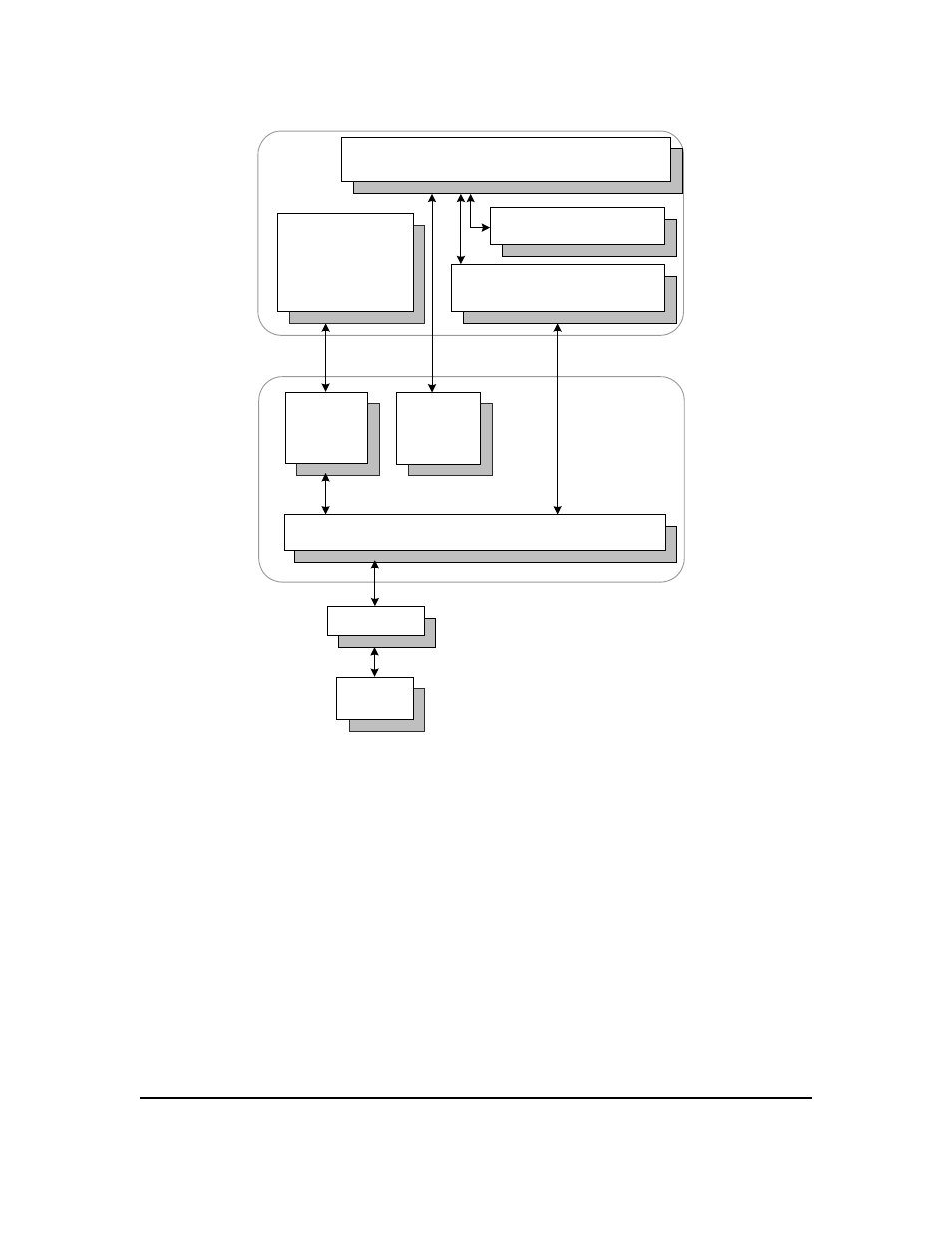

Figure 1.2: OpenArchitect Software Structure
OpenArchitect applications are used to program and configure the Ethernet Switch Blade. These
applications are implemented above the libraries and RMAPI.
Ethernet Switch Blade User's Guide release 3.2.2j page 22
Linux Application
Level Software
(routed, gated)
ZNYX RAIN Mgt API RMAPI
OpenArchitect Libraries
zlxlib and ztlib
OpenArchitect Application Level Software
(i.e., zconfig, zl3d, zl2d, zsync)
Linux
Protocol
Stack
Linux
Routing
Tables
Open Architect Driver
PCI Bus
Switch
Fabric
Linux
Application
Environment
Linux
Kernel
