Chapter 14 Isolating Hardware Failures
1. Flash 10. Switch Chip (U69)
2. EEPROM 11. Zone 3 ATCA Connector
3. PHY 12. Isolation Transformers
4. CPU 13. 4-port PHY
5. SDRAM 14. Zone 2 ATCA Connector
6. Isolation Transformer 15. Zone 1 ATCA Connector
7. IPMI Controller 16. Isolation Transformers
8. Power Supply 17. 4 port PHY
9. Switch Chip (U56) 18. Fuses
Ethernet Switch Blade User's Guide release 3.2.2j page 173

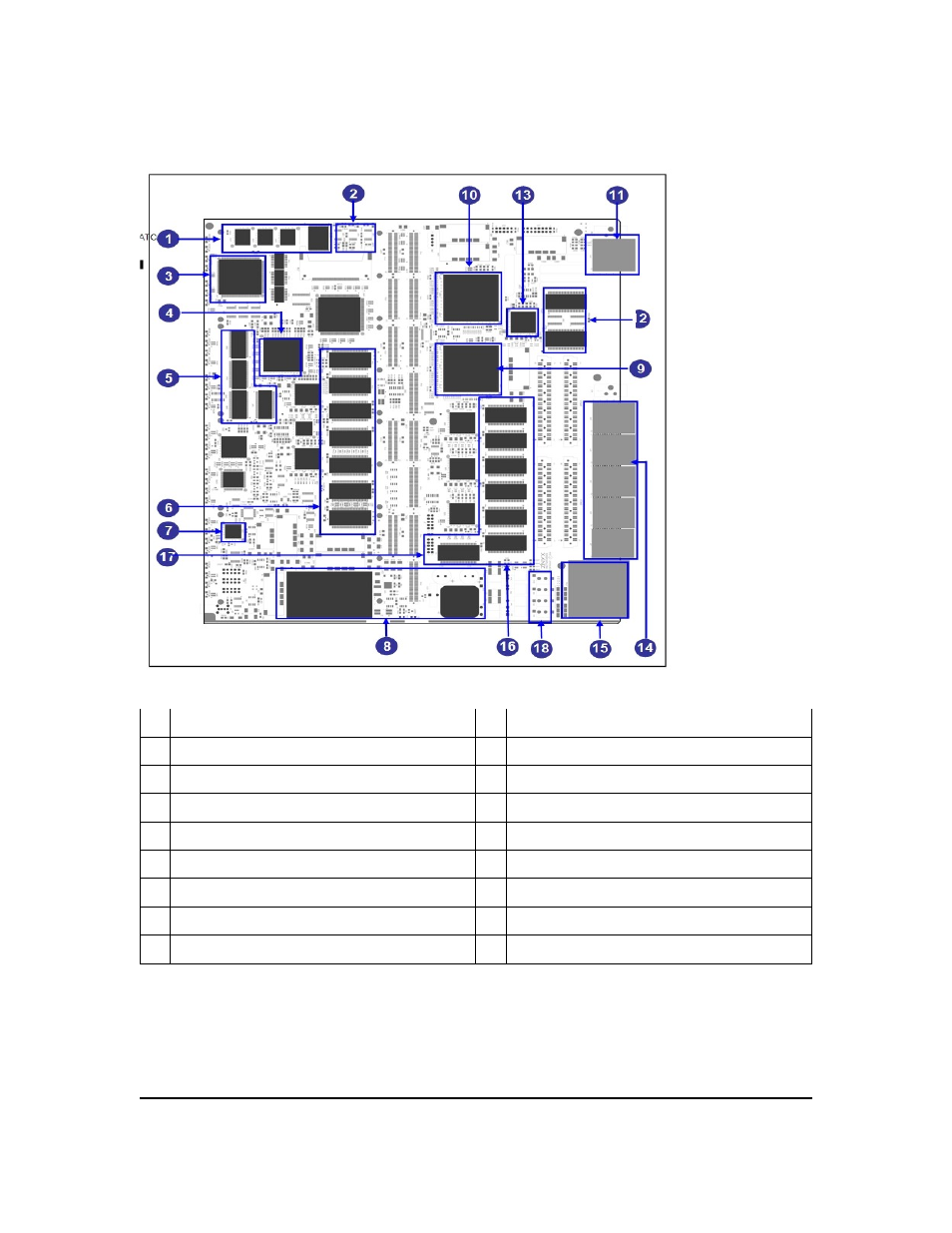

Figure 14.1: ATCA Base Inside View
