25
English

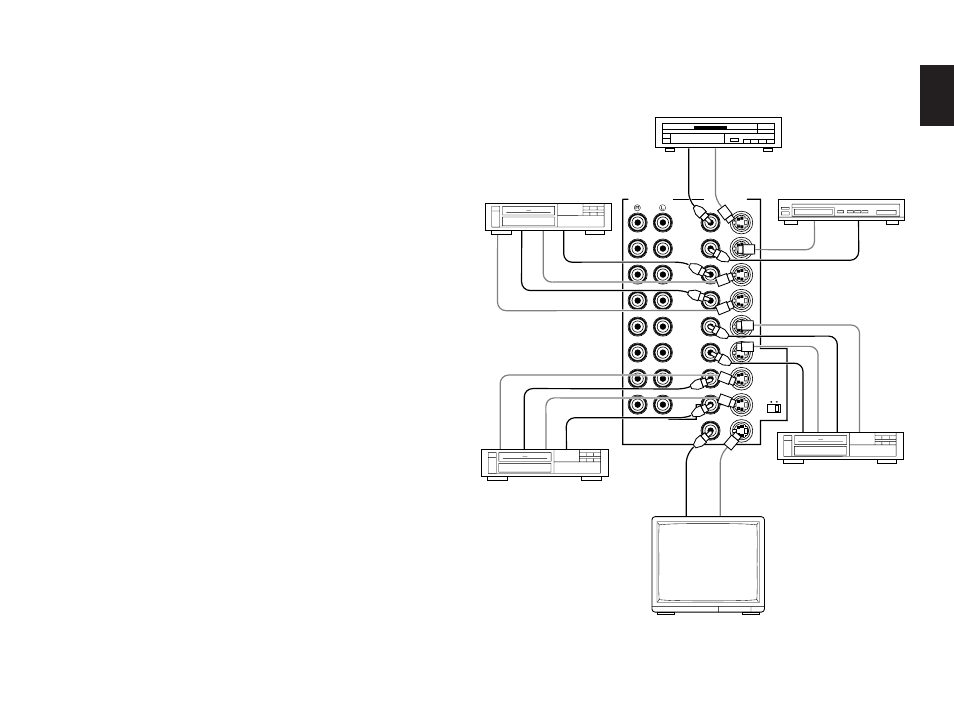

CONNECTING TO S VIDEO JACKS
If your video cassette recorder, LD player, etc. and your monitor
are equipped with “S” (high-resolution) video terminals, connect them
to this unit’s S VIDEO jacks, and connect this unit’s
S VIDEO MONITOR OUT jack to the “S” video input of your monitor.
Otherwise, connect the composite video jacks from your video
cassette recorder, LD player, etc. to the VIDEO jacks of this unit, and
connect this unit’s VIDEO MONITOR OUT jack to the composite
video input of your monitor.
NOTE: If video signals are sent to both S VIDEO input and VIDEO
input jacks, the signals will be sent to their respective output jacks
independently.
NOTE: If your unit is the General Model, be sure the NTSC/PAL
switch has been correctly set to the standard that your video
equipment employs. U.S.A. and Canada models have no switch and
use the NTSC standard, while other models without a switch use the
PAL standard.
Notes about the Video superimpose
● If you watch a video source that is connected to both S VIDEO and
VIDEO input jacks of this unit, signals of screen display information
are output from only the S VIDEO MONITOR OUT jack.
● When no video signal is input to either S VIDEO or VIDEO input
jacks of this unit, signals of screen display information are output
from both S VIDEO MONITOR OUT and VIDEO MONITOR OUT
jacks with a color background.
* For the General Model, if the NTSC/PAL switch on the rear panel
is set to “PAL”, nothing will be output from either S VIDEO
MONITOR OUT or VIDEO MONITOR OUT jack in this case.
AUDIO SIGNAL VIDEO SIGNAL
LD
VIDEO S VIDEO
TV/DBS
IN
VCR 1
OUT
IN
VCR 2
OUT
IN
VCR 3/DVD
VCR 3/DVD OUT
CAN BE USED AS A 2ND
MONITOR OUT, IF SELECTED
BY SET MENU.
OUT
MONITOR
OUT
PAL NTSC
VIDEO
OUT
S-VIDEO
OUT
S-VIDEO
OUT
VIDEO IN S-VIDEO IN VIDEO OUT S-VIDEO OUT
S-VIDEO IN VIDEO IN
VIDEO OUT S-VIDEO OUT VIDEO IN S-VIDEO IN
VIDEO
OUT
VIDEO
OUT
S-VIDEO OUT
VIDEO IN
S-VIDEO IN
Monitor TV
TV/Satellite tuner
Video cassette recorder 1
LD player
Video cassette recorder 2
Video cassette
recorder 3 or another
video unit
