21
English
REAR PANEL SWITCH AND CONTROL
SETTINGS
There are several switches and controls on the rear panel that
you’ll have to check before operating your system, and it’s a good
idea to do it before you connect cables. Locate the MAIN LEVEL
slide switch (
D ) and FRONT MIX slide switch ( C ). Make sure the
MAIN LEVEL switch is set to “0 dB” and the FRONT MIX switch is set
to “OFF” for 7 or 6 speaker driving.
In a 5 or 4 speaker system, set the FRONT MIX switch to “ON”.
Next, set the NTSC/PAL switch ( B ) to the position corresponding
to the standard which your video equipment employs. (General
Model only)
GENERAL INSTRUCTIONS FOR
CONNECTIONS
Make sure that you have the left (L) and right (R) channels
correctly connected. That means that jacks marked “L” on this unit
must be connected to jacks marked “L” on other units. Likewise with
the “R” jacks. This is easy if you remember to always use the red
plug for the “R” jacks and the white plug for the “L” jacks.

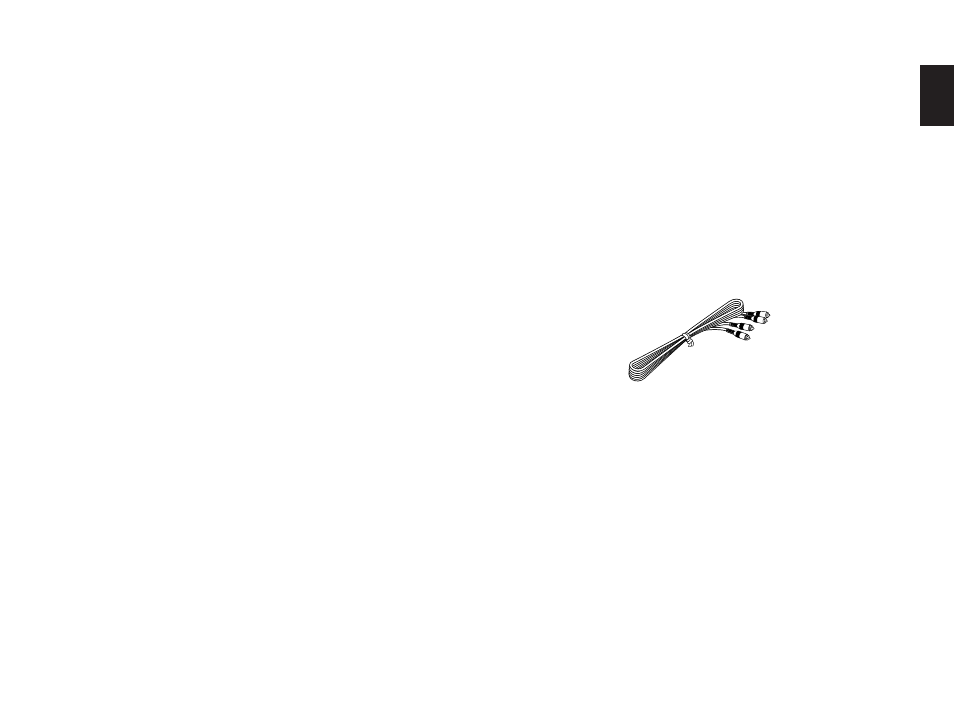

For connections with audio/video source equipment, use RCA
type pin plug cables with the exception described later.
With speaker connections you must also be sure that the polarity
is correct. For each amplifier and each channel, connect the plus (+)
terminal of the amplifier to the plus terminal of the speaker, and
connect the minus (–) terminal of the amplifier to the minus terminal
of the speaker. To keep track of polarity, use a speaker cable that has
one of the two wires marked by a stripe or a different color.
