Chapter 2 Web Configurator Basics
NSA-220 User’s Guide
41

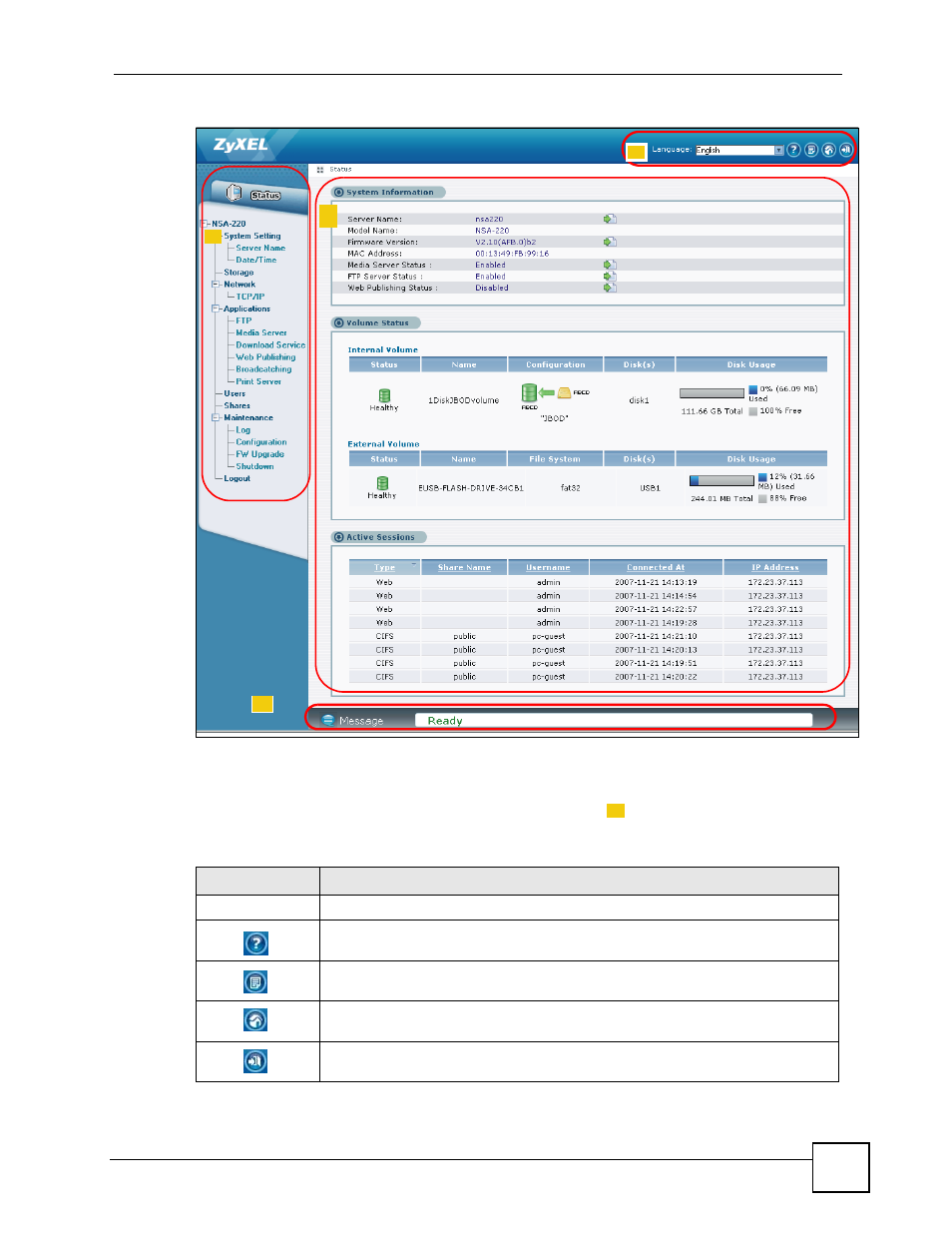

Figure 15 Status
2.6.1 Global Administration Icons
The icons and language label at the top-right of the screen (
) are visible from most of the
administration screens. The following table describes the ‘global’ icons and labels.
1
2
3
4
Table 9 Global Labels and Icons
LABEL/ICON
DESCRIPTION
Language
Select the web configurator language from the drop-down list box.
Click this Help icon to open a web help page specific to the screen you are
currently configuring.
Click this About icon to view the model name, firmware version and copyright.
Click this Home icon to return to the user-level screens.
Click this Logout icon at any time to exit the web configurator. This is the same as
clicking the Logout link at the bottom of the Navigation panel.
