Preparing to print
Connecting the EX7750 to the printer
Once the printer network settings have been configured, connect the EX7750 to the
printer. The EX7750 and the printer communicate through an Ethernet Crossover
cable connecting the EX7750 upper RJ-45 port to the Ethernet port on the printer.
T
O
CONNECT
TO
THE
P
RINTER
1.
Make sure the power switch is in the off position (press 0), and then connect the
recessed end of the power cable to the EX7750.
2.
Connect the other end of the power cable to a wall outlet.
3.
Connect one end of the Ethernet Crossover cable to the upper RJ-45 port on the
EX7750 back panel and the other end to the Ethernet port on the printer.

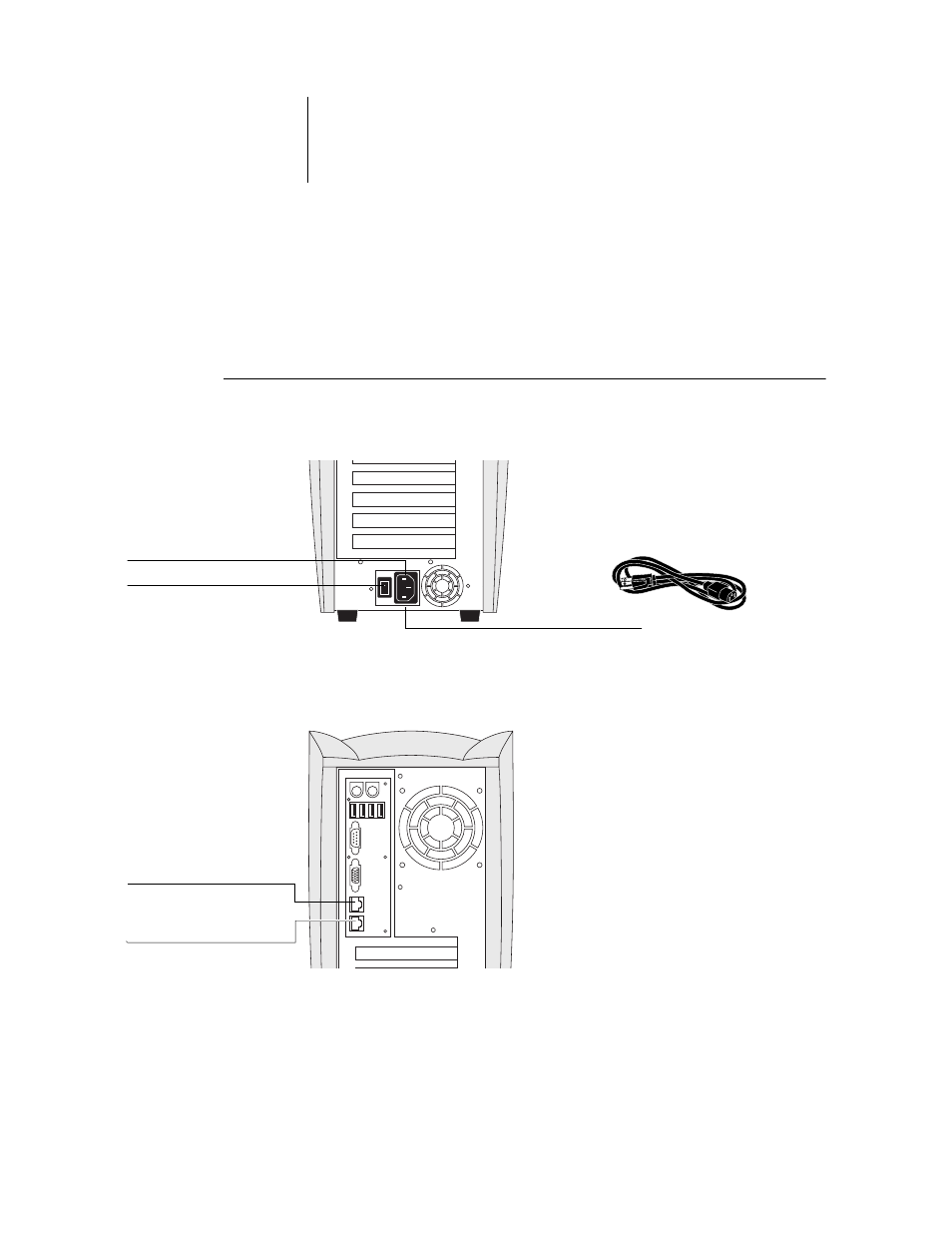

Power switch
Power connector
Power cable
Printer interface (RJ-45)
Connect Ethernet Crossover
cable here
Network only
