P-2302R-P1 Series Quick Start Guide
3

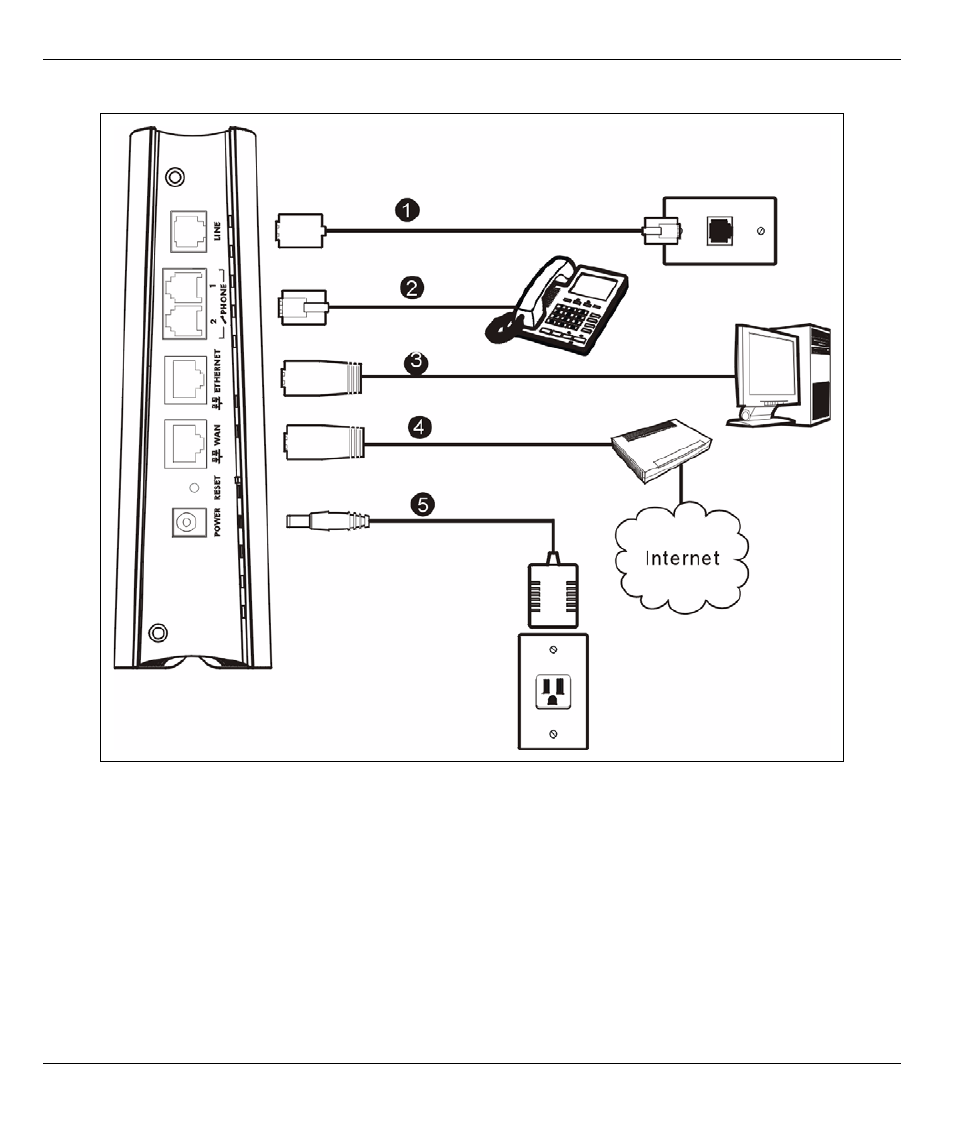

2 Hardware Connections
1 LINE (P-2302RL-P1 only): Use a telephone cable to connect the telephone jack to this port.
2 PHONE 1-2: Use a telephone cable (and any telephone adaptors provided with your P-2302R-P1) to
connect your telephones to these ports. If you only have one telephone, you should only use one port.
3 ETHERNET: Use an Ethernet cable to connect your computer to this port.
4 WAN: Use an Ethernet cable to connect your broadband modem or router to this port.
5 POWER: Use the power adaptor provided with your P-2302R-P1 to connect an appropriate power source
to this port.
On the front panel, the POWER light flashes green while your P-2302R-P1 starts up and stays green once it is
ready. The WAN and ETHERNET lights turn on if the WAN and ETHERNET ports are properly connected.
These lights flash when the P-2302R-P1 is sending or receiving data.
