Communications Wiring for Multiple Inverters
975-0253-01-01
3–9
Terminators
Male network terminators (Figure 3-7) are required at both ends of the network to
ensure the communication signal quality on the network. Your GT Inverter comes
with one network terminator pre-installed.
GT Inverter Xanbus
ports
Two RJ45 ports are provided on the GT Inverter for making network connections.
See Figure 3-8 for the location of these ports.

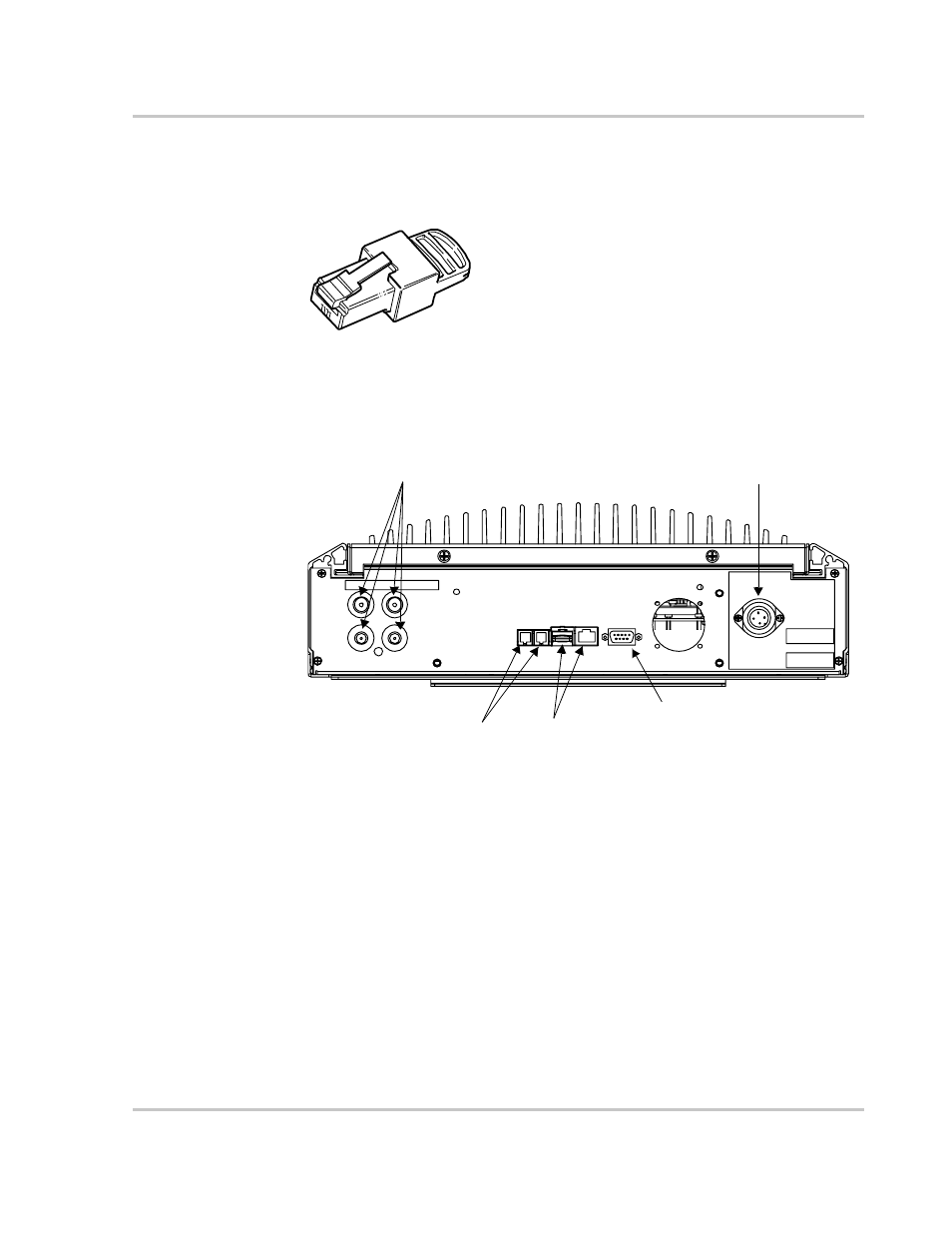

Figure 3-7 Male Network Terminator
Figure 3-8 Location of Xanbus RJ45 Ports
RJ11 ports
(not used)
RJ45
Xanbus ports
RS-232 port (used to connect a PC to
use GT-View. See page 3–12.)
Multi-Contact DC connectors
Binder AC connector
