NAMES OF BUTTONS AND CONTROLS

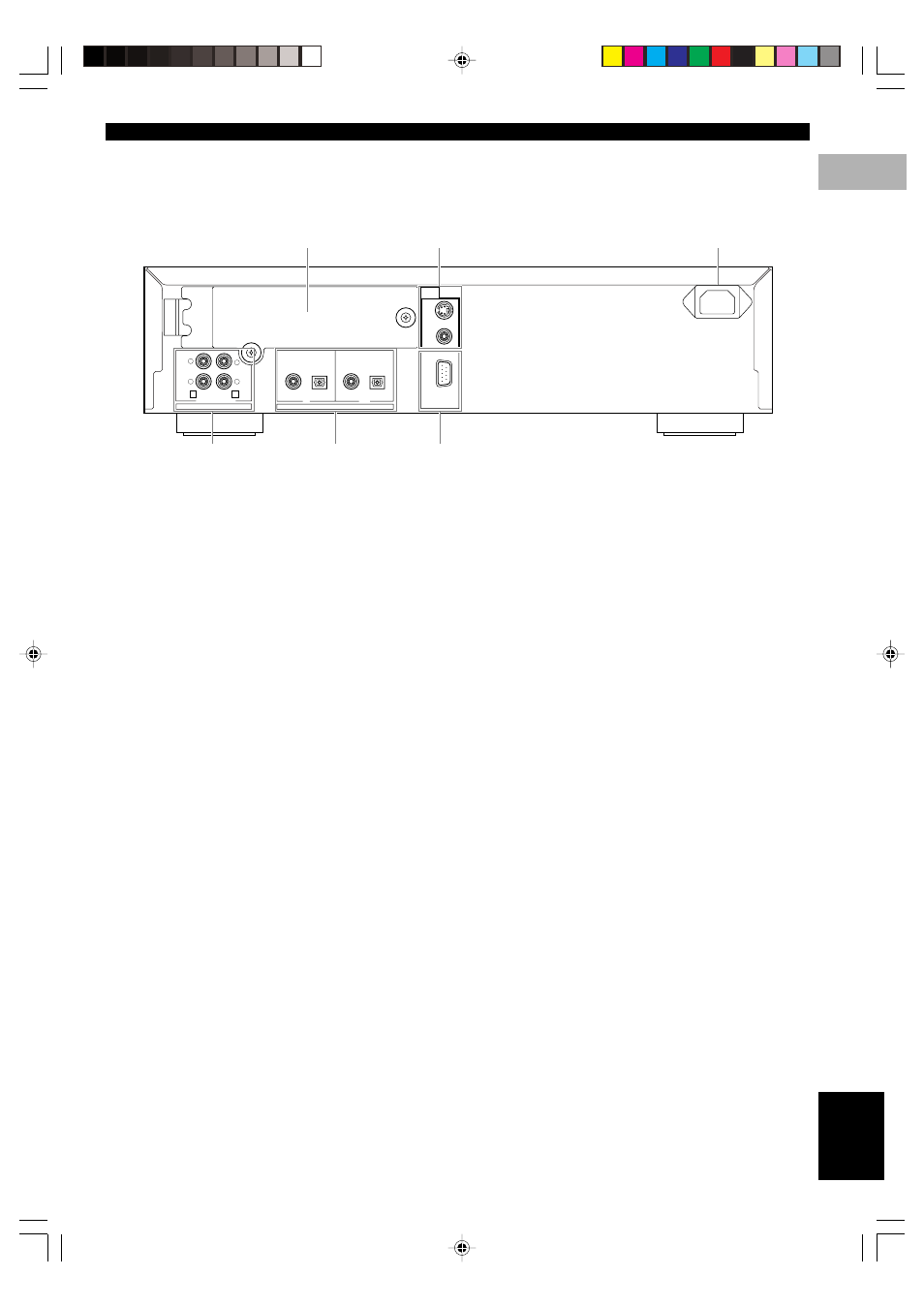

■ Rear panel
For details about HDD installation, refer to “INSTALLING THE HDD” of the “HDD Installation Manual”. For details about how to connect
other components, refer to “CONNECTIONS” (P.10).
LINE IN — LINE OUT IN OUT
DIGITAL
REC COAXIAL OPTICAL COAXIAL OPTICAL
RS–232C
VIDEO
VIDEO
OUT
S VIDEO
ANALOG
PLAY
R
L
R
L
4 3
1 2 3
5 6 4 (U.S.A. model)
5
DIGITAL jacks
DIGITAL IN (COAXIAL) jack
Inputs digital signals.
DIGITAL IN (OPTICAL) jack
Inputs digital signals.
DIGITAL OUT (COAXIAL) jack
Outputs digital signals.
DIGITAL OUT (OPTICAL) jack
Outputs digital signals.
6
RS-232C terminal
This terminal is for connecting a personal computer.
Information about the PC software (English version only) is
to be announced on the YAMAHA Website
(http://www.yamaha.co.jp/english/product/av/).
1
HDD slot
Open the cover when replacing the HDD.
2
VIDEO OUT jacks
S VIDEO jack
Outputs S-video signals.
VIDEO jack
Outputs composite video signals.
3
AC inlet (U.S.A. model only)
Plug the power cable to this inlet. (Be sure to connect the
power cable after connecting all other cables.)
4
ANALOG jacks
ANALOG LINE IN (REC) jacks
Inputs analog signals.
ANALOG LINE OUT (PLAY) jacks
Outputs analog signals.
