FITTING THE LID
We recommend the lid hinge block are fitted
before installing the hob into the worktop.
To install the lid onto the hob, proceed as follows:
a. Remove the right and left hand grid blocks fitted to the
back of the hob, by unscrewing the relevant screws
(fig. 11)
b. Fit the lid hinge blocks onto the hob, using the original
screws, ensuring that the relevant shims are fitted
between the hinge blocks and the hob (fig. 12);
c. Fit the left hand lid hinge (marked S) into the hinge
block (fig.12);
d. Carry out the same operation with the right hand lid
hinge (marked D).
ADJUSTING THE LID BALANCE
To adjust the lid balance, turn clockwise or anti-
clockwise the central screw of the right- and left-hand
hinges (fig. 13).

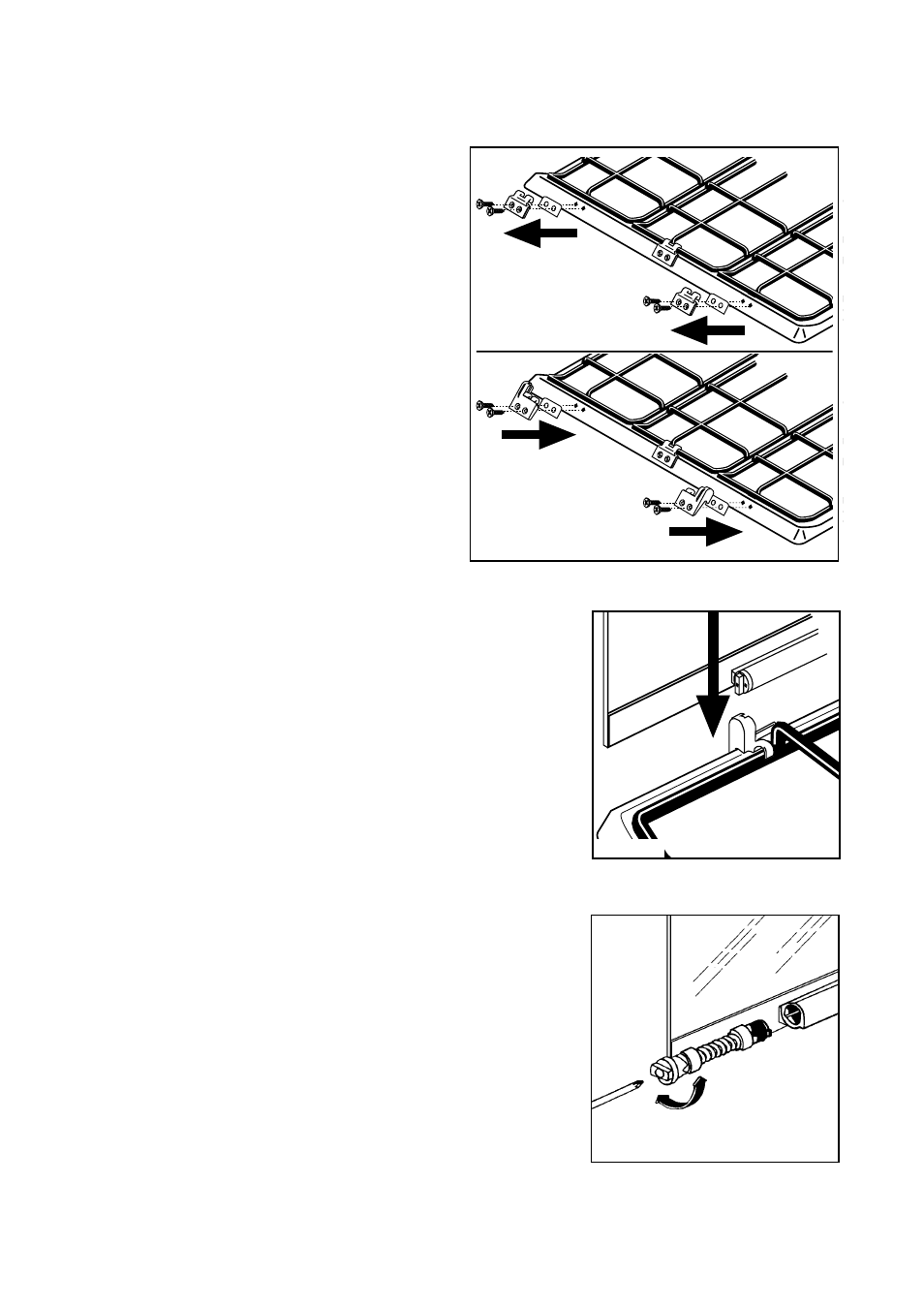

Fig. 11
FO 2035
Fig. 12
Fig. 13
FO 2036
FO 2037
