Page 21

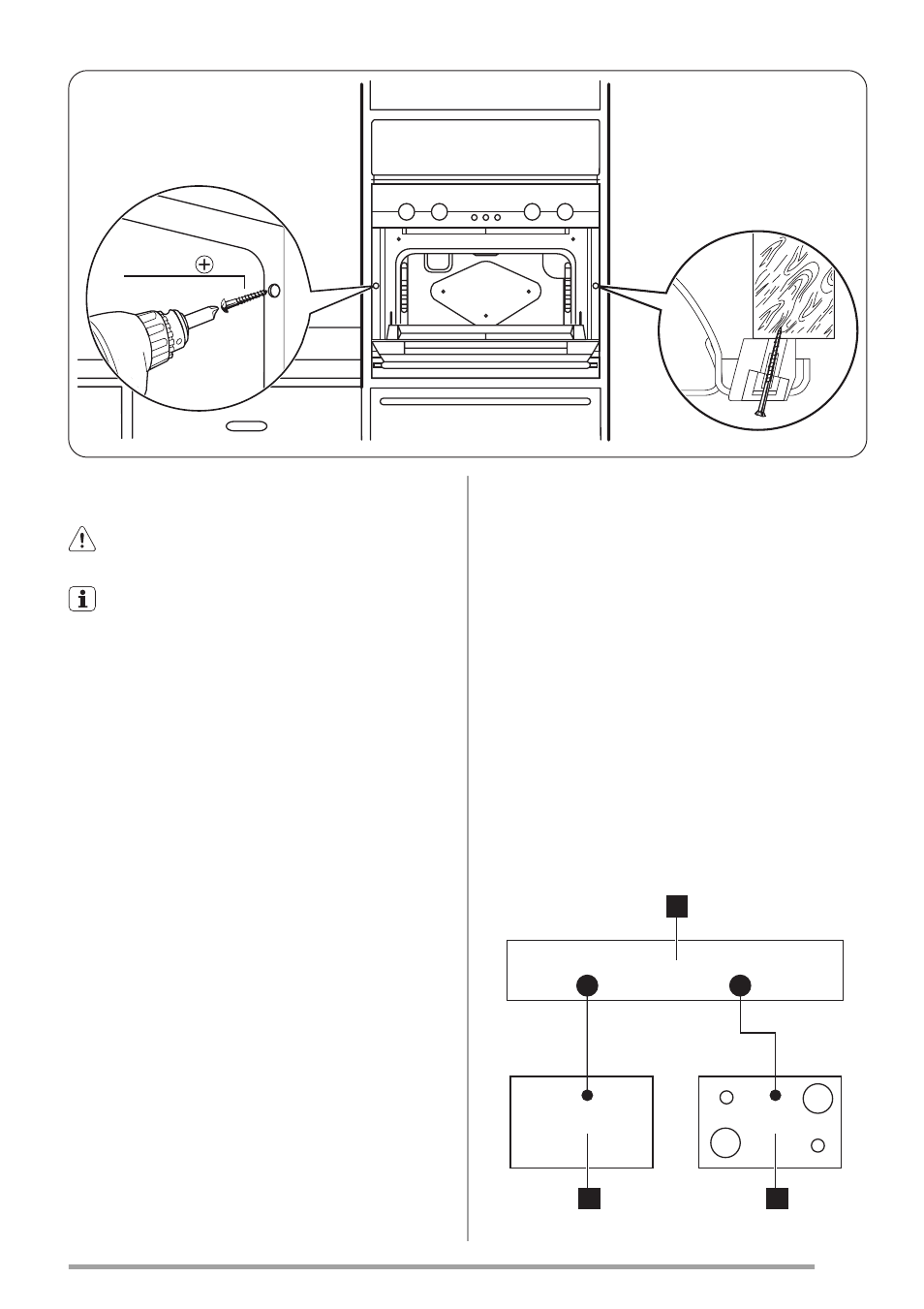

2x 3,5x25

Electrical installation

Warning! Only a qualified and competent person

must do the electrical installation.
The manufacturer is not responsible if you do not

follow safety precautions from chapter "Safety".

This appliance is supplied without a main plug and a main

cable.

Applicable cable types : H07 RN-F, H05 RN-F, H05 RRF,

H05 VV-F, H05 V2V2-F (T90), H05 BB-F

Electrical Installation

• Enquiries regarding the installation of the cooker point,

if required, should be made to your Regional Electricity

Company to ensure compliance with their regulations.

• The appliance socket switch should be outside the cab-

inet but within 2m of the appliance to make it accessi-

ble to switch off the appliance in case of an emergency.

• To protect the hands, wear gloves when lifting the oven

into its housing.

Important! HOUSE CIRCUIT

Earth leakage and continuity tests must be carried out

before the appliance is connected to the mains supply and

re-checked after fitting.

GETTING THINGS READY CHOICE OF ELECTRICAL

CONNECTION
There are three possible ways to connect your appliance.

In each case the appliance should be operated using at

least 6mm² twin core and earth PVC insulated multicore

cable. Please choose from the most appropriate after read-

ing the different methods :
a) By connecting to a cooker point (having a double

pole isolating switch with at least 3mm contact sepa-

ration in all poles and neutral) and protected with a

fuse or miniature circuit breaker at your mains fuse

box.

b) By connecting the appliance together with a hob di-

rectly to a cooker point(s). Having a double pole iso-

lating switch with at least 3mm contact separation in

all poles and neutral.

c) If you wish to connect an oven and a hob to a cooker

point you can by connecting the oven and hob sepa-

rately to the cooker point. Oven and hob units should

be separately connected to a cooker point. (See Pic-

ture)
