Print-Quality Problems
Phaser® 7750 Color Laser Printer
4-31
Adjusting Side 2 Margins Short-Edge Feed with Duplex Option

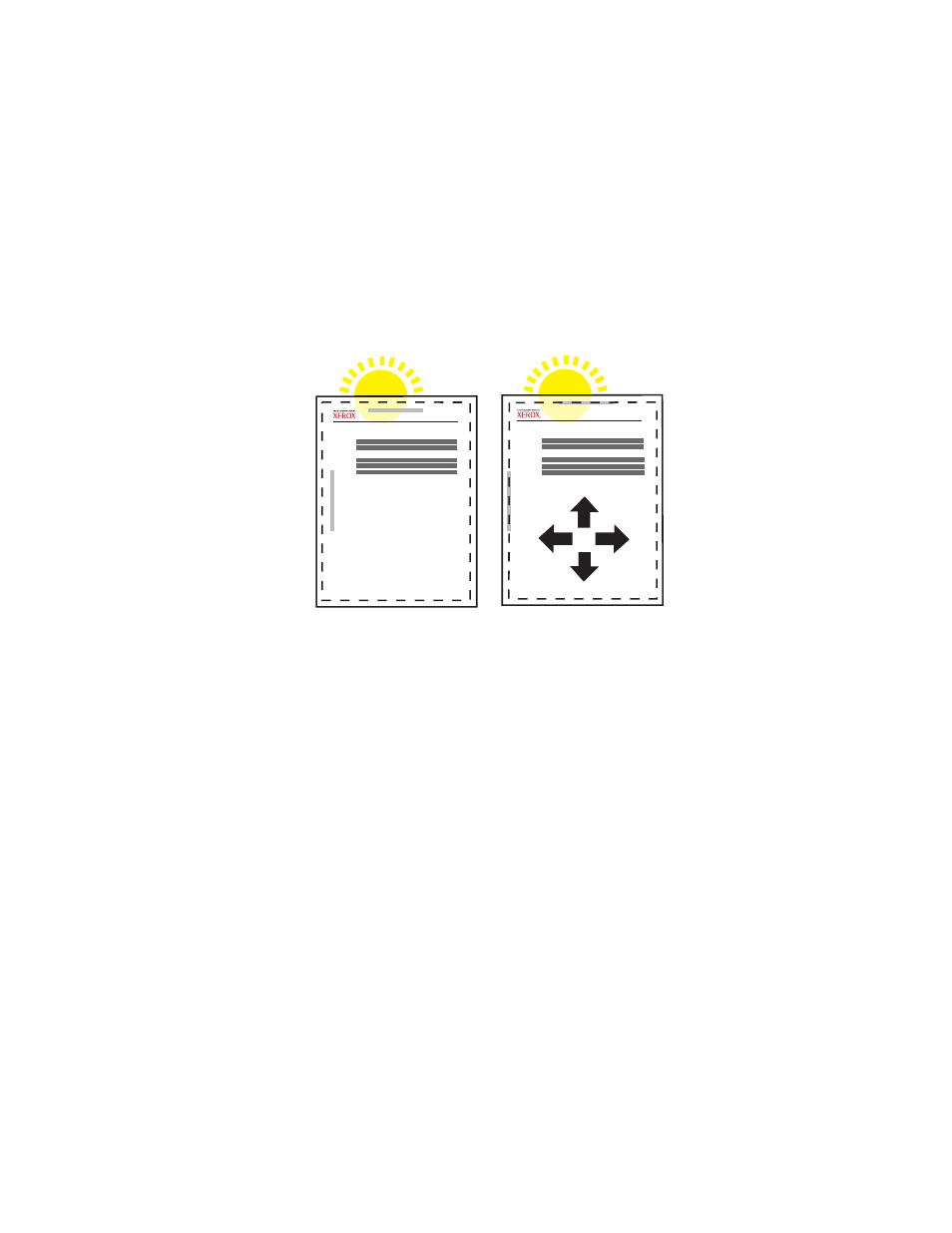

1. With side 1 facing you, hold the print up to a strong light. Note the shadow of the solid
lines printed on side 2.
2. To move the solid lines to align with the dashed lines:
a. Select Side 2 “A” Margin , then press the OK button.
b. Press the Up or Down arrow button to move the margin as illustrated.
c. Select Side 2 “B” Margin , then press the OK button.
d. Press the Up or Down arrow button to move the margin as illustrated.
3. Reprint the Calibrate Margins Page to verify or change the adjustment.
2A+
2B-
2A-
2B+
