Chapter 2 VLC Specifications
VLC1324G User’s Guide
26

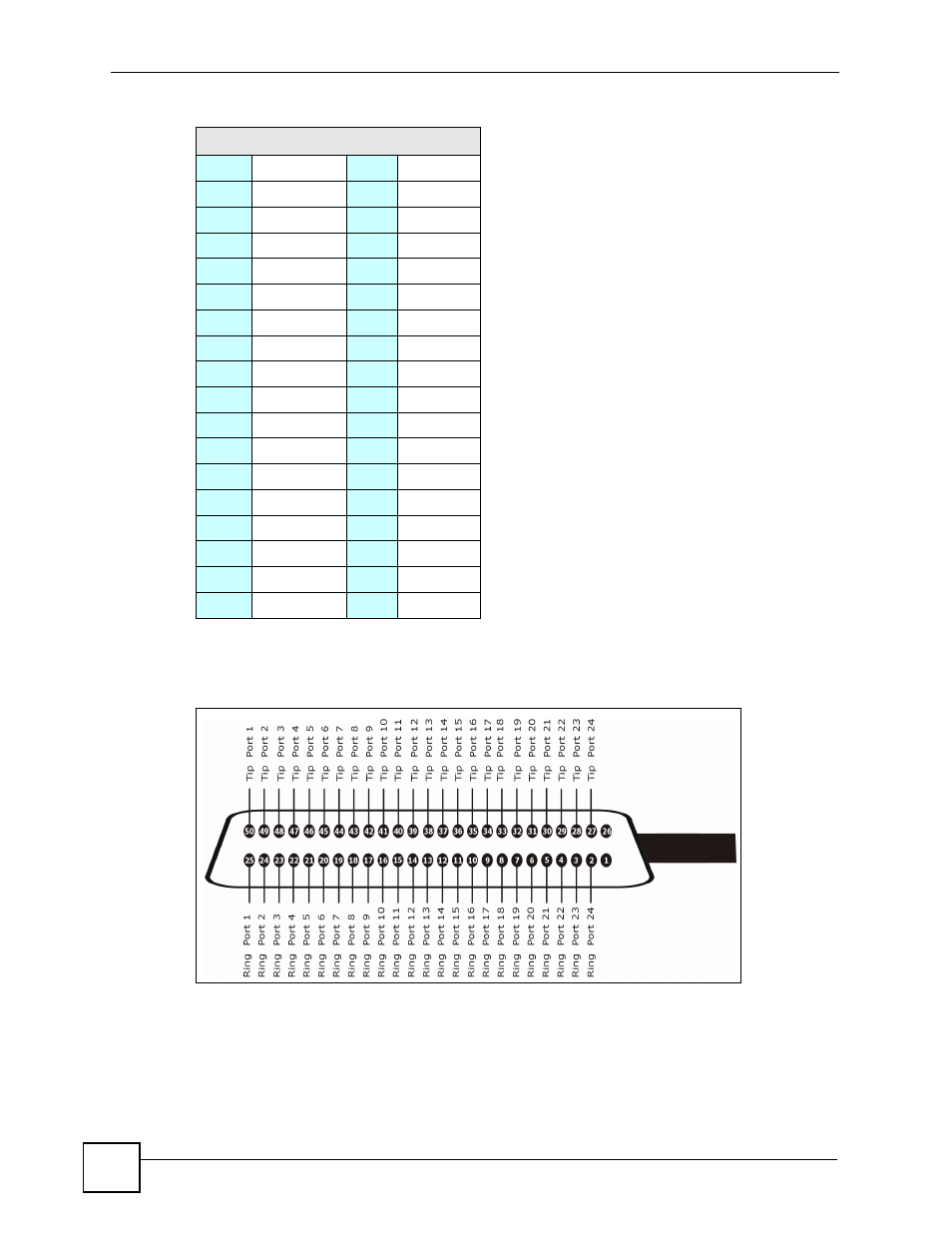

The following graphics show pin assignments for the Telco-50 connectors on the cables that
connect the VLC to a splitter card in the splitter chassis.
Figure 4 IES-5000/5005 Cable Telco-50 Pin Assignments (VLC End)
Pin 8 Ring Port 18 Pin 33 Tip Port 18
Pin 9 Ring Port 17 Pin 34 Tip Port 17
Pin 10 Ring Port 16 Pin 35 Tip Port 16
Pin 11 Ring Port 15 Pin 36 Tip Port 15
Pin 12 Ring Port 14 Pin 37 Tip Port 14
Pin 13 Ring Port 13 Pin 38 Tip Port 13
Pin 14 Ring Port 12 Pin 39 Tip Port 12
Pin 15 Ring Port 11 Pin 40 Tip Port 11
Pin 16 Ring Port 10 Pin 41 Tip Port 10
Pin 17 Ring Port 9 Pin 42 Tip Port 9
Pin 18 Ring Port 8 Pin 43 Tip Port 8
Pin 19 Ring Port 7 Pin 44 Tip Port 7
Pin 20 Ring Port 6 Pin 45 Tip Port 6
Pin 21 Ring Port 5 Pin 46 Tip Port 5
Pin 22 Ring Port 4 Pin 47 Tip Port 4
Pin 23 Ring Port 3 Pin 48 Tip Port 3
Pin 24 Ring Port 2 Pin 49 Tip Port 2
Pin 25 Ring Port 1 Pin 50 Tip Port 1
Table 5 VLC Telco-50 Connector Pin Assignments (continued)
PORTS 1-24
