BC3410FW/BC4310FW

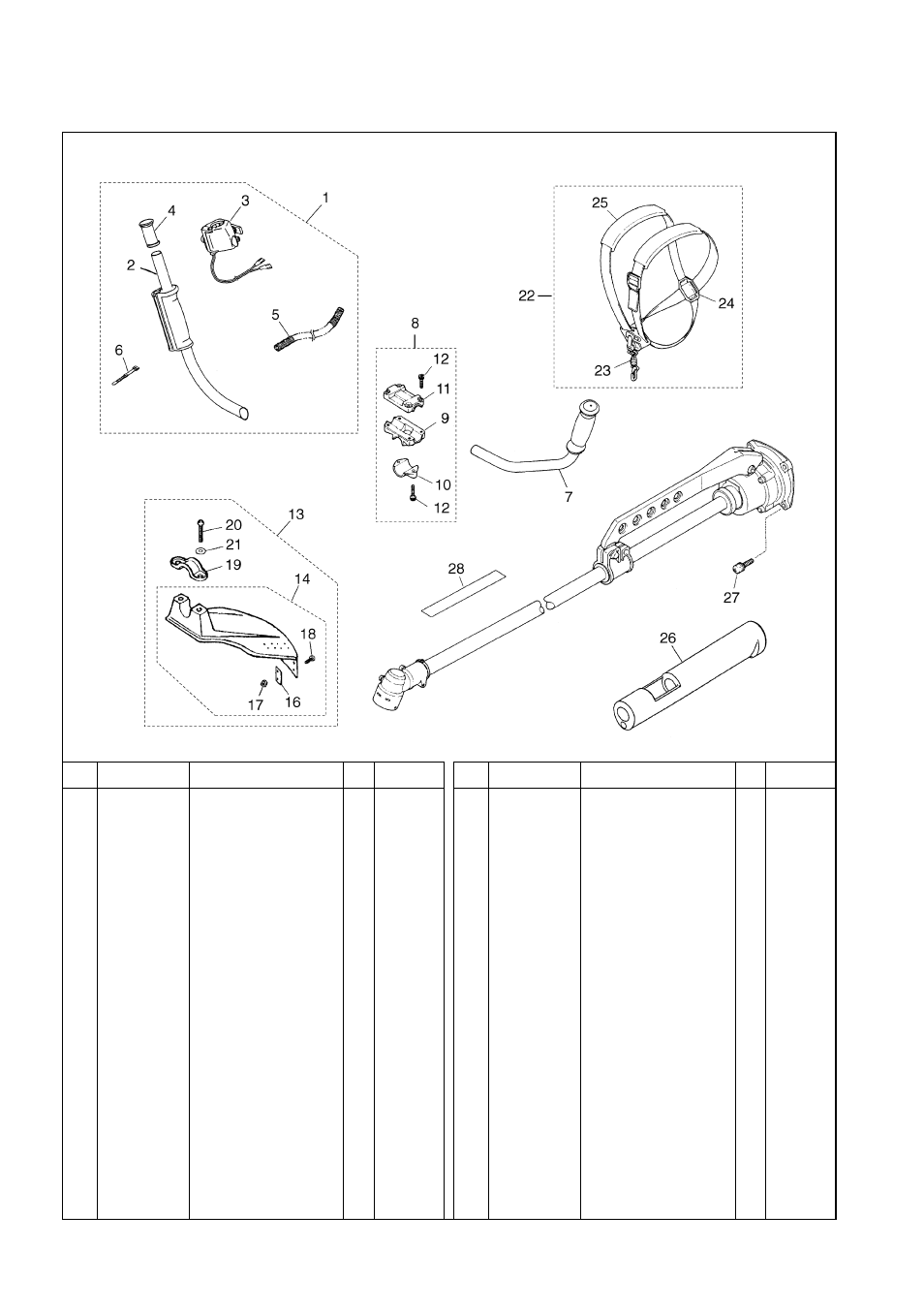

Fig.6 HANDLE·GUARD·HARNESS
Q’TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
1
T3242-14500 HANDLE, (R) ASSY
1
2
T3242-14300 • HANDLE, (R) COMP.
1
3
8488R00190 • LEVER COMP.
1
4
T3040-14511 • COLLAR
1
5
T3242-14370 • TUBE
1
6
3540-93120 • BAND
1
7
T3190-14201 HANDLE, (L) COMP.
1
8
3532-14102 BRACKET ASSY
1
9
3541-14172 • BRACKET
1
10
3541-14182 • CAP L
1
11
3257-14192 • CAP U
1
12
01252-30525 • BOLT
6
M5xL25
13
6358-24002 GUARD ASSY
1
14
6358-24102 • GUARD COMP.
1
16
6041-24140 • BLADE
1
17
3320-15310 • NUT
2
18
0263-30512 • SCREW
2
19
3541-24121 • CLAMP (T)
1
20
3540-24130 • BOLT
2
M6XL30
21
0290-20615 • WASHER
2
Q’TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
22
6565-17201 HARNESS ASSY
1
23
6565-17211 • HOOK COMP.
1
24
6565-17220 • PLATE
1
25 6565-17200-02 • PROTECTOR
1
26
T3190-17110 PROTECTOR
1
27
6468-91150 BOLT
4
M6xL20
28
T3242-12510 PLATE, name
1
