Zenoah BC3410FW User Manual
Page 4

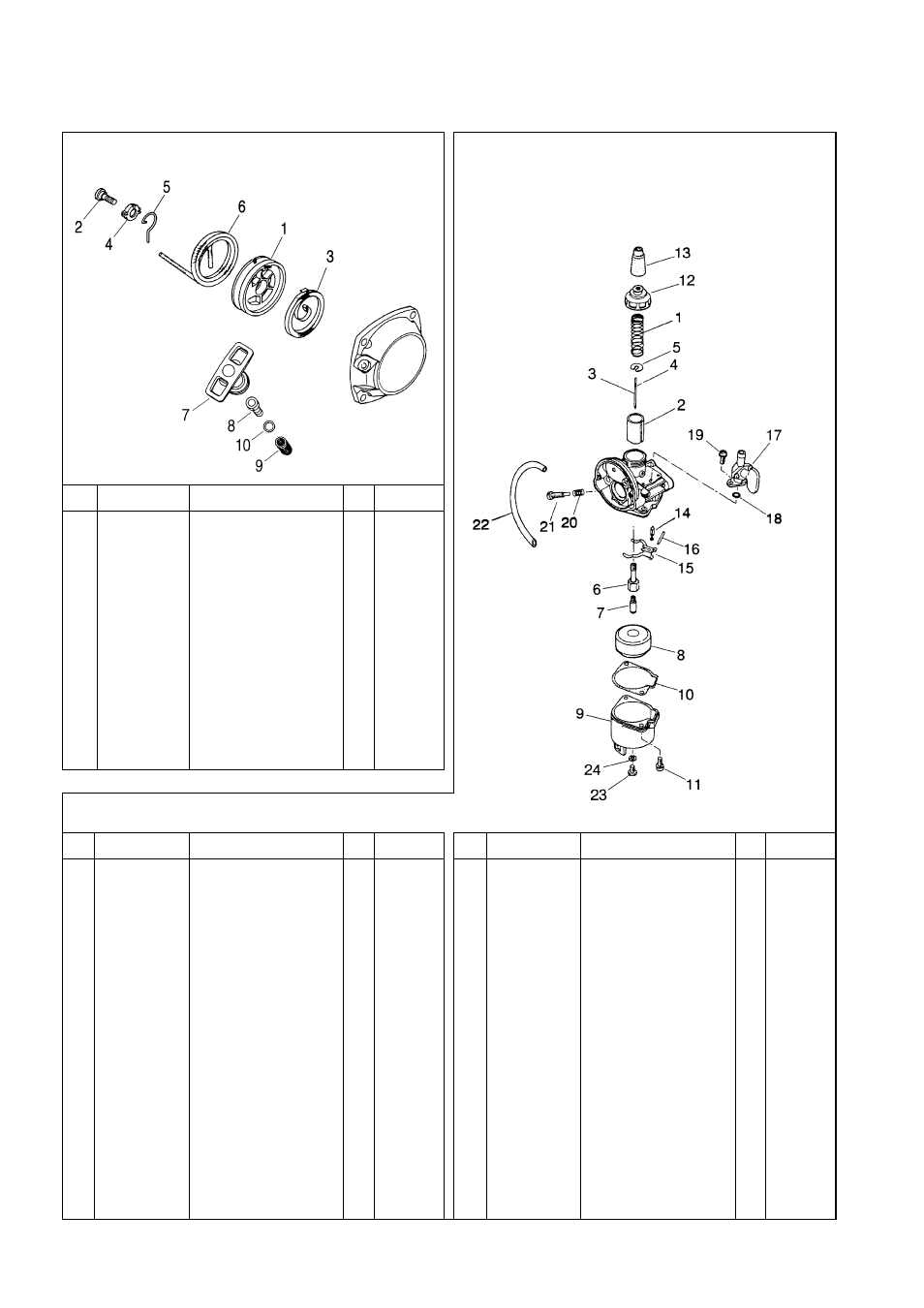

Fig.3 RECOIL STARTER
Fig.4 CARBURETOR
BC3410FW/BC4310FW
Q’TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
T1157-75100 RECOIL ASSY
1
1
4500-75120 • REEL
1
2
4500-75150 • SCREW
1
3
1850-75130 • SPRING, spiral
1
4
4500-75180 • COLLAR
1
5
4500-75190 • SWING ARM
1
6
4500-75160 • ROPE
1
ø3.5xL880
7
T1600-75310 • KNOB
1
8
T1600-75321 • COLLAR
1
9
T1157-75330 • SPRING
1
10
4820-75210 • WASHER
1
Q’TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
A
T1158-81000 CARB ASSY (G11P-1R)
1
BC3410
B
T1117-81000 CARB ASSY (G12P-1B)
1
BC4310
1A 1030-81000-14 • SPRING, throttle
1
BC3410
1B
1335-81060 • SPRING, throttle
1
BC4310
2A
1660-81151 • VALVE, throttle
1
BC3410
2B
4550-81150 • VALVE, throttle
1
BC4310
3A
5993-81210 • NEEDLE, jet
1
BC3410
3B
1614-81210 • NEEDLE, jet
1
BC4310
4 1030-81000-16 • CLIP
1
5A 1030-81000-17 • RECEIVE, spring
1
BC3410
5B
1335-81070 • RECEIVE, spring
1
BC4310
6
1400-81230 • JET, needle
1
7A
1620-81240 • JET, main #62
1
BC3410
7B
4550-81240 • JET, main #67
1
BC4310
8
1335-81180 • FLOAT
1
9
1400-81310 • CHAMBER, float
1
10
1400-81320 • PACKING, float chamber 1
11
0260-10412 • SCREW
2
M4xL12
12
1650-81122 • CAP, body
1
Q’TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
13
1141-81120 • CAP
1
14
1650-81361 • VALVE, needle
1
15
1400-81340 • HINGE
1
16
1400-81350 • PIN
1
17
1403-81500 • COCK ASSY
1
18
1400-81540 • O-RING
1
19
0260-10410 • SCREW
2
M4xL10
20
1650-81260 • SPRING
1
21A
1650-81251 • SCREW, aidle adjust
1
BC3410
21B
2751-81250 • SCREW, aidle adjust
1
BC4310
22A
1650-81710 • PIPE
1
BC3410
22B
4550-81710 • PIPE
1
BC4310
23
1400-81650 • SCREW, drain
1
24
1400-81660 • PACKING
1
