Zenoah BC3410FW User Manual
Page 5
BC3410FW/BC4310FW

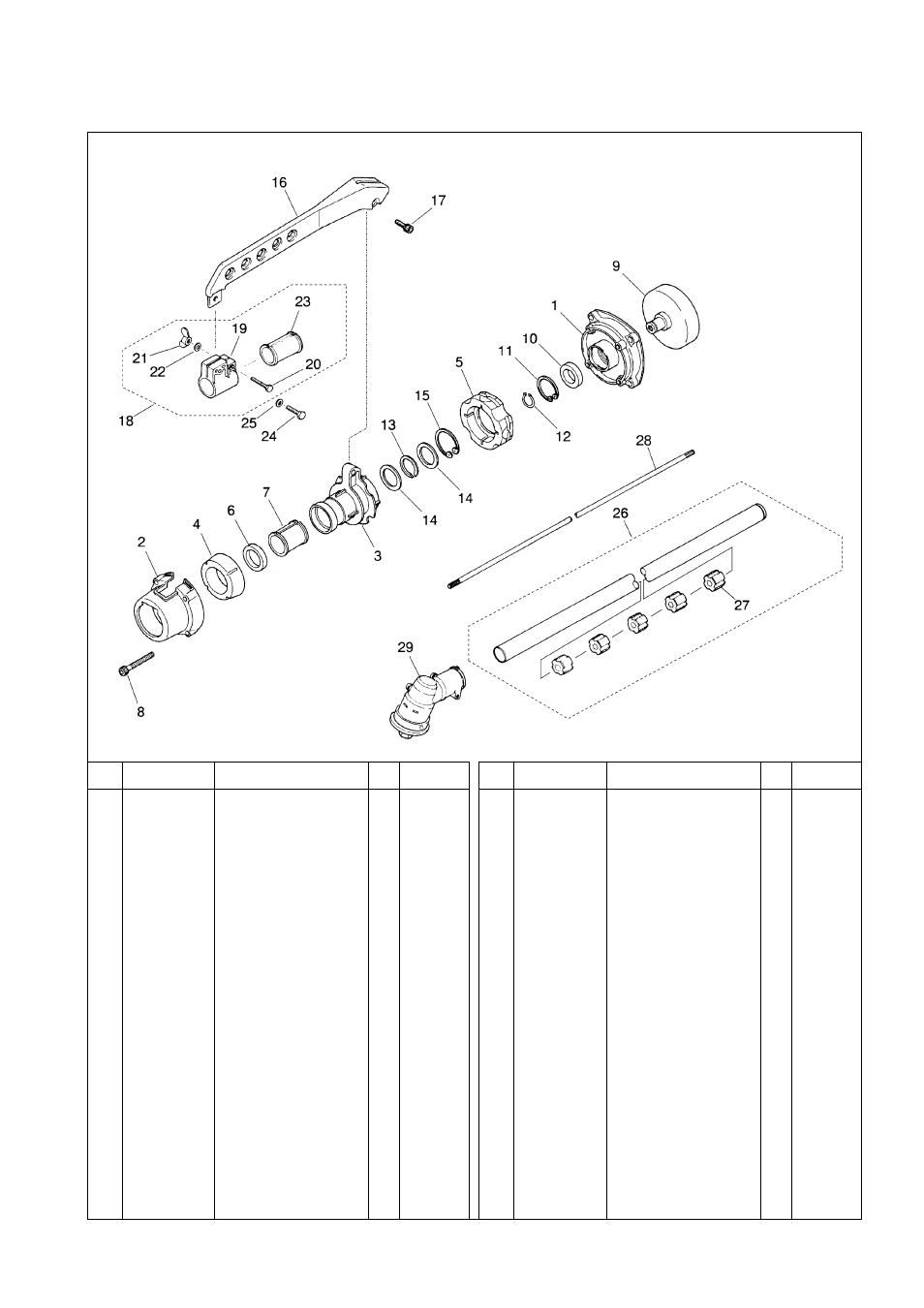

Fig.5 DRIVE SHAFT
Q’TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
1
4050-11110 HOUSING
1
2
4050-11150 CAP
1
3
4000-11210 JOINT
1
4
4050-11250 ABSORBER F
1
5
4050-11260 ABSORBER R
1
6
3180-13141 DUST SEAL
1
7
3541-11450 SPACER
1
8
01252-30530 BOLT
4
M5xL30
9
848B8151A1 DRUM
1
10
06004-06202 BEARING
1
11
04065-03515 RING
1
12
04064-01510 RING
1
13
3263-11410 RING
1
14
4000-11140 PLATE
2
15
04065-03715 RING
1
16
848B7338B1 HANGER
1
17
1491-21511 BOLT
1
M6xL30
18
3541-11441 BRACKET COMP.
1
19
3541-11432 • BRACKET
1
20
0224-00635 • BOLT
1
M6xL35
21
3540-11460 • NUT
1
Q’TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
22
01642-20608 • WASHER
1
23
3541-11450 • SPACER
1
24
0224-00625 BOLT
1
M6xL25
25
01642-20608 WASHER
1
26
848B745820 PIPE COMP.
1
D26xd23x
1440
27
3247-11321 • BUSH
5
28
3540-12212 SHAFT
1
D8x1480
Spline
29
4000-13000 GEARCASE ASSY
1
