BC3410FW/BC4310FW

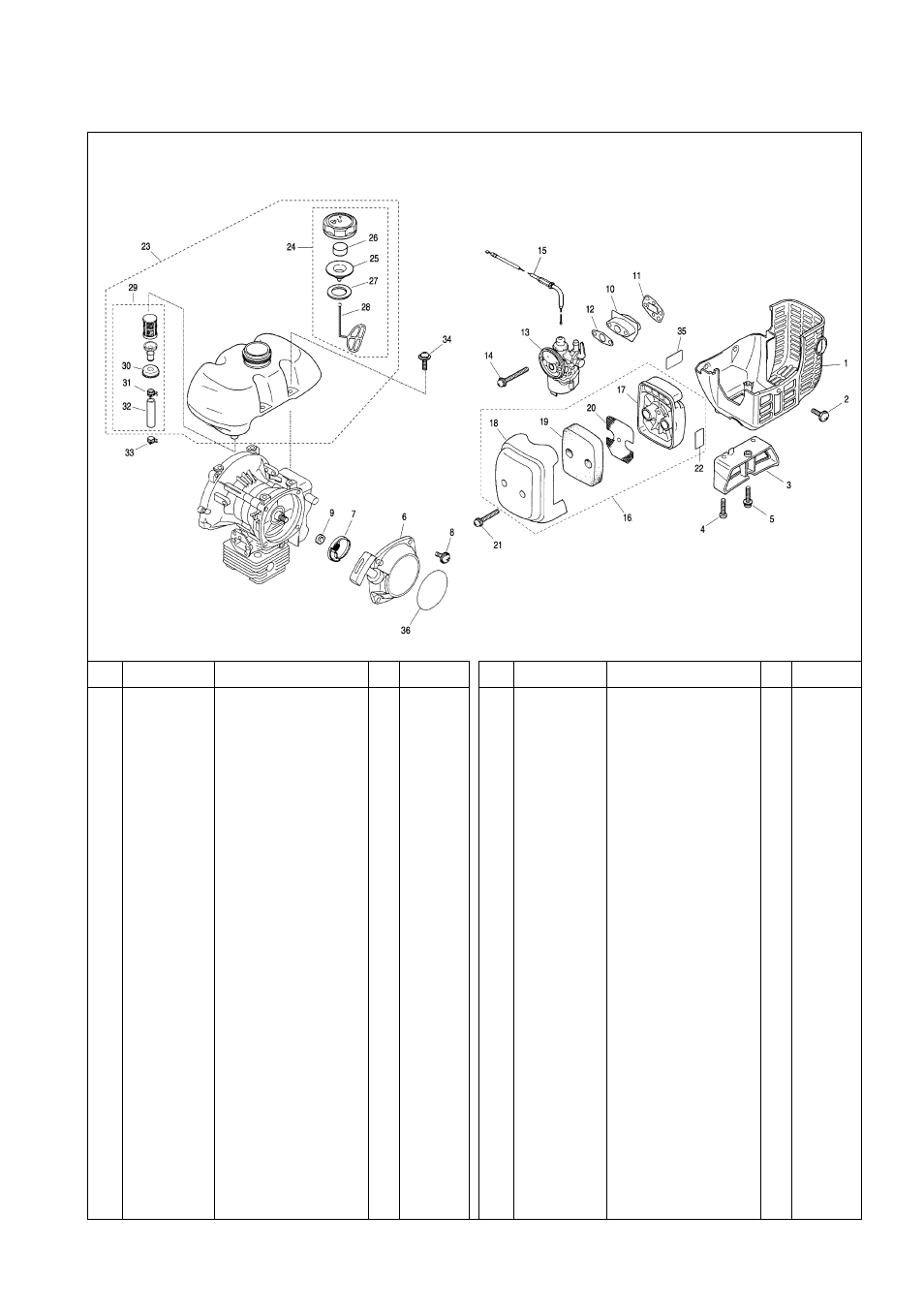

Fig.2 ENGINE UNIT
Q’TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
1
4570-32110 COVER
1
2
4500-32120 SCREW
3
M5xL12
3
4570-31900 STAND COMP.
1
4
3356-32210 SCREW
2
5
0263-90520 SCREW
1
M5xL20
6
T1157-75100 RECOIL ASSY
1
7
4500-75210 PULLEY
1
8
4500-75511 SCREW
4
M6xL14
9
4700-75310 COLLAR
1
10
4550-13160 INSULATOR
1
11
4500-13150 GASKET, insulator
1
12
4550-13130 GASKET, carburetor
1
13A
T1158-81000 CARB ASSY (G11P-1R)
1
BC3410
13B
T1117-81000 CARB ASSY (G12P-1B)
1
BC4310
14
0263-90565 SCREW
2
M5xL65
15
1416-83100 CABLE COMP.
1
16
4570-82000 CLEANER ASSY
1
17
1400-82113 • BODY
1
18
4570-82120 • COVER
1
19
1418-82130 • ELEMENT
1
20
1400-82141 • SCREEN
1
21
4550-82150 SCREW
2
M4xL25
22
1133-82060 LABEL
1
23
848G7G8501 TANK ASSY
1
24
2133-85302 • CAP ASSY
1
25
4570-85230 • • CAP INNER
1
Q’TY
Key# PART NUMBER
DESCRIPTION
NOTE
/UNIT
26
1030-85141 • • ELEMENT
1
27
4500-85220 • • PACKING
1
28
3317-57242 • • STOPPER
1
29
1400-85104 • JOINT ASSY
1
30
1400-85141 • • GROMMET
1
31
1000-08050 • • TUBE
1
L50
32
1410-86130 • • CLIP
1
33
3073-86130 CLIP
1
34
1600-86120 SCREW
4
M5xL22
35
1660-31121 LABEL
1
36A
T1072-75410 LABEL, recoil
1
BC3410
36B
848G5390C1 LABEL, recoil
1
BC4310
