2 connect the crw3200sx drive, Ff. (p. 12, P. 12) – Yamaha CRW3200SX User Manual
Page 21

12
1
Turn off the computer and all peripheral devices.
2
Check that the power switch on the rear panel of the
CRW3200SX drive is turned off (STANDBY).
3
Connect the SCSI cable to either one of the SCSI connectors on
the rear panel of the CRW3200SX drive.
Connect the other end of the SCSI cable to the SCSI card
connector of the computer or the other SCSI device.

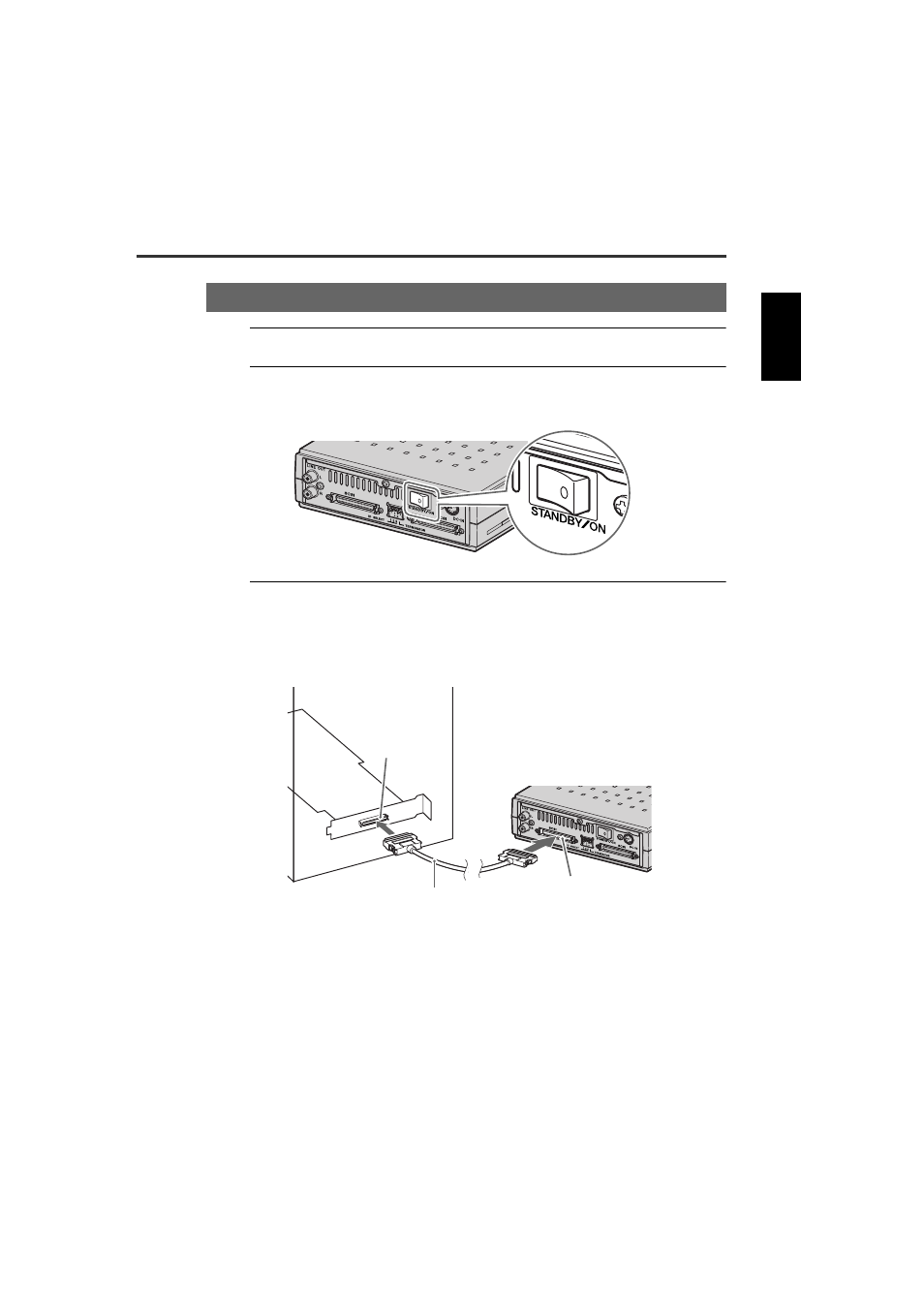

2 Connect the CRW3200SX Drive
SCSI connector
SCSI card
connector
CRW3200SX
rear panel
SCSI cable
