Rear panel – Yamaha CRW3200SX User Manual
Page 12
Names and Functions of Parts
3
➀
LINE OUT jacks (L/R)
Connect audio devices such as external
speakers.
➁
Power switch (STANDBY/ON)
Turns the power on/off. (P. 12, 15)
➂
DC-IN connector
Connects the included AC adapter. (P. 14)
➃
SCSI connectors
Connect the SCSI cable. (P. 12)
D-sub half-pitch 50-pin pin-type is used.
(P. 13)
➄
Dip switch
Sets the SCSI ID number and the
terminator. (P. 9)

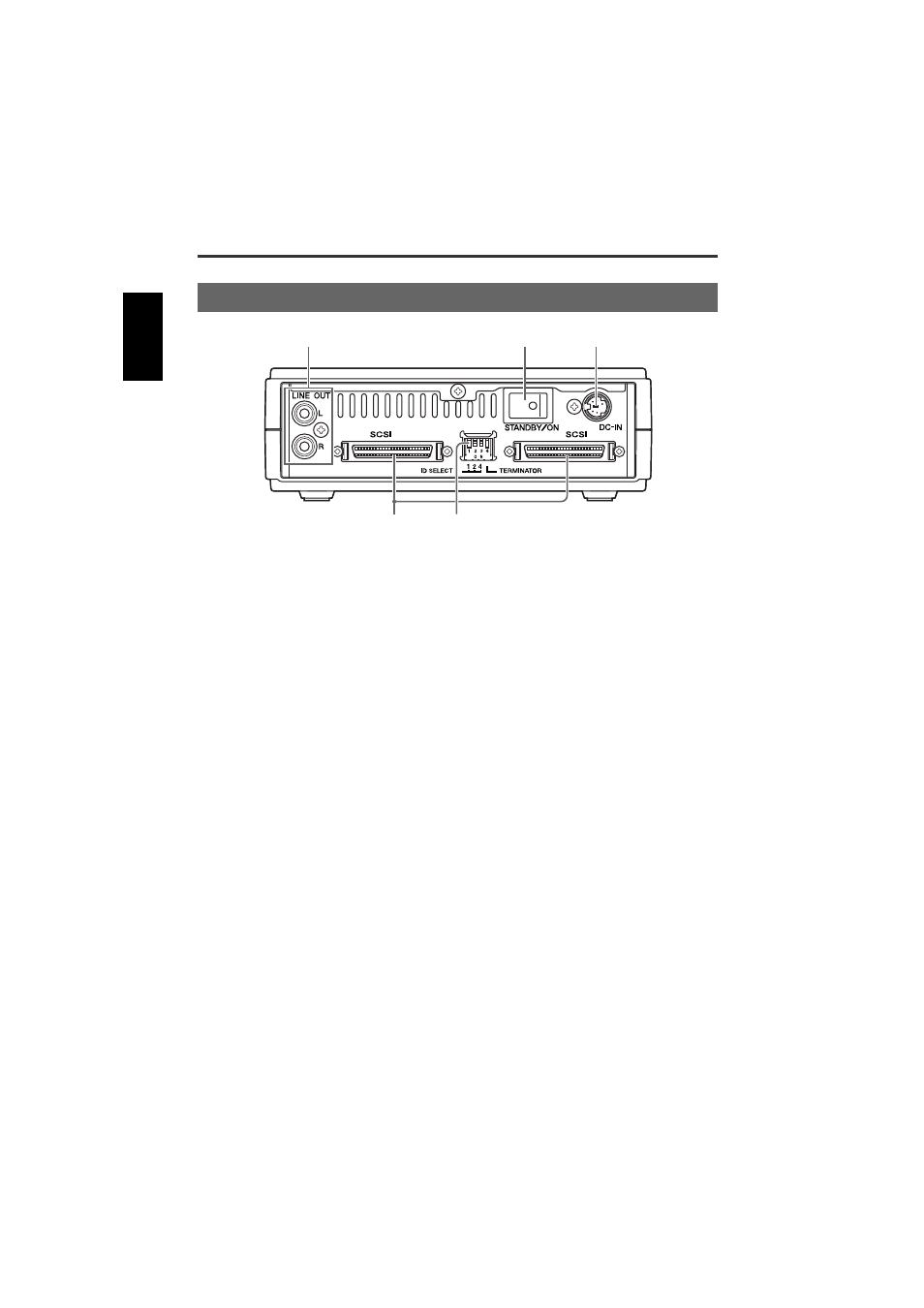

Rear Panel
➃
➄
➁
➀
➂
