ES-315-F Quick Start Guide
7
3 Insert bushings into the remaining vacant holes to cover
them.

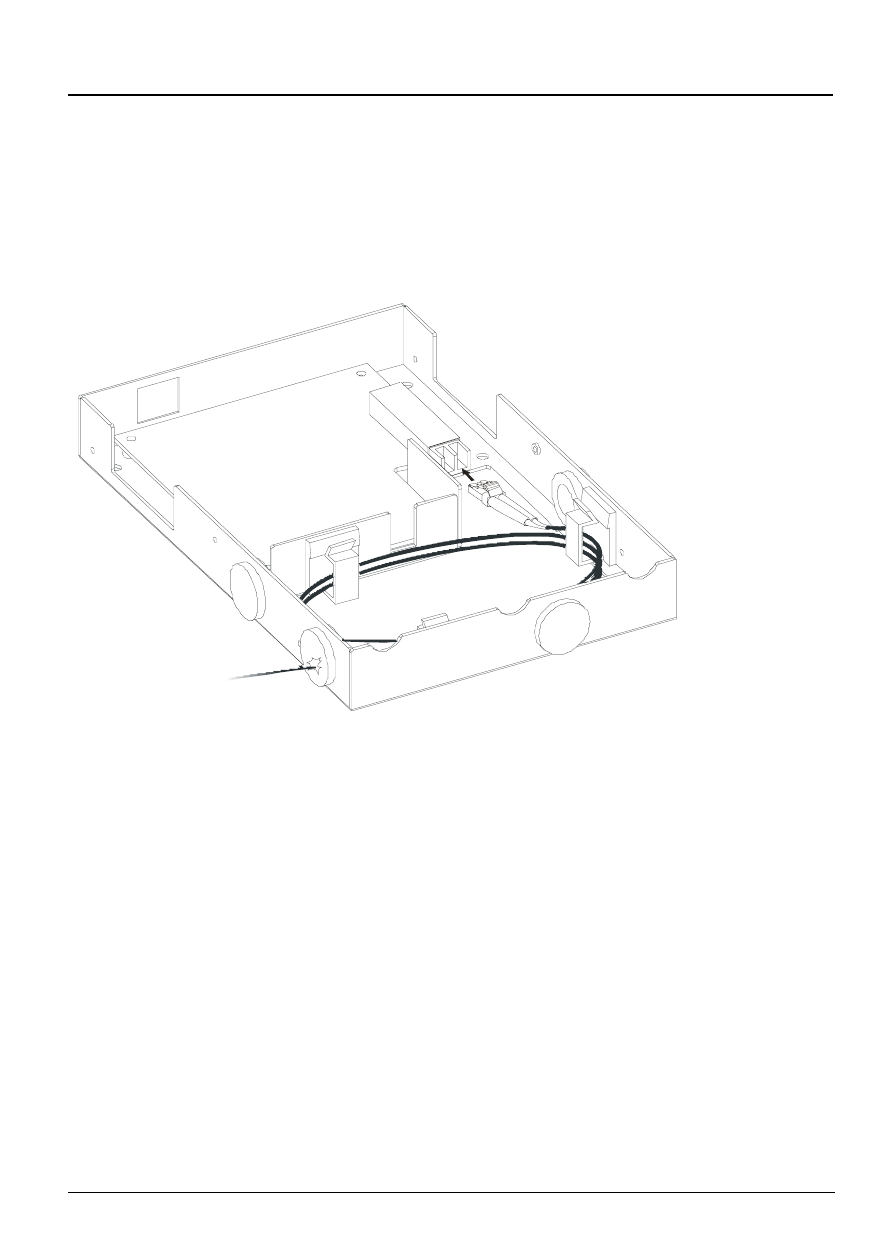

4 Coil excess fiber-optic cable around the inside of the ES-
315-F using the wire mounts as shown in the following
figure.
Connect The Fiber-optic Cable To The Transceiver
1 Remove the dust plugs from the SFP transceiver and the
cables.
A
A
A
A
