ES-315-F Quick Start Guide
1
1 Overview
Your ES-315-F is an intelligent layer-2 Ethernet switch with
four Fast Ethernet RJ-45 ports and one Fast Ethernet Small
Form-factor Pluggable slot. Use the ES-315-F to connect up
to four Ethernet devices to your network. The following

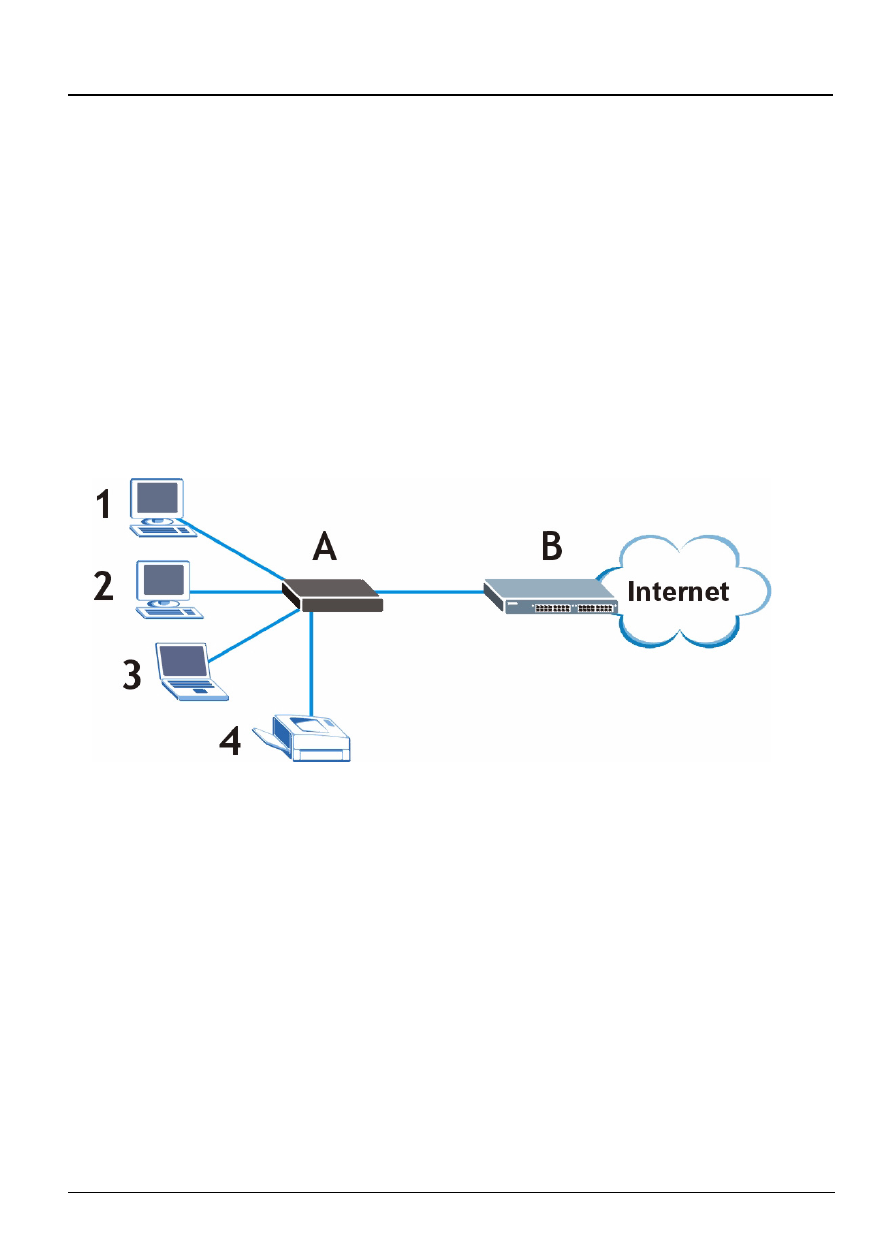

example shows your ES-315-F (A) connecting several
devices (1 ~ 4) and allowing them to communicate with one
another and access the Internet through the Internet Service
Provider’s network switch (B).
This Quick Start Guide shows you how to do the following:
Make Hardware Connections on page 2 .
Log In To the Web Configurator on page 14 .
Set the Password on page 16 .
Set Up Your Network on page 18 .
Wall-mount the ES-315-F on page 22 .
