ES-315-F Quick Start Guide
2 Make Hardware Connections
2.1 Connect the WAN
To make the ES-315-F’s fiber-optic connection you need to:
1 Open the ES-315-F.
2 Install an SFP transceiver.
3 Attach the wire mounts.
4 Insert a fiber-optic cable through a bushing and wrap it
around the wire mounts.
5 Connect the fiber-optic cable to the SFP transceiver.
"
Only qualified technicians should perform these
actions!
2.1.1 Open the ES-315-F

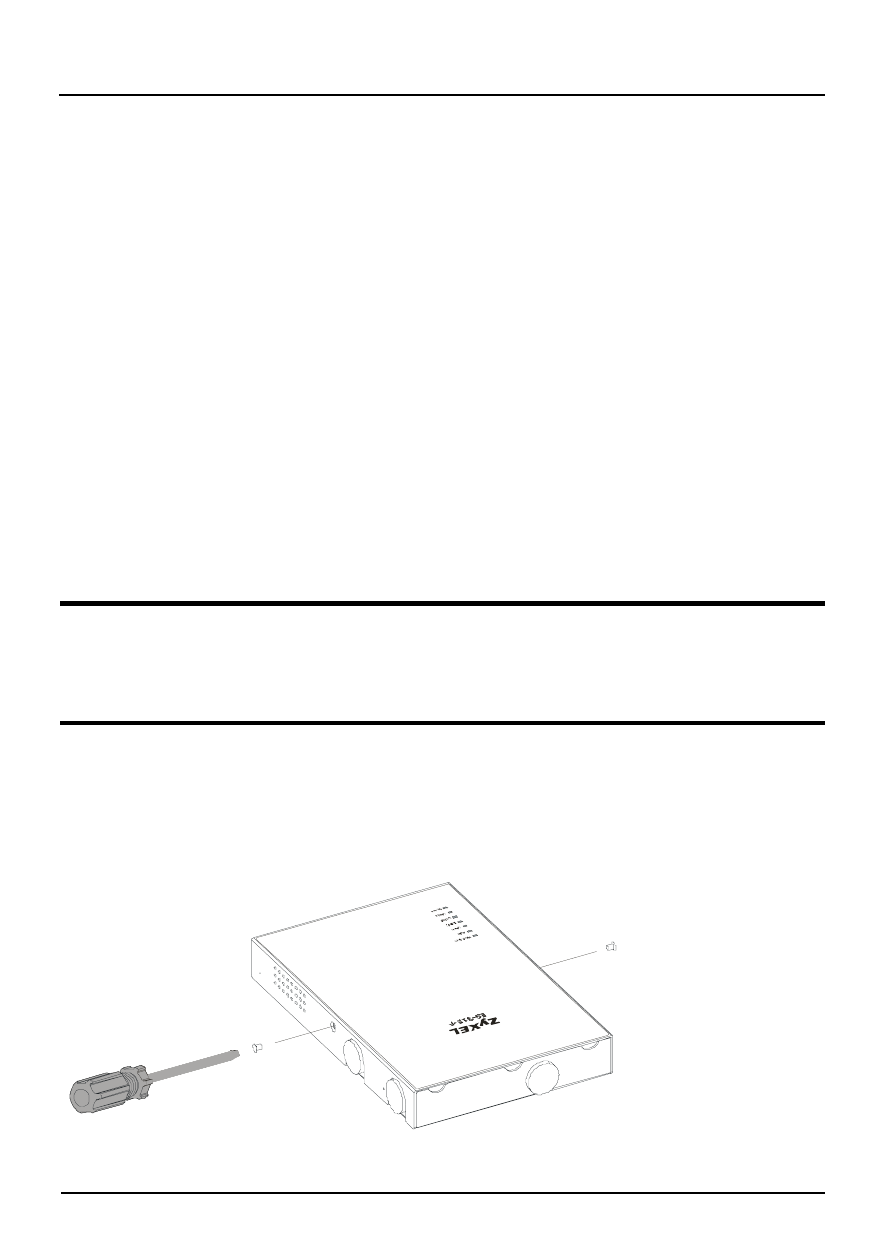

1 Remove both screws from the housing.
