54 P100i User’s Manual 980590-001 Rev. A
Troubleshooting
Troubleshooting the Ethernet Connection and Adapter
Network Status/Activity Indicator
A bi-color Network Status/Activity LED indicates network speed, established link, and
network activity.
1. If the LED is off, no link was established.
2. If the LED is solid GREEN , a 100Base link is established.
3. If the LED is flashing GREEN , a 100Base link is established, and network activity has
been detected.
4. If the LED is solid ORANGE , a 10Base link is established.
5. If the LED is flashing ORANGE , a 10Base link was established, and network activity has
been detected.
Network activity detected by this LED does not mean the activity is data for the print server.
The activity is all activity on the network seen on the Ethernet Adapter.

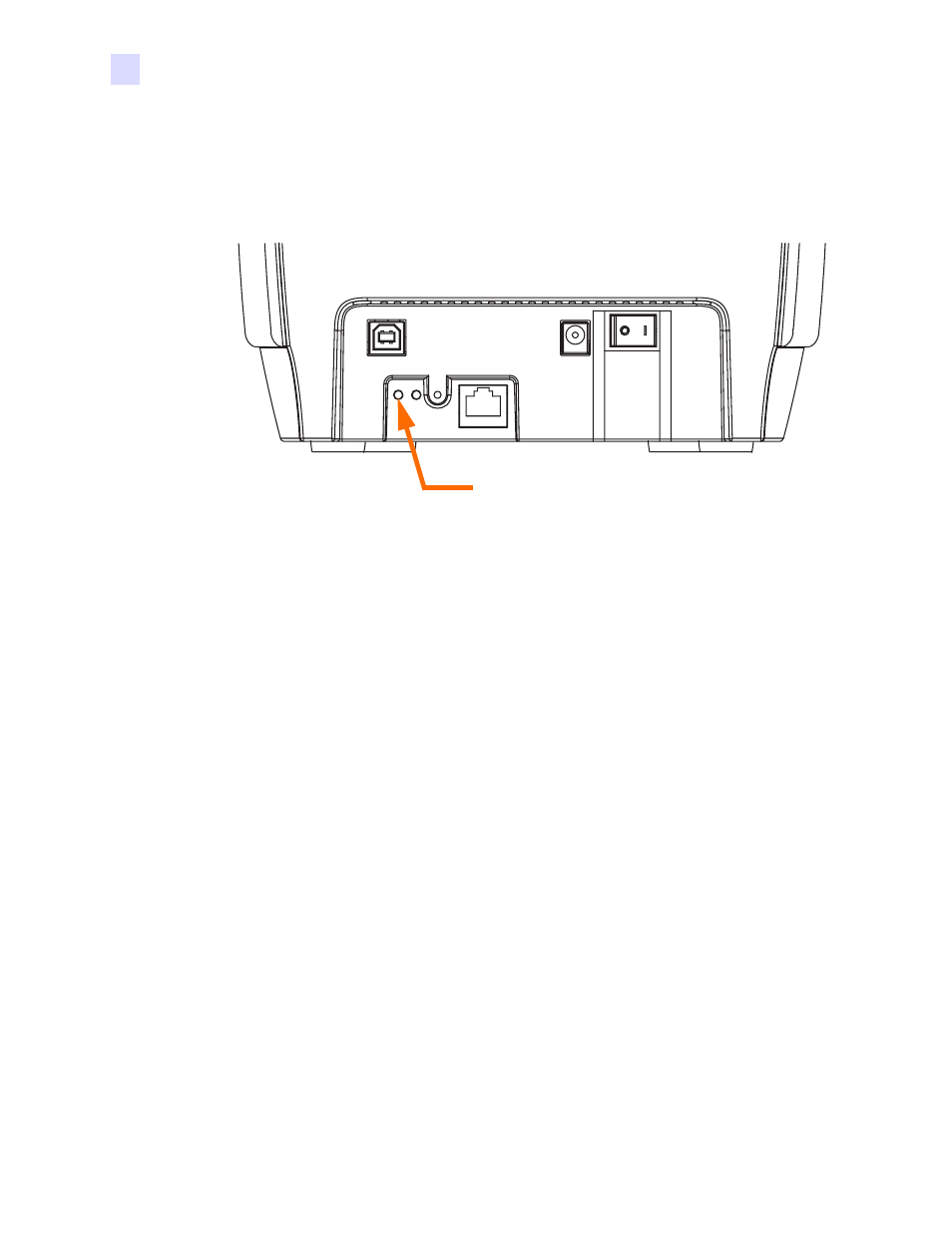

Network Status / Activity Indicator
