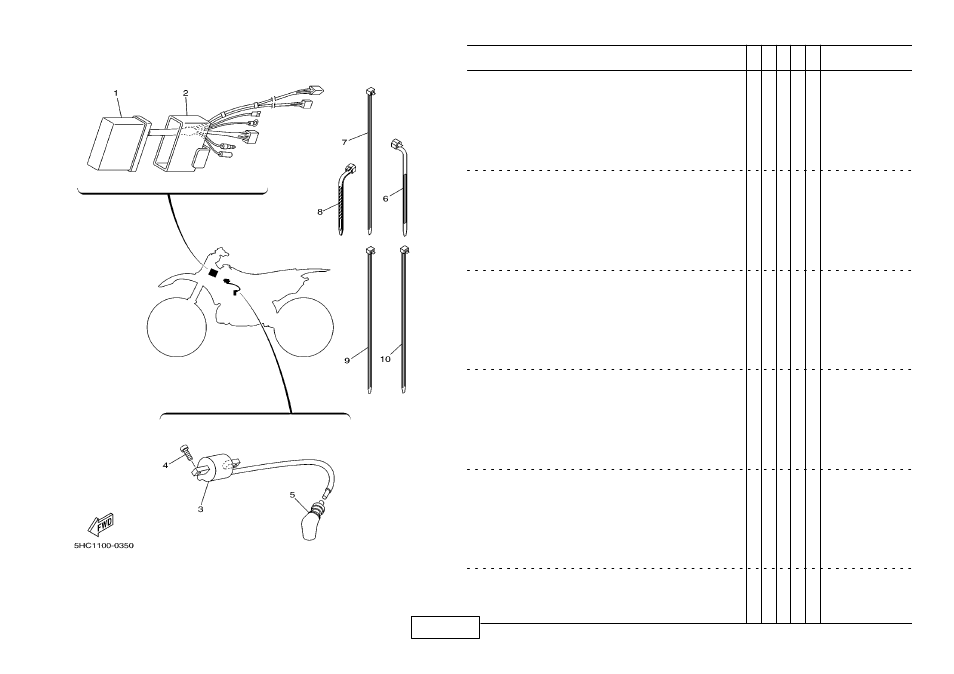

FIG. 35 ELECTRICAL 1
1 5HC–85540–00 C.D.I. UNIT ASSY 1 1 1 1
2 5CU–85546–00 BAND 1 1 1 1
3 5BE–82310–00 IGNITION COIL ASSY 1 1 1 1
4 95027–06016 BOLT, FLANGE 2 2 2 2
5 4PE–82370–10 PLUG CAP ASSY 1 1 1 1
6 90464–15195 CLAMP 1 1 1 1
7 90464–50255 CLAMP 2 2 2 2
8 90464–13073 CLAMP 1 1 1 1
9 90464–50255 CLAMP 1 1 1 1
10 90464–50255 CLAMP 1 1 1 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5HC1 5HC2 5HC3 5HC4
