C
11

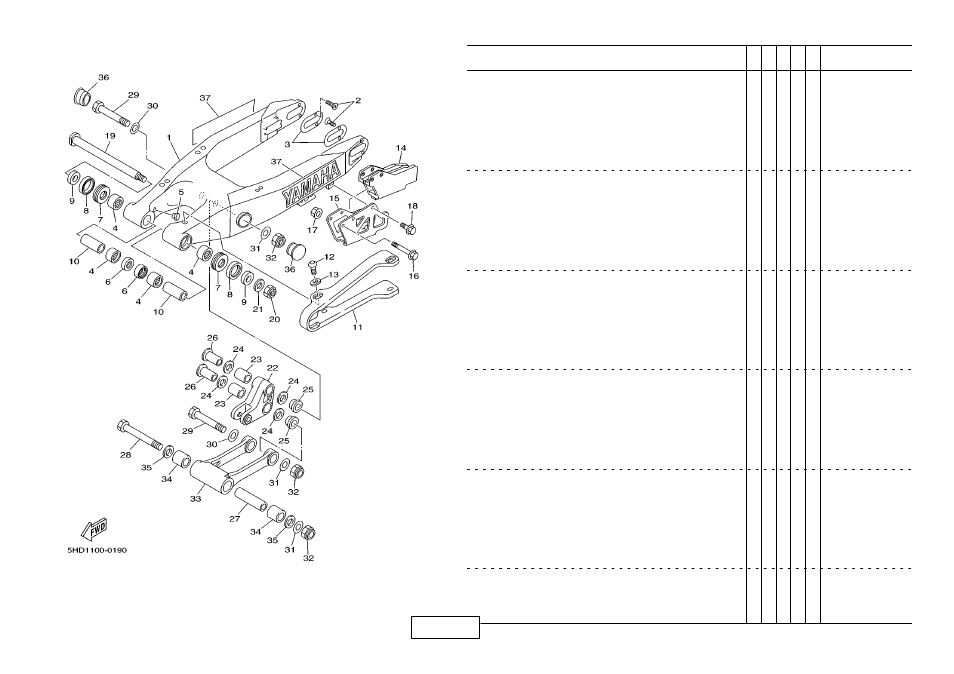

FIG. 19 REAR ARM
1 5CU–22110–00 REAR ARM COMP. 1 1 1 1
2 90151–04048 SCREW, COUNTERSUNK 4 4 4 4
3 5ET–22355–00 PATCH 2 2 2 2
4 93317–22262 BEARING 4 4 4 4
5 90338–16148 PLUG 2 2 2 2
6 93106–22019 OIL SEAL (DC 22–28–8) 2 2 2 2
7 93342–22217 BEARING 2 2 2 2
8 93109–28043 OIL SEAL 2 2 2 2
9 90387–1714R COLLAR 2 2 2 2
10 90387–1714S COLLAR 2 2 2 2
11 4EW–22151–20 SEAL, GUARD 1 1 1 1
12 90110–05201 BOLT, HEXAGON SOCKET HEAD 4 4 4 4
13 5ET–22156–00 WASHER, PLATE 4 4 4 4
14 4XM–22199–00 SUPPORT, CHAIN 1 1 1 1
15 4XM–22128–00 COVER, THRUST 1 1 1 1 1
16 95027–06050 BOLT, FLANGE 2 2 2 2
17 90179–06568 NUT 2 2 2 2
18 95027–06010 BOLT, FLANGE 1 1 1 1
19 5DH–22141–00 SHAFT, PIVOT 1 1 1 1
20 90185–16127 NUT, SELF–LOCKING 1 1 1 1
21 90201–164H4 WASHER, PLATE 1 1 1 1
22 5ET–2217A–00 ARM, RELAY 1 1 1 1
23 93315–32056 BEARING 2 2 2 2
24 93109–20076 OIL SEAL 4 4 4 4
25 90387–164N2 COLLAR 2 2 2 2
26 90387–164N3 COLLAR 2 2 2 2
27 90387–167Y9 COLLAR 1 1 1 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5HC1 5HC2 5HC3 5HC4
