Yamaha YZ250M - Manual (Page 21)

C
4

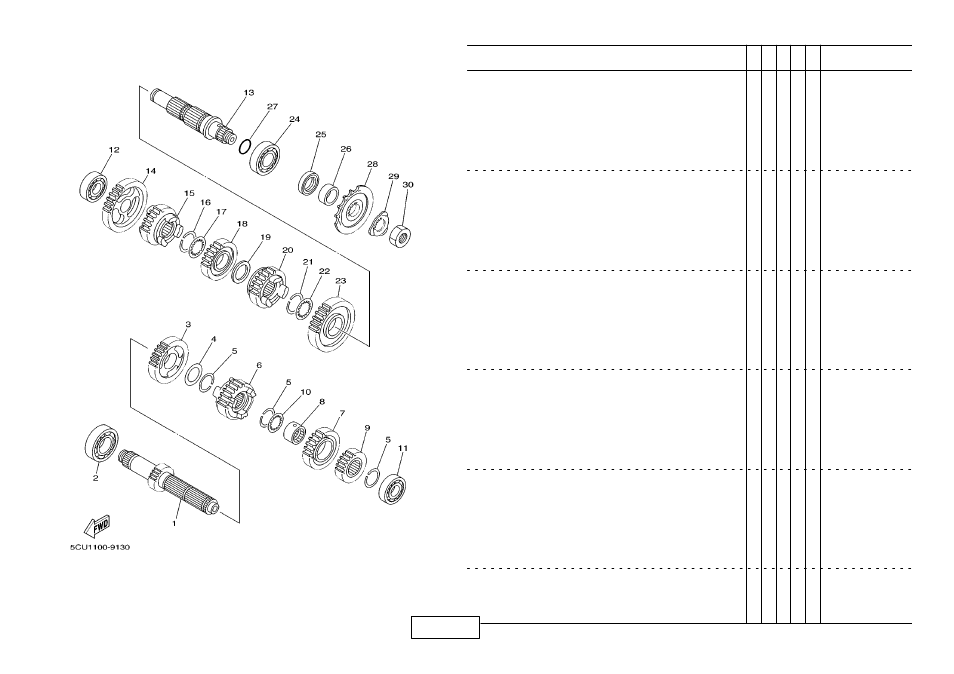

FIG. 13 TRANSMISSION
1 5BE–17411–00 AXLE, MAIN 1 1 1 1
2 93306–20540 BEARING 1 1 1 1
3 5BE–17151–00 GEAR, 5TH PINION 1 1 1 1
4 90201–253K0 WASHER, PLATE (T=1.0) 1 1 1 1
5 93440–25084 CIRCLIP 3 3 3 3
6 5CU–17131–00 GEAR, 3RD PINION 1 1 1 1
7 5BE–17141–10 GEAR, 4TH PINION 1 1 1 1
8 90387–2113G COLLAR 1 1 1 1
9 5BE–17121–00 GEAR, 2ND PINION 1 1 1 1
10 90209–21332 WASHER 1 1 1 1
11 93306–00442 BEARING 1 1 1 1
12 93306–00426 BEARING 1 1 1 1
13 5BE–17421–00 AXLE, DRIVE 1 1 1 1
14 5BE–17211–00 GEAR, 1ST WHEEL 1 1 1 1
15 5BE–17251–00 GEAR, 5TH WHEEL 1 1 1 1
16 93440–25084 CIRCLIP 1 1 1 1
17 90209–21332 WASHER 1 1 1 1
18 5BE–17231–00 GEAR, 3RD WHEEL 1 1 1 1
19 90201–253K0 WASHER, PLATE (T=1.0) 1 1 1 1
20 5BE–17241–10 GEAR, 4TH WHEEL 1 1 1 1
21 93440–28062 CIRCLIP 1 1 1 1
22 90209–26348 WASHER 1 1 1 1
23 5BE–17221–00 GEAR, 2ND WHEEL 1 1 1 1
24 93306–20574 BEARING 1 1 1 1
25 93102–32337 OIL SEAL 1 1 1 1
26 90387–2515B COLLAR 1 1 1 1
27 93210–22298 O–RING 1 1 1 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5HC1 5HC2 5HC3 5HC4
