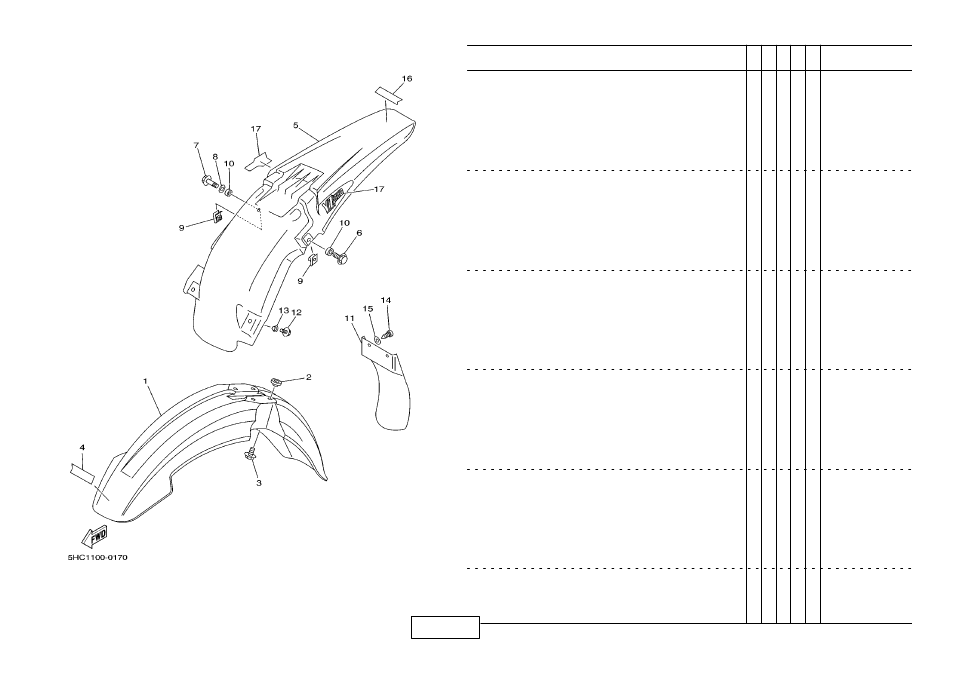

FIG. 17 FENDER
1 5HD–21511–00 FENDER, FRONT 1 1 1 1
2 3JD–21748–00 COLLAR 4 4 4 4
3 90119–06096 BOLT, WITH WASHER 4 4 4 4
4 99241–00080 EMBLEM, YAMAHA 1 1 1 1
5 5BE–21611–10 FENDER, REAR 1 1 1 1
6 90119–06192 BOLT, WITH WASHER 1 1 1 1
7 95027–06030 BOLT, FLANGE 1 1 1 1
8 90201–06071 WASHER, PLATE 1 1 1 1
9 90183–06023 NUT, SPRING 2 2 2 2
10 90387–0701A COLLAR 2 2 2 2
11 4ES–21642–00 GUARD, FLAP 1 1 1 1
12 95027–06020 BOLT, FLANGE 2 2 2 2
13 90387–06009 COLLAR 1 1 1 1
14 97707–60016 SCREW, TAPPING 2 2 2 2
15 90201–06557 WASHER, PLATE 2 2 2 2
16 99241–00080 EMBLEM, YAMAHA 1 1 1 1
17 5CU–21781–00 EMBLEM 1 2 2 2 2
PART NO. DESCRIPTION REMARKS
REF.
NO.
5HC1 5HC2 5HC3 5HC4
