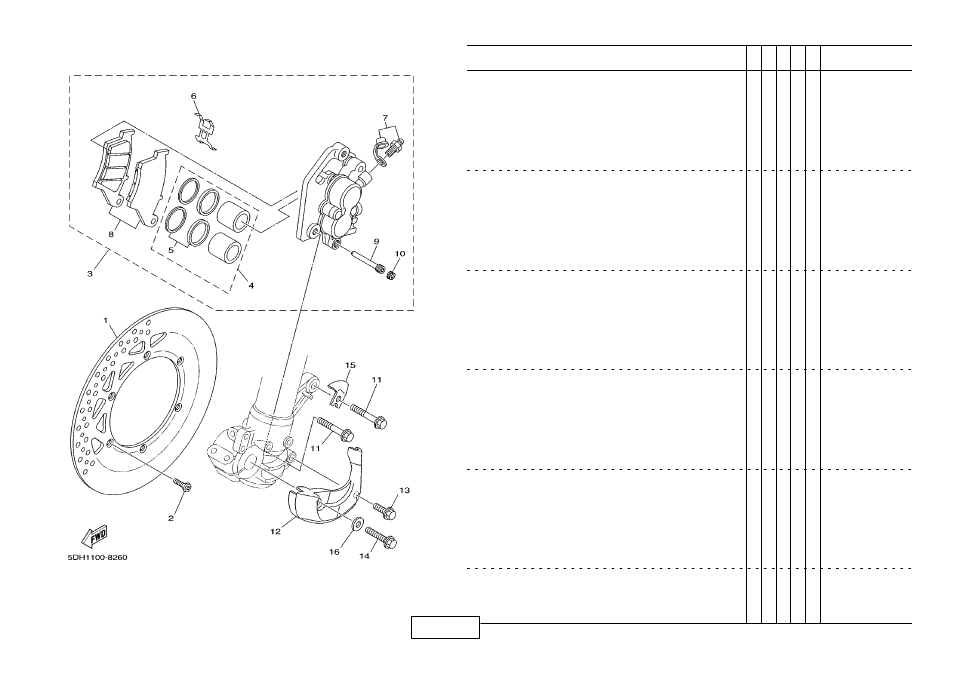

FIG. 26 FRONT BRAKE CALIPER
1 4XM–2582T–00 DISC, BRAKE 1 1 1 1
2 90149–06327 SCREW 6 6 6 6
3 5DH–2580T–00 CALIPER ASSY (LEFT) 1 1 1
5DH–2580T–10 CALIPER ASSY (LEFT) 1
4 4EW–W0057–00 .PISTON ASSY, CALIPER 1 1 1 1
5 3JD–W0047–00 ..CALIPER SEAL KIT 1 1 1 1
6 5DH–25919–00 .SUPPORT, PAD 1 1 1 1
7 1UY–W0048–50 .BLEED SCREW KIT 1 1 1 1
8 5DH–W0045–00 .BRAKE PAD KIT 1 1 1
5DH–W0045–10 .BRAKE PAD KIT 1
9 5DH–25933–00 .PIN, PAD 1 1 1 1
10 5DH–25916–00 .PLUG 1 1 1 1
11 90105–08659 BOLT, WASHER BASED 2 2 2 2
12 5DH–2314E–00 COVER, HOSE 1 1 1 1
13 95827–06012 BOLT, FLANGE 1 1 1 1
14 95027–08020 BOLT, FLANGE 1 1 1 1
15 5DH–25875–00 HOLDER, BRAKE HOSE 1 1 1 1 1
16 92907–08200 WASHER 1 1 1 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5HC1 5HC2 5HC3 5HC4
