Page 81: Maintenance instructions
Maintenance Instructions
REPLACING/REPAIRING
77
Jackshaft Drive Belt
1.
To remove the jackshaft drive belt:
a.
Remove the engine PTO drive belt, as
described in previous section.

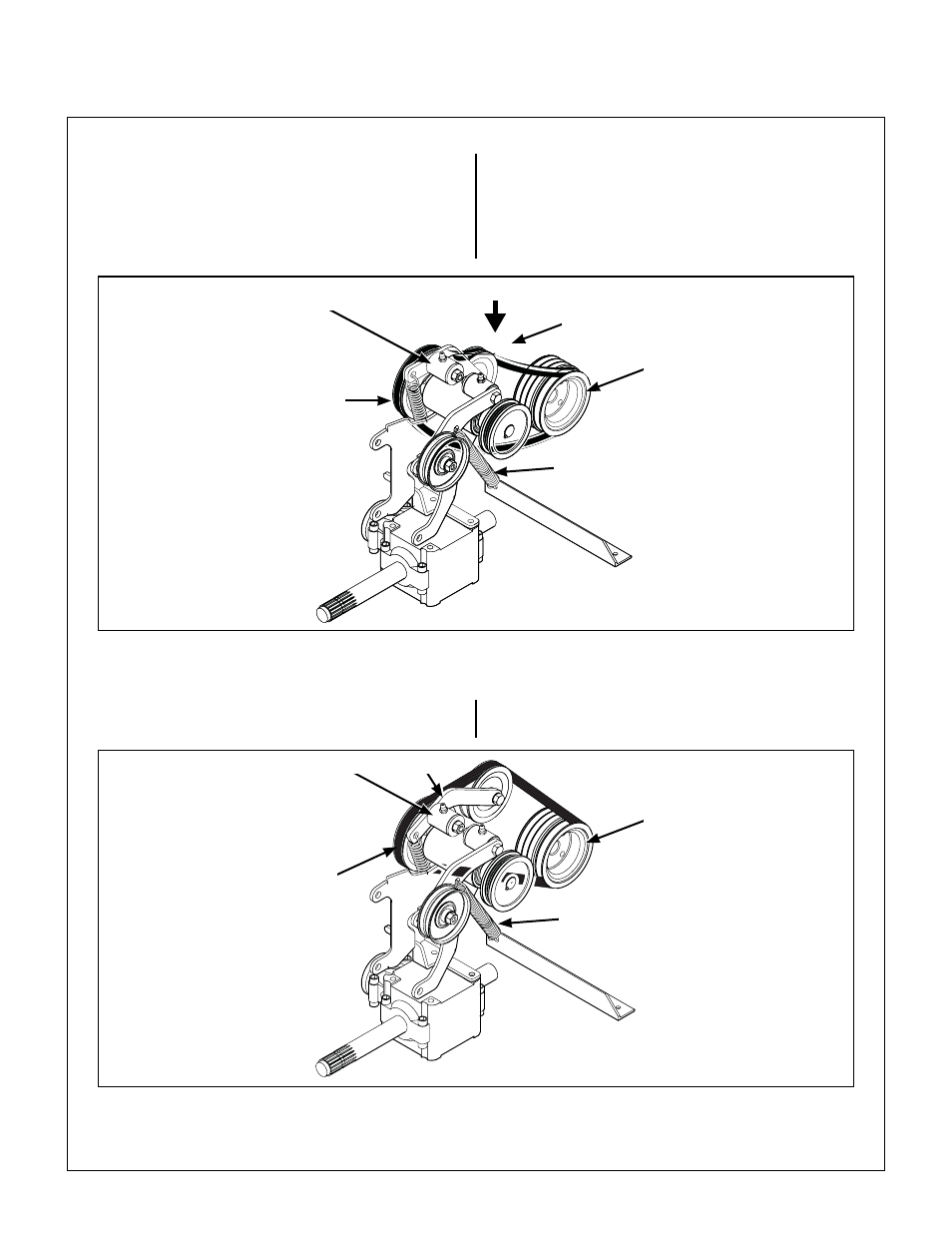

Jackshaft Drive Belt (Engaged)
Jackshaft Drive Belt (Disengaged)
Idler Pulley
Tension Spring
Jackshaft
Drive Belt
Push Idler Pulley Down to Relax Belt
Jackshaft
Engine
Pulley
b.
Relax the belt by depressing the spring-
loaded idler arm.
c.
Roll the belt off the jackshaft pulley and
remove.
2.
Reverse the removal procedure to replace the
jackshaft drive belt.
Idler Arm
Jackshaft
Drive Belt
Jackshaft
Tension Spring
Engine
Pulley
