Operating Instructions
52
Hi-Dump
®
Option
When equipped with the optional Hi-Dump
®
system,
the operator raises and dumps the catcher while sit-
ting in the seat. Two toggle switches operate
independent hydraulic cylinders to raise and lower
the catcher. The back door automatically opens and
closes during the dump cycle.

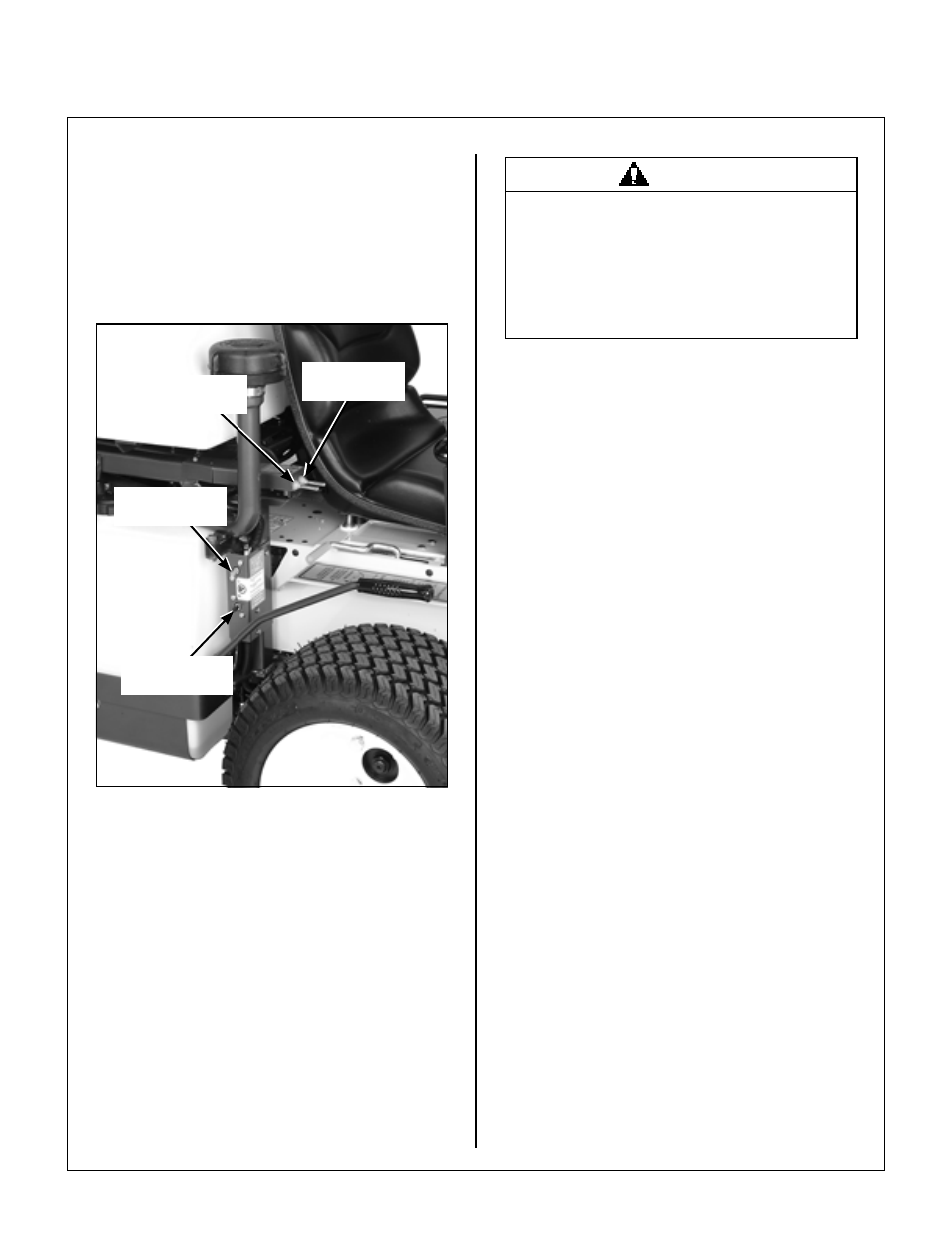

Lift/Dump Control Switches and
Auxiliary Power Terminals
Hold the Lift toggle switch UP or DOWN to RAISE or
LOWER the catcher.
NOTE: If grass tends to hang up in the catcher af-
ter raising the catcher with the Hi-Dump
®
, “jiggle”
the steering levers and make the tractor bounce a lit-
tle to unstick the grass and make it slide out of the
catcher.
NOTE: With the Hi-Dump
®
mechanism in the nor-
mal operating position (catcher down), the catcher
cannot be manually raised. In the case of a dead
battery, use the auxiliary power terminals to charge/
jump the battery to operate the Hi-Dump
®
.
(-) Auxiliary
Power Terminal
(+) Auxiliary
Power Terminal
Toggle Switch
(Dump)
Toggle Switch
(Lift)
CAUTION
The operator should be in the seat and by-
standers stay clear when the Hi-Dump
®
is
operating. The Hi-Dump
®
is used ONLY
for tailgate dumping. Do not attempt to
use the optional dump bag or any other
bag with the Hi-Dump
®
.
