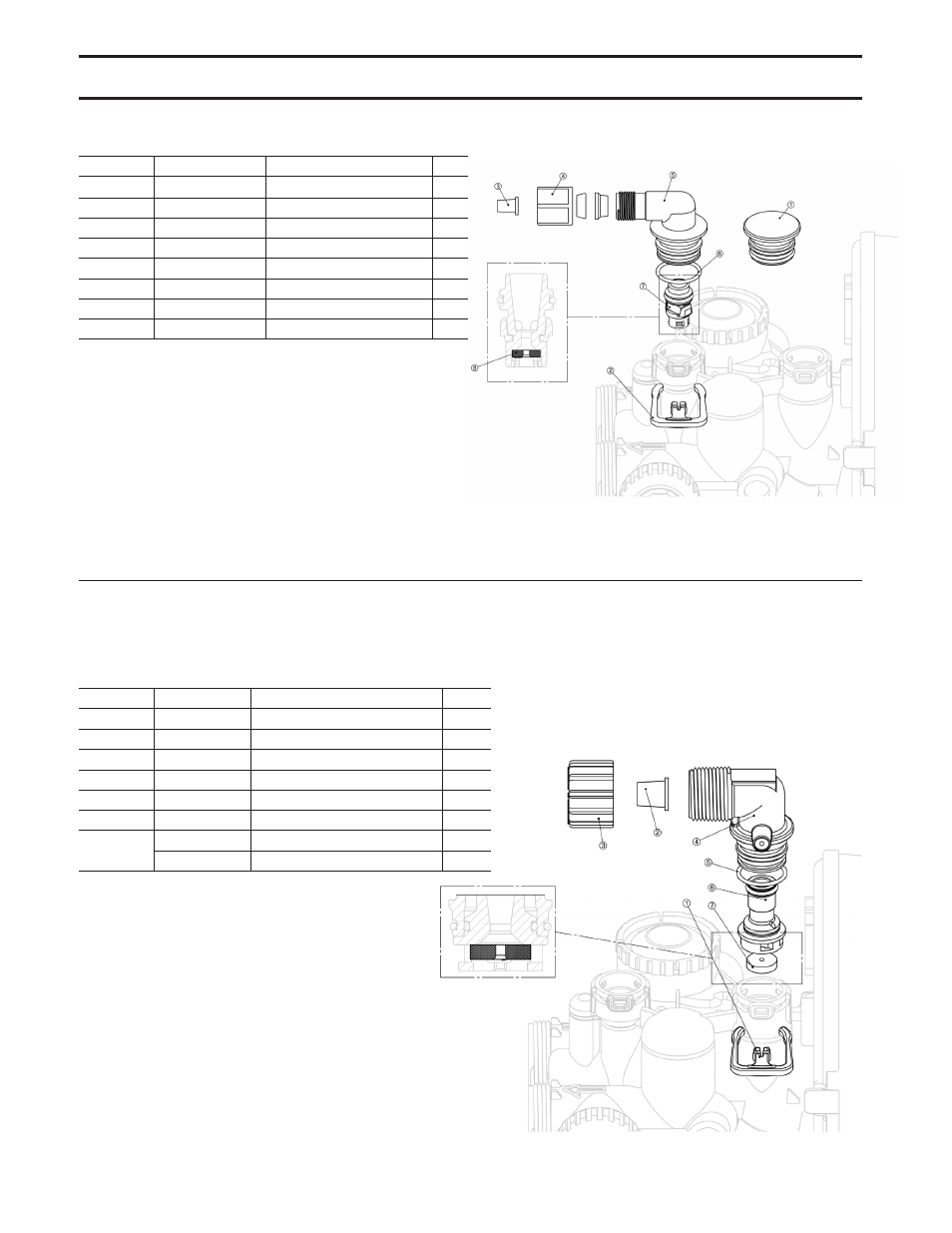

DRAWING AND PART NUMBERS
Drawing No. Order No. Description Qty.
1 KC12V3195-01 W100SM Refill Port Plug ASY **
2 KC12H4615 Elbow Locking Clip 1
3 KC12JCP-P-6 Polytube insert 3/8 1
4 KC12JCPG-6PBLK Nut 3/8 1
5 KC12H4613 Elbow Cap 3/8 1
6 KC12V3163 O-ring 019 1
7 KC12V3165-01 W100SM RFC Retainer ASY 1
8 KC12V3182 W100SM RFC 1
*Assembly includes WS1 RFC.
**This part is required for backwash only systems.
DRAIN LINE - 3/4"
Drawing No. Order No. Description Qty.
1 KC12H4615 Elbow Locking Clip 1
2 KC12PKP10T58 Polytube insert 5/8 Option
3 KC12V3192 W100SM Nut 3/4 Drain Elbow Option
4 KC12V3158-01 W100SM Drain Elbow 3/4 Male ASY 1
5 KC12V3163 O-ring 019 1
6 KC12V3159-01 W100SM DLFC Retainer ASY 1
7 KC12V3162-022 W100SM DLFC 2.2 gpm for 3/4 *
KC12V3162-027 W100SM DLFC 2.7 gpm for
