42 Parts
MAN0260 (8/6/2004)

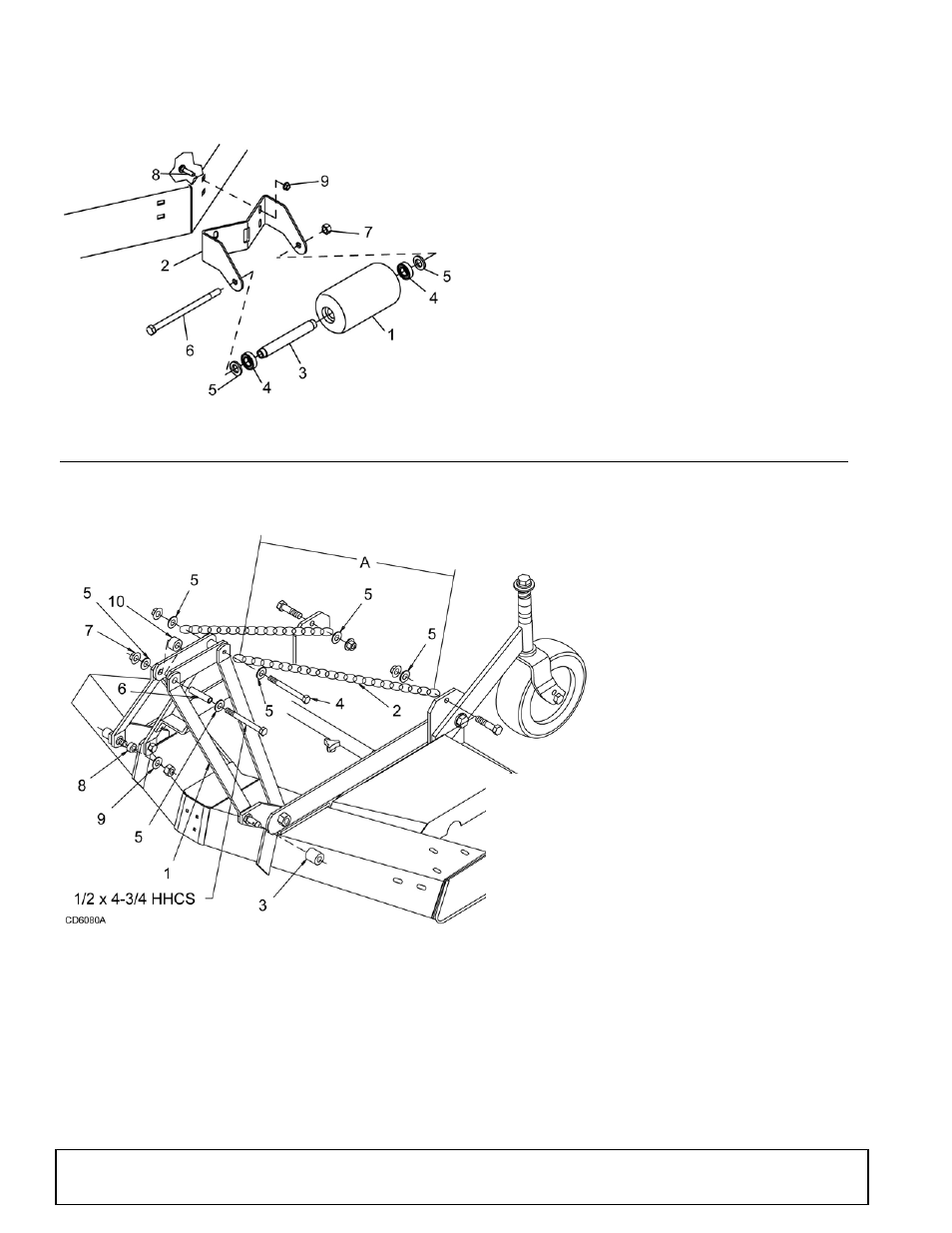

RDC54, RD60 & RD72 FRONT ROLLER ASSEMBLY (OPTIONAL)
RD60 & RD72 QUICK HITCH KIT (OPTIONAL)
REF PART QTY DESCRIPTION
A 1008035KT Front roller kit, complete
1 1006418 1 Roller
2 1008034 1 Roller bracket
3 1006420 1 Spacer
4 35193 2 Bearing
5 3598 2 1/2 Flat washer SAE
6 38107 1 1/2 NC x 9 HHCS GR5
7 11900 1 1/2 NC Flanged locknut
8 24890* 4 3/8 NC x 1-1/4 Carriage bolt
9 14350* 4 3/8 NC Flanged locknut
* Standard Hardware, Obtain Locally
REF PART QTY DESCRIPTION
1 1003692 2 Link, offset .38 x 2.0 x 15
2 1005401 2 Chain 3/8 proof coil 38 link
3 38214 2 Sleeve, .91 x 1.44 x 1.25
4 13563 1 Screw, HHCS 1/2 NC x 6 GR5
5 * 6 Washer, flat 1/2 ZP
6 29368 1 Sleeve, .50 x .75 x 3.38
7 11900 1 Nut, flange lock 1/2 NC
8 29281 2 Sleeve, 7/8 x 1-1/8 x 19/32 HT
9 * 2 Washer, flat 7/8
10 1003614 1 Sleeve, .81 x 1.25 x 1.81
* Standard Hardware, Obtain Locally
