30 Assembly
MAN0260 (8/6/2004)
Install Front Roller (Optional)
1. Insert four carriage bolts (8) through the front
mower frame from inside out.
2. Place roller bracket (2) over bolts; then install
flange lock nuts (9) on bolts and tighten.
3. Place front roller (1), sleeve (3), bearings (4), and
washers (5) in roller bracket as shown in Figure 29.
4. Insert cap screw (3) through bracket and roller.
5. Secure with flanged lock nut (2). Do not
overtighten, roller must spin freely.

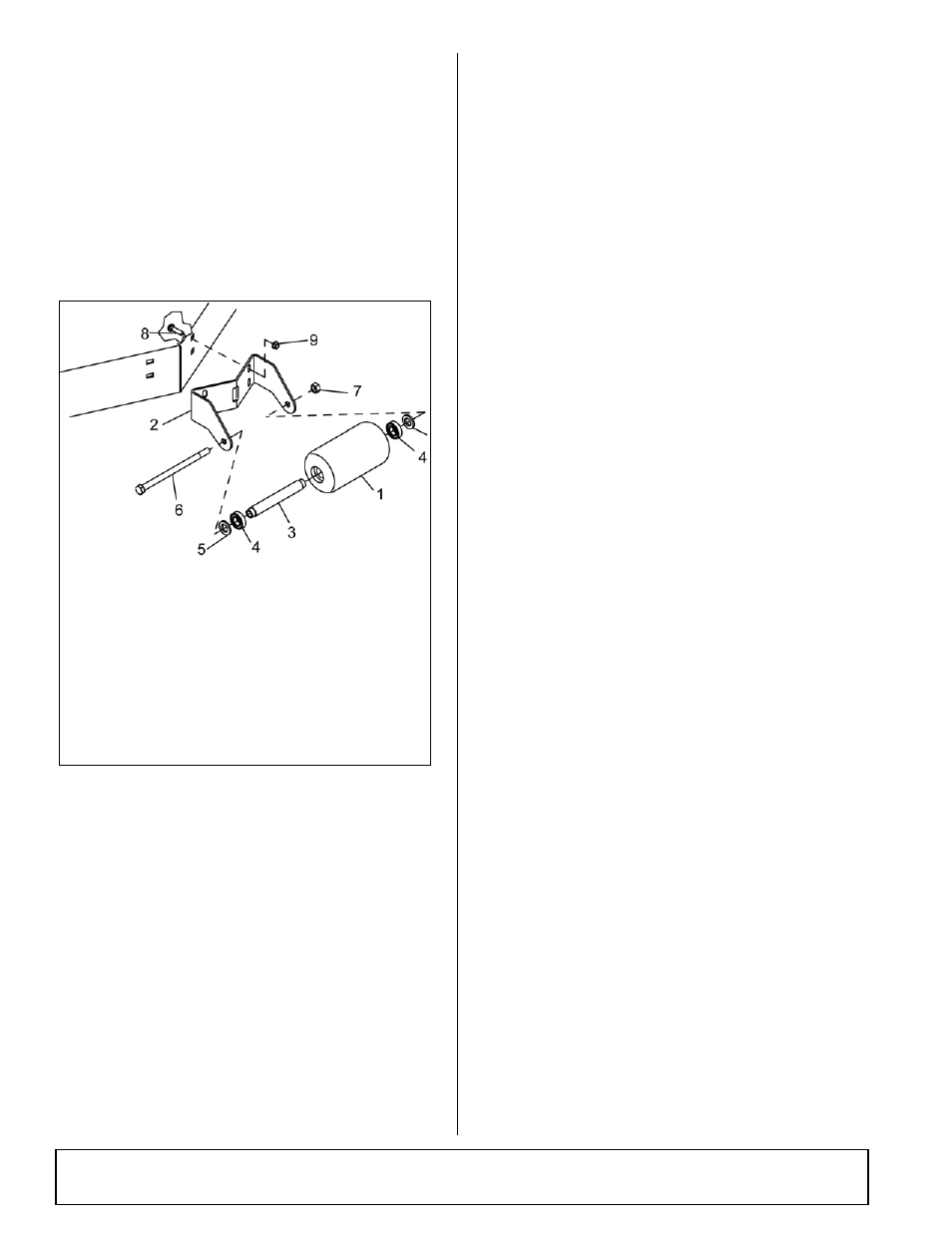

Figure 29. Front Roller Installation
NOTES
CD6310
1. Roller
2. Roller bracket
3. Spacer
4. Bearing
5. 1/2 Flat washer SAE
6. 1/2 NC x 9 HHCS GR5
7. 1/2 NC Flanged locknut
8. 3/8 NC x 1-1/4 Carriage bolt
9. 3/8 NC Flanged locknut
