40 Parts
MAN0260 (8/6/2004)

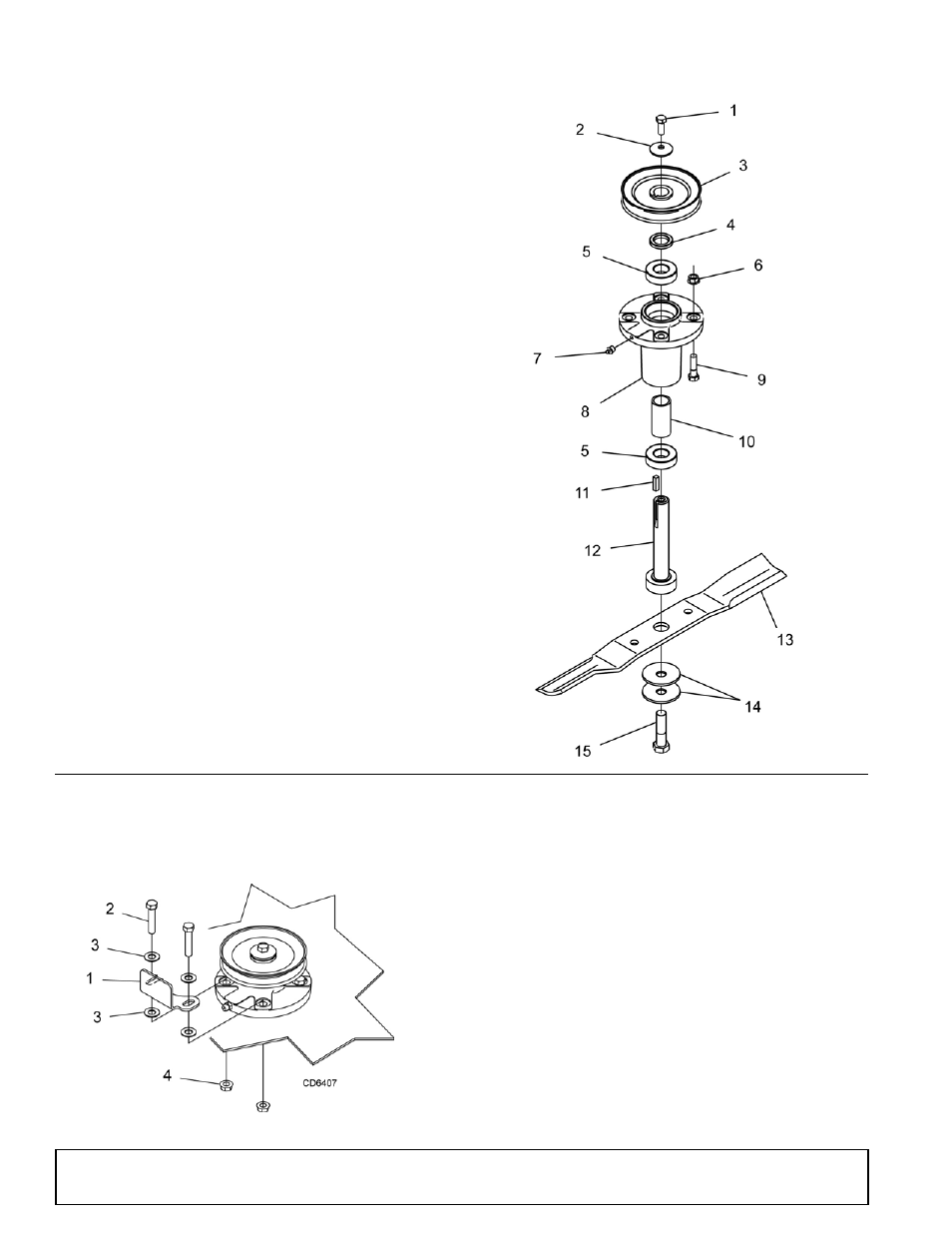

RDC54, RD60 & RD72 BLADE & SPINDLE ASSEMBLY
RDC54, RD60, RD72 BELT GUIDE (OPTIONAL)
REF
PART
QTY
DESCRIPTION
A
1009080
1
Complete spindle assembly (includes
1, 2, 4, 5 through 12, 14 & 15)
1
64518
1
3/8 NF x 1 HHCS GR5
2
70005
1
Cup washer
3
1008059
1
Sheave (RDC54) -or-
3
1008057
1
Sheave (RD60) -or-
3
1008040
1
Sheave (RD72)
4
1008055
1
Spacer
5
72933
2
Spindle bearing
6
14350*
4
3/8 NC Flange locknut
7
1972*
1
1/4 Tapered grease fitting
8
1008053
1
Spindle housing
9
976*
4
3/8 NC x 1-1/2 HHCS GR5
10
1008052
1
Spacer
11
70072*
1
Square key
12
1008042
1
Shaft assembly
13
78127KT
1
Blade kit, high suction 18.7" (includes
3 blades)(RDC54) -or-
13
1001513KT
1
Blade kit, high suction 21" (includes 3
blades)(RD60) -or-
13
1008199KT
1
Blade kit, high suction 25" (includes 3
blades)(RD72)
14
10635
2
Cup washer
15
1008095
1
5/8 NF x 2 HHCS GR5
*
Standard Hardware - Obtain Locally
REF
PART
QTY
DESCRIPTION
A
1008181
1
Belt guide kit
1
N/A
1
Belt guide
2
3231*
2
3/8 NC x 2 Cap screw GR5
3
21575*
4
3/8 SAE Flat washer
4
14350*
2
3/8 NC Flange lock nut (not included)
