tools Needed:
Top brackets
Power Drill
7/16” Socket
Driver

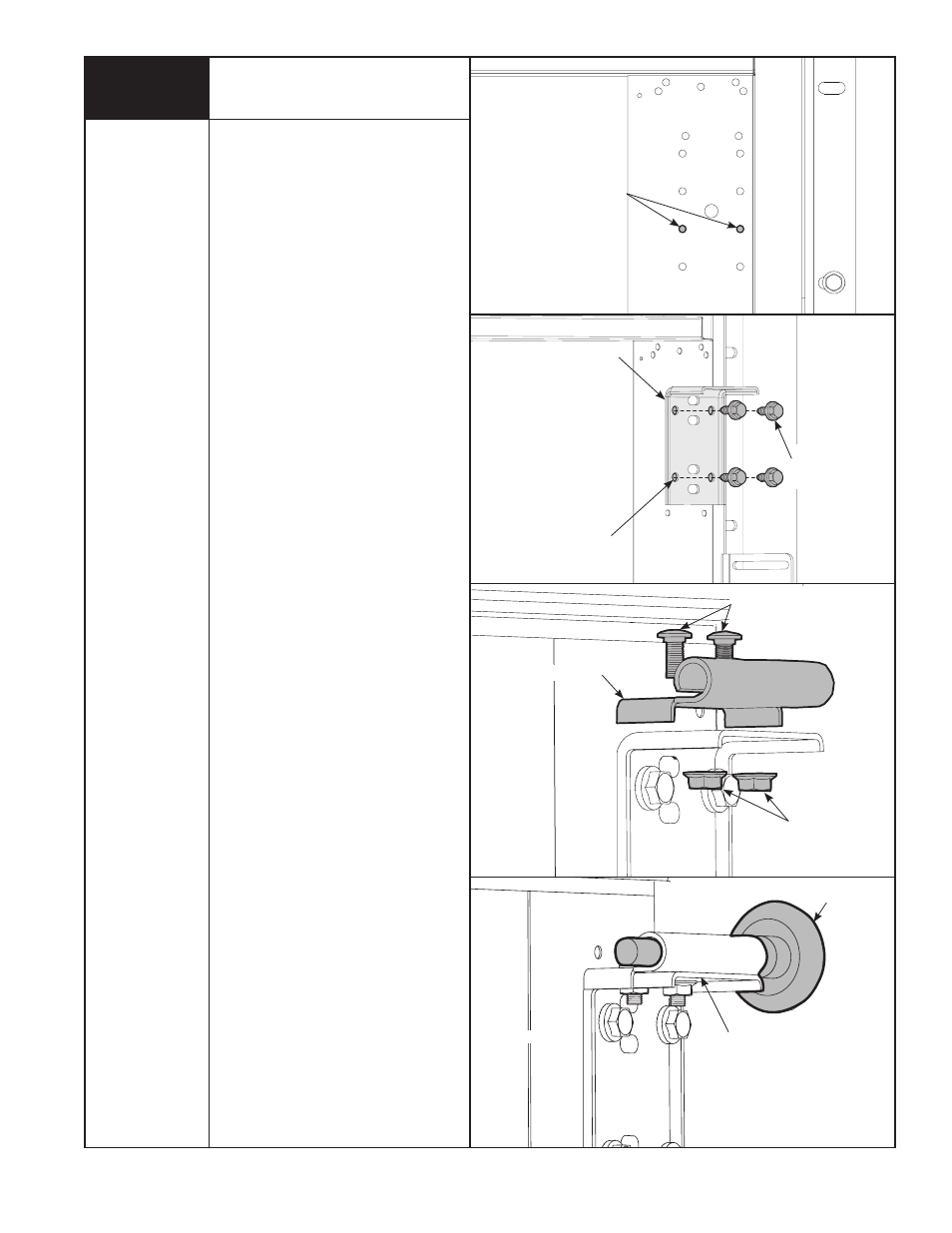

to install the l-shaped top brackets,
align the bottom holes in the top
bracket base with the second set of
holes from the end cap.
fasten using (4) 1/4”- 14 x 5/8” self
tapping screws. Secure the top bracket
slide to the bracket base loosely using
(2) 1/4”- 20 x 5/8” carriage bolts and
(2) 1/4”- 20 flanged hex nuts.
the top bracket slide will be tightened
and adjusted in Step 11. Insert rollers
into top bracket slide. Repeat for other
side.
7
(4) 1/4”- 14 x 5/8”
SElf taPPING
SCREWS
tOP bRaCkEt baSE
tOP bRaCkEt SlIDE
(2) 1/4”- 20
flaNGE hEx
NutS
ROllER
tOP bRaCkEt SlIDE
tOP SECtION
tOP SECtION
tOP SECtION
(2) 1/4”- 20 x 5/8”
CaRRIaGE bOltS
2ND SEt Of hOlES
fROM bOttOM
2ND SEt Of hOlES
fROM bOttOM
