Wayne-Dalton TORSION SPRING 9800 User Manual
Page 11
Please Do Not Return This Product To The store. Call us Directly! Our trained technicians Will answer your questions and/or Ship any Parts
you May Need. you can reach us toll free at
1-888-827-3667 for Consumer assistance or online at www.wayne-dalton.com
11
tools Needed:
Installation
1
IMPORTANT: REaD INStRuCtIONS tItlED “P4” “REMOVING thE OlD DOOR” ON PaGE 9 aND “P5” “PREPaRING thE OPENING” ON
PaGE 10 bEfORE attEMPtING DOOR INStallatION.
IMPORTANT: StaINlESS StEEl OR Pt 2000 COatED laG SCREWS MuSt bE uSED WhEN INStallING CENtER bEaRING bRaCkEtS,
END bRaCkEtS, jaMb bRaCkEtS, OPERatOR MOuNtING/SuPPORt bRaCkEtS aND DISCONNECt bRaCkEtS ON tREatED luMbER
(PRESERVatIVE-tREatED). StaINlESS StEEl laG SCREWS aRE NOt NECESSaRy WhEN INStallING PRODuCtS ON uNtREatED
luMbER.
NOTE: It is recommended that 5/16” x 2” lag screws be pilot drilled using a 3/16” drill bit, and 1/4” x 2” lag screws and 1/4” x 1-1/2”
lag screws be pilot drilled using a 1/8” drill bit, prior to fastening.

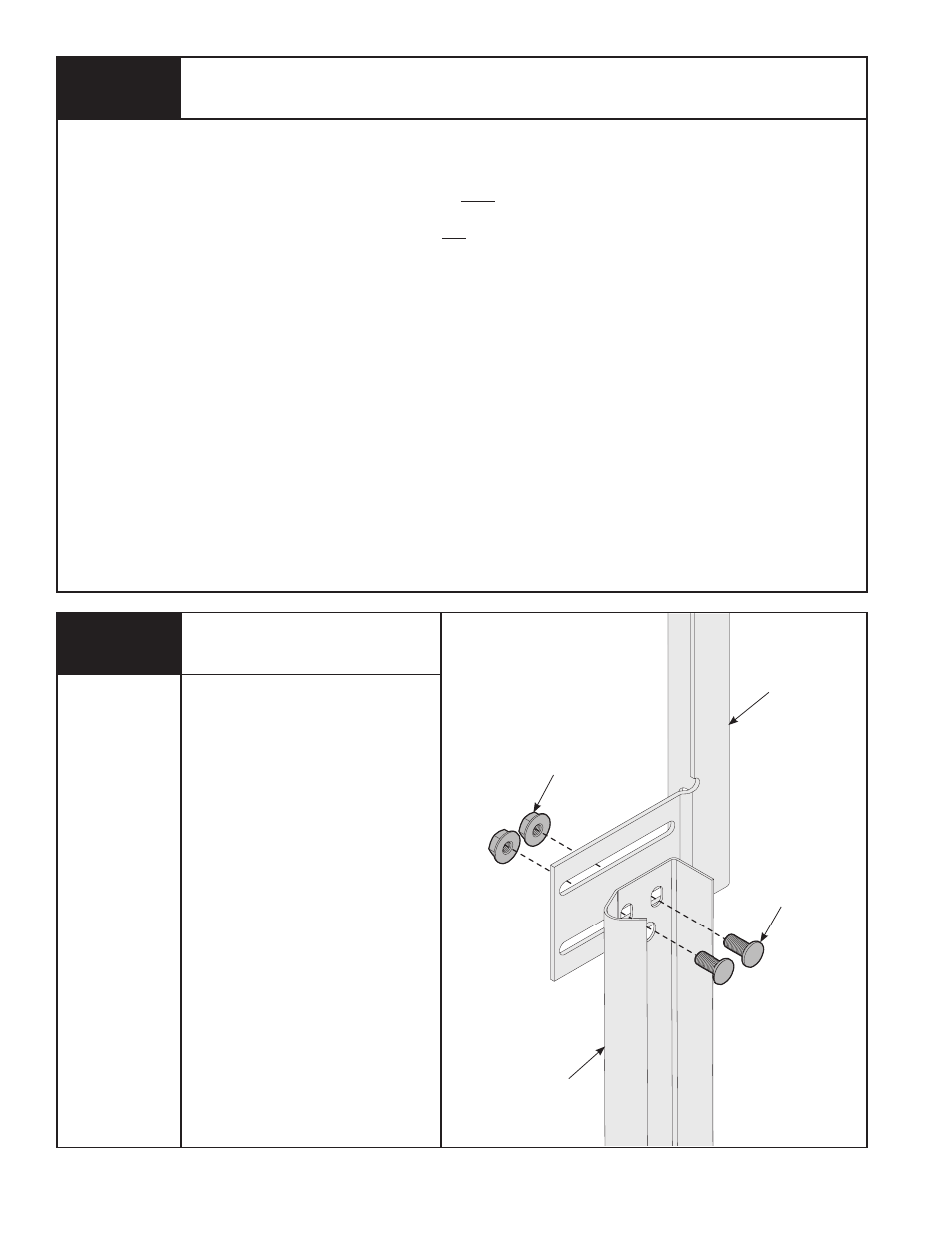

Attaching fully Adjustable
flagangle to vertical Track
None
hand tighten the flagangle to the
vertical track using (2) 1/4”- 20 x 5/8”
carriage bolts and (2) 1/4”- 20 flange
hex nuts. Secure the flange nuts after
flagangle spacing is complete (Step 9).
(2) 1/4”- 20 x 5/8”
CaRRIaGE bOltS
(2) 1/4”- 20
flaNGE hEx NutS
fully
aDjuStablE
flaGaNGlE
VERtICal
tRaCk
