PRODUCT SPECIFICATIONS
GASOLINE 1.25 GALLONS
CAPACITY UNLEADED
AND TYPE: REGULAR
OIL TYPE SAE 30(ABOVE 32°F)
(API-SF/SG/SH): SAE 5W-30
(Below 32°F)
OIL CAPACITY: 1.0 QT.
SPARK PLUG: CHAMPION
(GAP: .030”) RN4C
VALVE INTAKE: .005”-.007”
CLEARANCE: EXHAUST:.009”-.011”
GROUND SPEEDFORWARD:
(MPH): 1ST 1.1
2ND 2.2
3RD 3.3
4TH 4.4
5TH 4.9
REVERSE: 1.42
TIRE FRONT: 14 PSI
PRESSURE: REAR: 12 PSI
CHARGING 9 AMPS@3600 RPM
SYSTEM:
BATTERY: AMP/HR: 25
MIN. CCA: 190
CASE SIZE:U1R
BLADE BOLT 27-35 FT. LBS
TORQUE:
CONGRATULATIONS on your purchase
of a New Tractor. It has been designed,
engineered and manufactured to give
you the best possible dependability and
performance.
Should you experience any problem you
cannot easily remedy, please contact
your nearest authorized service center.
We have competent, well-trained
technicians and the proper tools to
service or repair this tractor.
Please read and retain this manual. The
instructions will enable you to assemble
and maintain your tractor properly.
Always observe the “SAFETY RULES”.
WARNING: This tractor is equipped
with an internal combustion engine and
should not be used on or near any
unimproved forest-covered, brush-
covered or grass-covered land unless the
engine’s exhaust system is equipped with
a spark arrester meeting applicable local
or state laws (if any). If a spark arrester
is used, it should be maintained in
effective working order by the operator.
In the state of California the above is
required by law (Section 4442 of the
California Public Resources Code).
Other states may have similar laws.
Federal laws apply on federal lands. A
spark arrester for the muffler is available
through your nearest authorized service
center/Department (See REPAIR PARTS
section of this manual).
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in maintain-
ing, caring for and using your tractor.
• Follow the instructions under “Mainte-
nance” and “Storage” sections of this
owner’s manual.
44

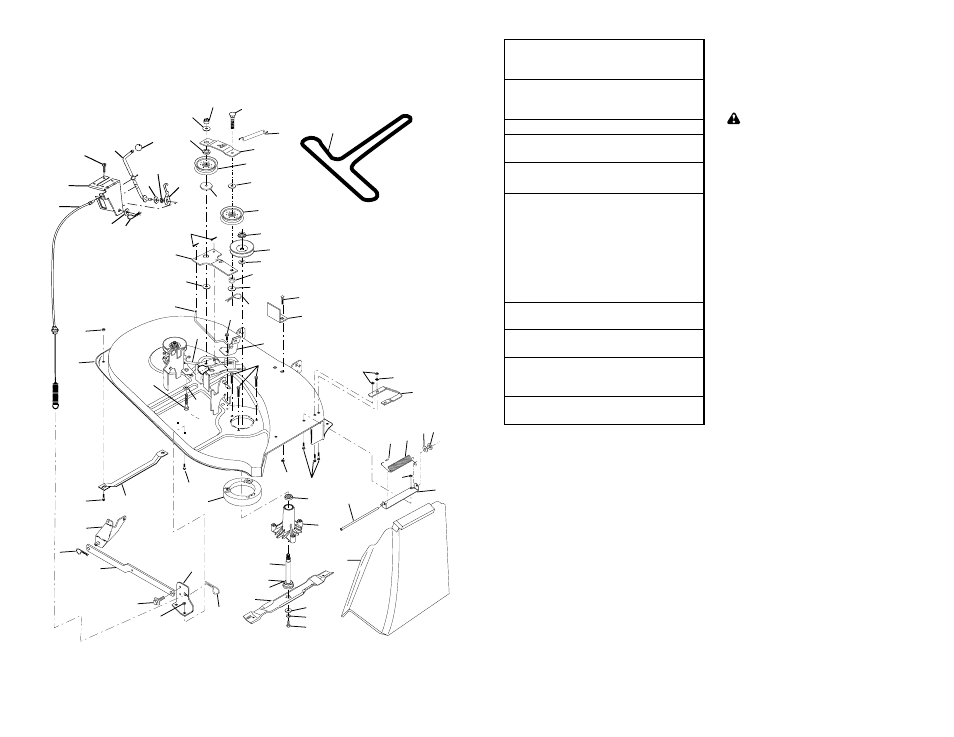

TRACTOR -- MODEL NUMBER 259723
