16
MAINTENANCE
BEFORE EACH USE
T
R
A
C
T
0
R
Adjust Motion Drive Belt(s) Tension
Inspect Muffler/Spark Arrester
Lubrication Chart
Check Brake Operation
Clean Air Filter
Change Engine Oil
Replace Air Filter Paper Cartridge
Replace Spark Plug
Check Battery Level
Check Tire Pressure
Clean Battery and Terminals
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE

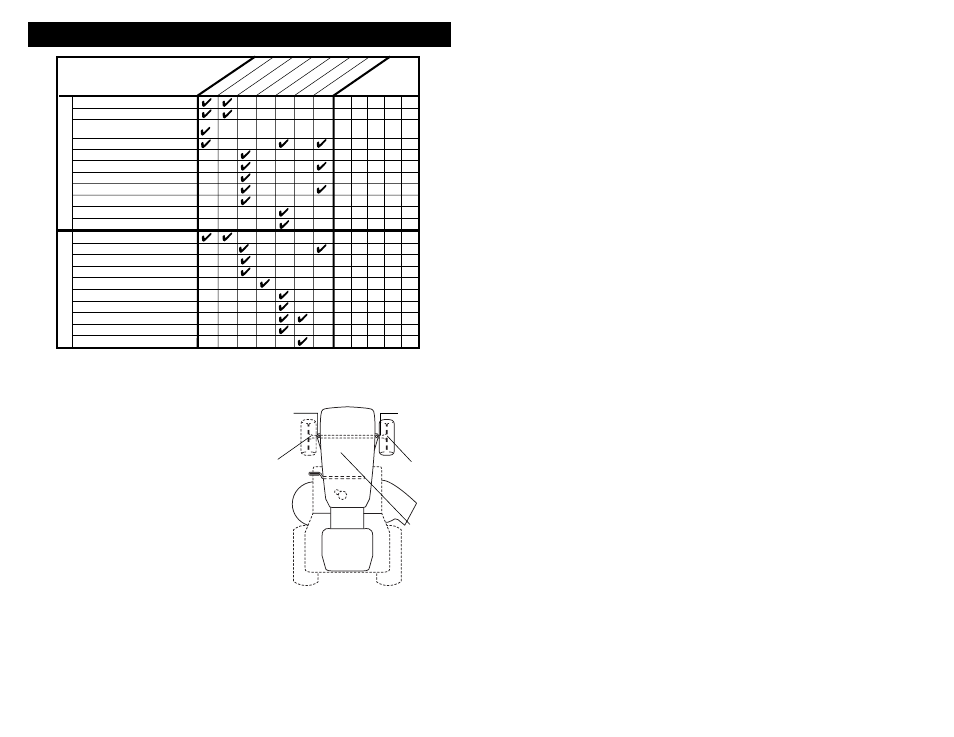

MAINTENANCE SCHEDULE
EVERY 8 HOURS EVERY 25 HOURS EVERY 50 HOURS EVERY 100 HOURS EVERY SEASON SERVICE DATES
Check for Loose Fasteners
BEFORE STORAGE
Check Engine Oil Level
Clean Engine Cooling Fins
Sharpen/Replace Mower Blades
Check Operator Presence and
Interlock Systems
Clean Air Screen
1 - Change more often when operating under a heavy load or in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.
3 - If equipped with oil filter, change oil every 50 hours.
4 - Replace blades more often when mowing in sandy soil.
E
N
G
I
N
E
Replace Oil Filter (If equipped)
Check Transaxle Cooling
Adjust Blade Belt(s) Tension
Replace Fuel Filter
1
4
2
2
2
2
5 - If equipped with adjustable system.
6 - Not required if equipped with maintenance-free battery.
7 - Tighten front axle pivot bolt to 35 ft.-lbs. maximum.
Do not overtighten.
1,
1 2,3 ,
2
5
5
6
7
LUBRICATION CHART
➀ Spindle
Zerk
➀ Front Wheel
Bearing
Zerk
➀ SAE OR 10W30 MOTOR OIL
➁ REFER TO MAINTENANCE “ENGINE”
SECTION
IMPORTANT: Do not oil or grease the
pivot points which have special nylon
bearings. Viscous lubricants will attract
dust and dirt that will shorten the life of
the self-lubricating bearings. If you feel
they must be lubricated, use only a dry,
powdered graphite type lubricant
sparingly.
➀ Front Wheel
Bearing Zerk
➁ Engine
GENERAL RECOMMENDATIONS
The warranty on this tractor does not
cover items that have been subjected to
operator abuse or negligence. To
receive full value from the warranty,
operator must maintain tractor as
instructed in this manual.
Some adjustments will need to be made
periodically to properly maintain your
tractor.
All adjustments in the Service and
Adjustments section of this manual
should be checked at least once each
season.
• Once a year you should replace the
spark plug, clean or replace air filter,
and check blades and belts for wear.
A new spark plug and clean air filter
assure proper air-fuel mixture and
help your engine run better and last
longer.
BEFORE EACH USE
• Check engine oil level.
• Check brake operation.
• Check tire pressure.
• Check operator presence and
interlock systems for proper operation.
• Check for loose fasteners.
➀ Spindle
Zerk
33
TRACTOR -- MODEL NUMBER 259723
CHASSIS AND ENCLOSURES
NOTE: All component dimensions given in U. S.
inches 1 inch = 25/4 mm
KEY PART
NO. NO. DESCRIPTION
1 169831 Chassis Lt Stamping
2 169061 Drawbar
3 17060612 Screw 3/8-16 x 3/4
5 155272 Bumper Hood/Dash
6 155924X012 Saddle SLKSCRE FLT SDL
8 155138 Clip Retainer Slide-on
9 168347X011 Dash Slkscr Plm Mech Sym
10 72140608 Bolt RdHd Sqnk. 3/8-16 x 1
11 155927 Panel Asm. Dash Lh
12 145660 Clip Tinnerman Grille P/L
13 172107X010 Panel Dash Rh
15 74180512 Screw Mach Trhd 5/16-18unc x 3/4
16 73510500 Nu Keps 5/16-18unc
17 159639X550 Hood Pnt Steel Private Label
18 126938X Bumper Hood
24 74780616 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
25 19131312 Washer 13/32 x 13/16 x 12 Ga.
26 73800600 Nut Lock Hex w/Ins 3/8-16 Unc
28 157373 Grill Private Lable Blk
29 140273X599 Lens Grille Private label
30 169465X550 Fender Pnt
31 136619 Bracket Fender Support
33 145476X550 Footrest Pnt. Lh
34 145475X550 Footrest Pnt. Rh
35 72110606 Bolt RdHd Sht. Sqnk. 3/8-16 x 3/4
37 17490508 Screw Thdrol 5/16-18 x 1/2 Tyt
38 169834 Bracket Asm. Pivot Mower Rear
51 73800400 Nut Lock Hex W/Ins. 1/4-20
52 19091416 Washer 9/32 x 7/8 x 16 Ga.
53 144697 Bracket Grille LH
54 161464 Screw Hex Wshd #8-18 x 7/8
55 144696 Bracket, Grille RH
57 74780412 Bolt Fin Hex 1/4-20 x 3/4
145 156524 Rod Pivot Chassis /Hood
206 170165 Bolt Shoulder 5/16-18 TT
208 17670608 Screw Thdrol 3/8-16 x 1/2
209 17000612 Screw Hex Wsh Thdrol 3/8-16 BL
- - 5479J Plug Button Blk .359 Dia. Choke
